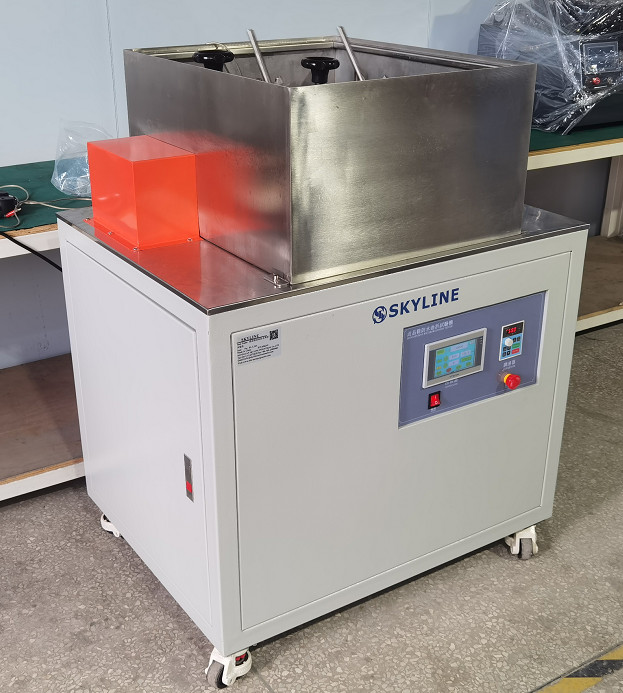

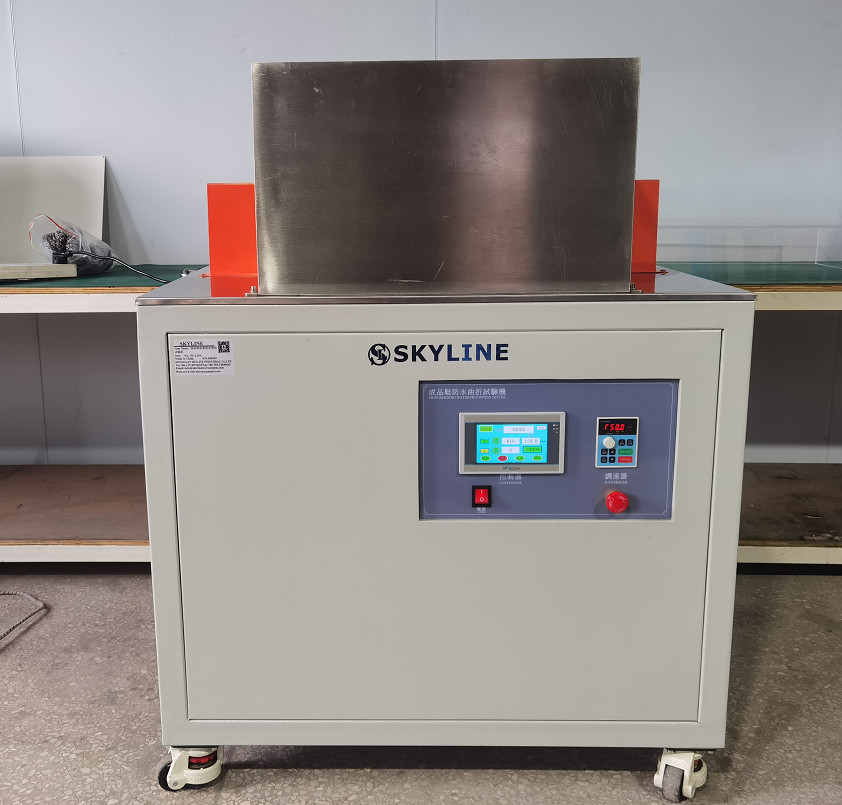

Waterproof Tortuous Testing Machine For Finished Shoes SATRA TM77 EN 20344

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-L24A
Minimum Order Quantity 1
Price negoitable
Packaging Details Plywood case
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 1 unit/Month
Product Details
Bending Angle: Adjustable From 0 To 90° Bending Speed: Adjustable From 0 To 120r/min
Test Position: 2 Pcs Counter: PLC Touch Screen
Test Standard: SATRA TM77 Power: AC220V,400W
Product Description

Machine Introduction:


The finished shoes are installed on the waterproof and zigzag testing machine of the finished shoes. Through the waterproof and zigzag testing machine of the finished shoes, the zigzag part of the tested shoes is driven to the zigzag Angle matching the shoe type and the fixed rate of the zigzag machine. The zigzag of the finished shoes waterproof and zigzag testing machine is carried out repeatedly in the sink equipped with a certain depth and the water is dyed. Until the finished shoe water or reach the pre-set number of twists and turns. To complete the number of twists and turns of no water into the inside of the finished shoe or the size of the water penetration area of the finished shoe after the completion of the specified twists and turns to evaluate the waterproof and permeability resistance of the finished shoe under the zigzagging condition.


Test Standard


Meets SATRA TM77 and other standards.


Technical Parameters


1. Bending Angle: 0 ~ 90° adjustable.


2. Zigzag speed: 0 ~ 120r/min adjustable.


3. Test quantity: 2 finished shoes can be tested at the same time.


4. Count: PLC touch screen display.


5. Volume: (80x59x110) cm.


6. Weight: about 138kg.


7. Power supply: AC220V,400W
