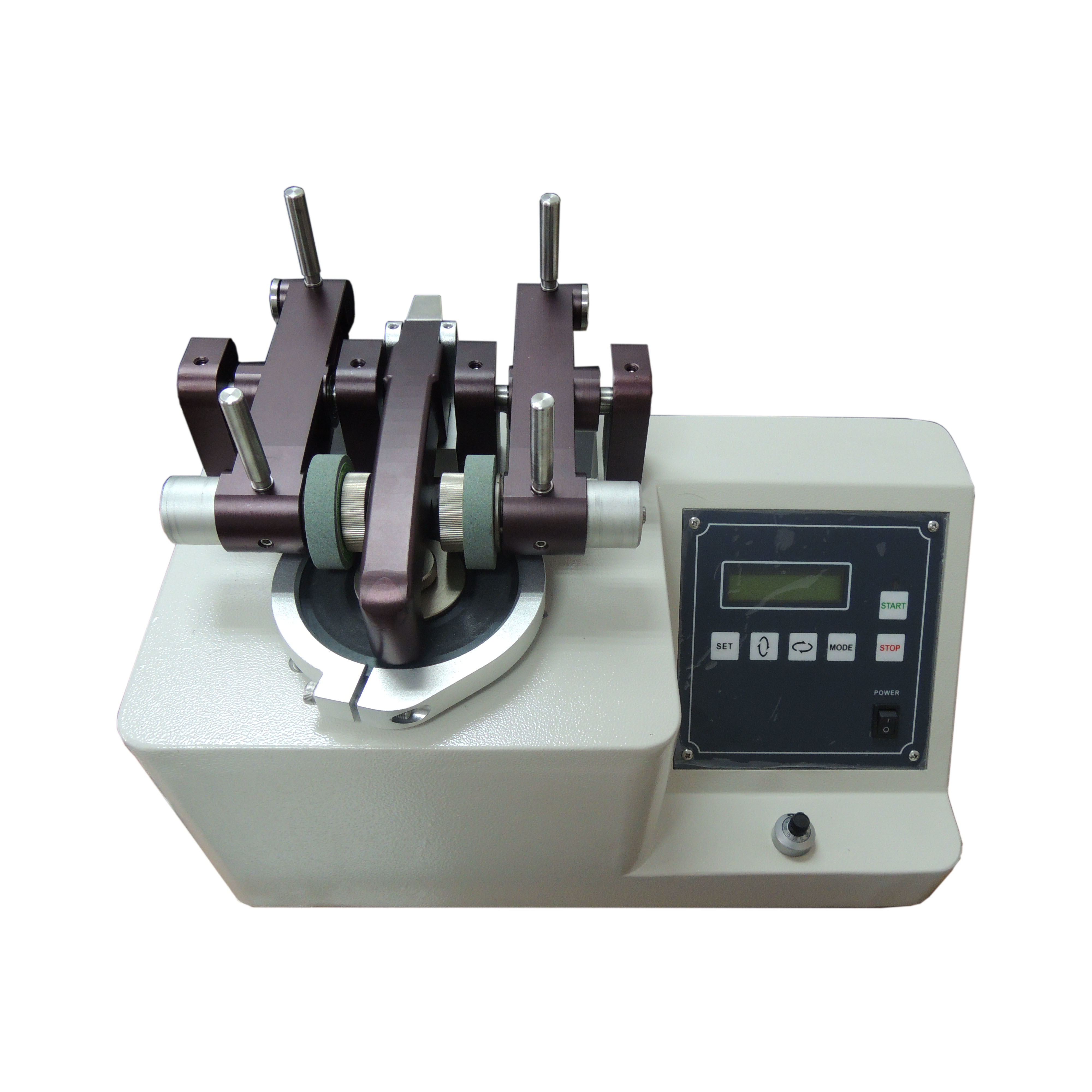

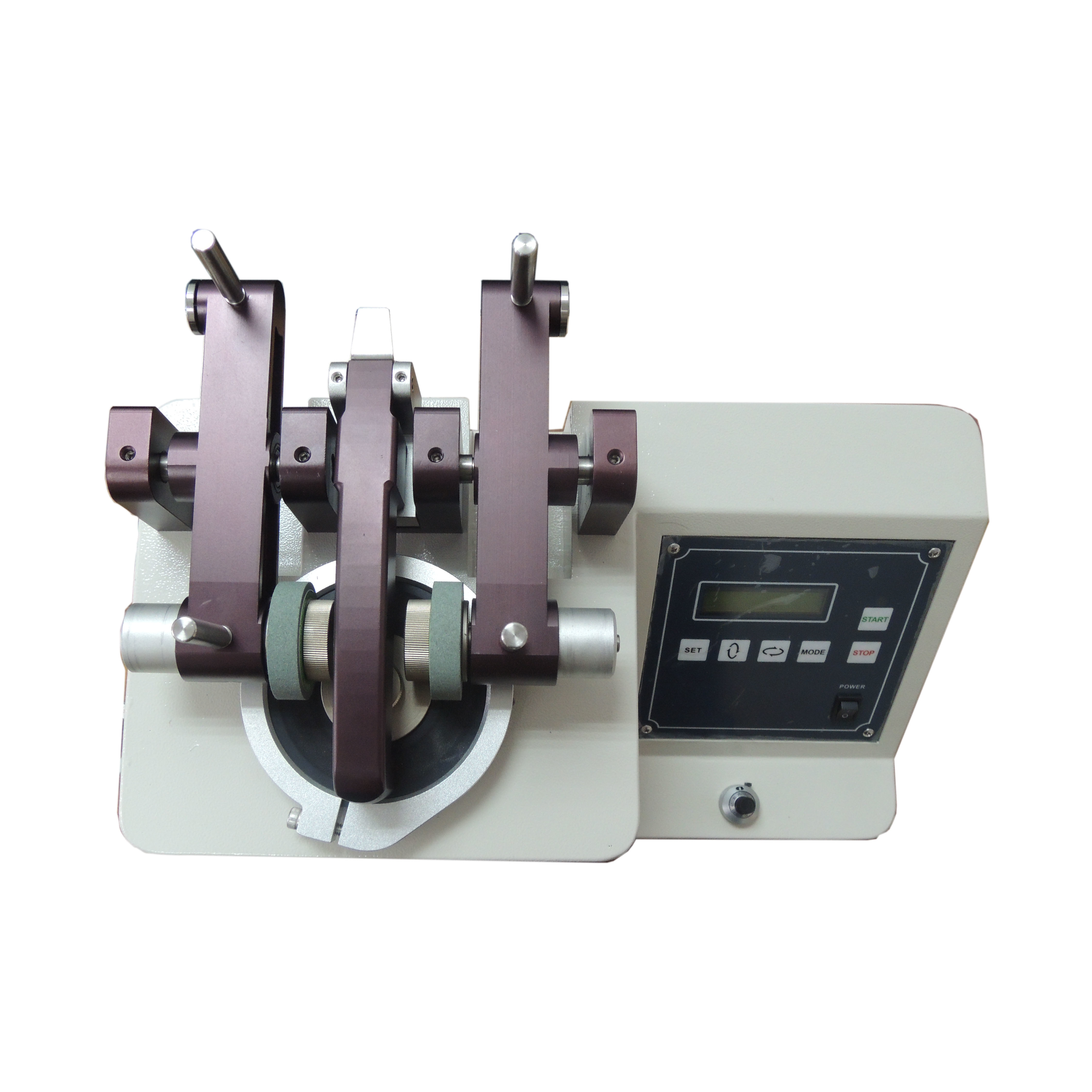

Footwear Testing Equipment DIN-53754 Digital DisplayTaber Abrasion Tester
Application
This tester applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be removed after rotation to reach a certain number, observe the condition of the specimen or compare the weight with the previous material's, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.
Applicable industry
It is used in testing the performance of leather products, such as suitcases, carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research laboratories; Commodity inspection, arbitration, and technical supervision departments,
The formula is
abrasive index formula: × 1000
Testing reference
Paint brick plywood plastic
CS10
CS17 CS17 S32
S33 CS17
H18H22
Machine Specification
| Specimen |
120 × 6.5 × 3mm |
| Load |
250g, 500g, 1000g |
| Counter |
6 digit electronic display, automatic shut down |
| Testing Disk Speed |
0-70 Adjustable |
| Machine Dimensions |
30 × 43 × 30cm |
| Machine Weight |
30kg |
| Attachment |
A wrench, a group of grinding wheel, Fama (250g, 500g, 750g) each 2 PCS. Vacuum cleaner 1. |
| Power Supply |
AC220V/50Hz |
| Abrasion Wheel Diameter |
52.4mm |
| Weights |
250g, 750g, 1000g |
| Gyration Speed |
60 ~ 72+/-2rpm |
| Counter |
LCD display 0-999999 |
|
Standards
|
DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470
|
