Footwear Torsion Testing Machine Whole Shoes Torsion Test Equipment

Name: Footwear Torsion Testing Machine Whole Shoes Torsion Test Equipment
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T12S
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CN

Brand Name: SKYLINE

Certification: CE

Model Number: SL-T12S

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 15 work days

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Whole Shoes Torsion Testing Machine, Footwear Torsion Testing Machine


Test Capacity:	50N • M	Power Resolution:	1 / 50,000
Control System:	PLC Control	Heel Lifting Angle:	25 ± 0.5 ° (0 ~ 40 ° Can Be Set)
Torsion Angle:	~ ± 40 ° Can Be Set	Angle Resolution:	0.1 °
Speed:	0 ~ 5rad / Min Can Be Set	Volume:	1360 × 440 × 900mm
Weigh:	65kg	Power Supply:	220V 50Hz

Test Capacity:	50N • M
Power Resolution:	1 / 50,000
Control System:	PLC Control
Heel Lifting Angle:	25 ± 0.5 ° (0 ~ 40 ° Can Be Set)
Torsion Angle:	~ ± 40 ° Can Be Set
Angle Resolution:	0.1 °
Speed:	0 ~ 5rad / Min Can Be Set
Volume:	1360 × 440 × 900mm
Weigh:	65kg
Power Supply:	220V 50Hz

Product Description

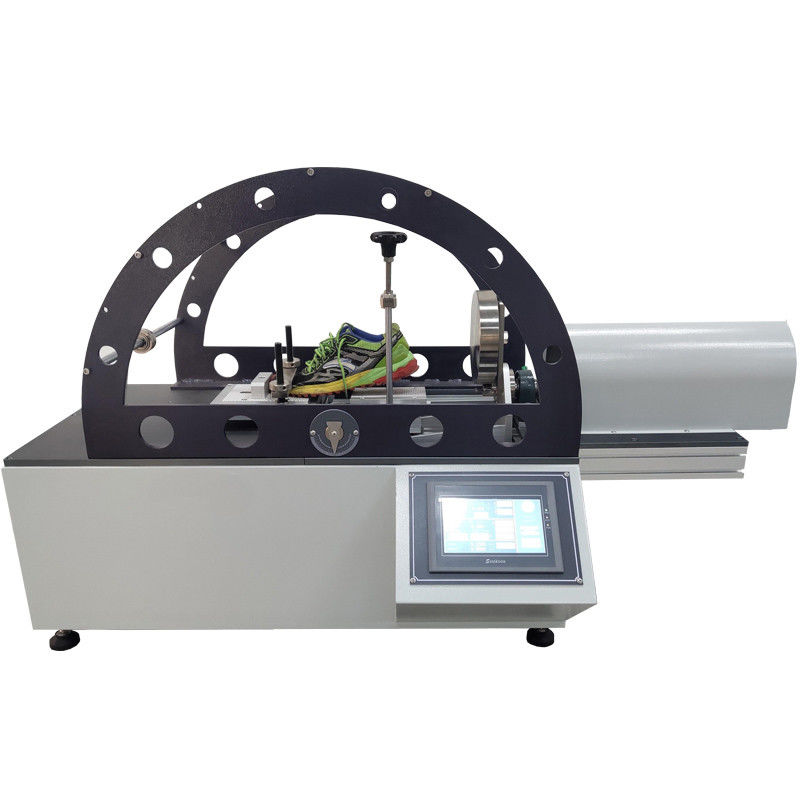

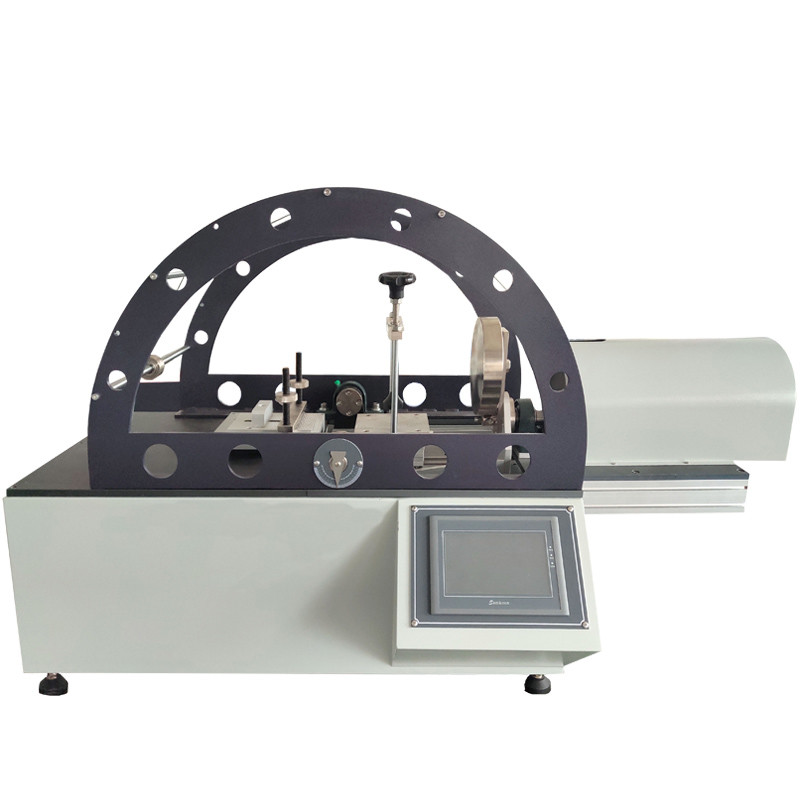

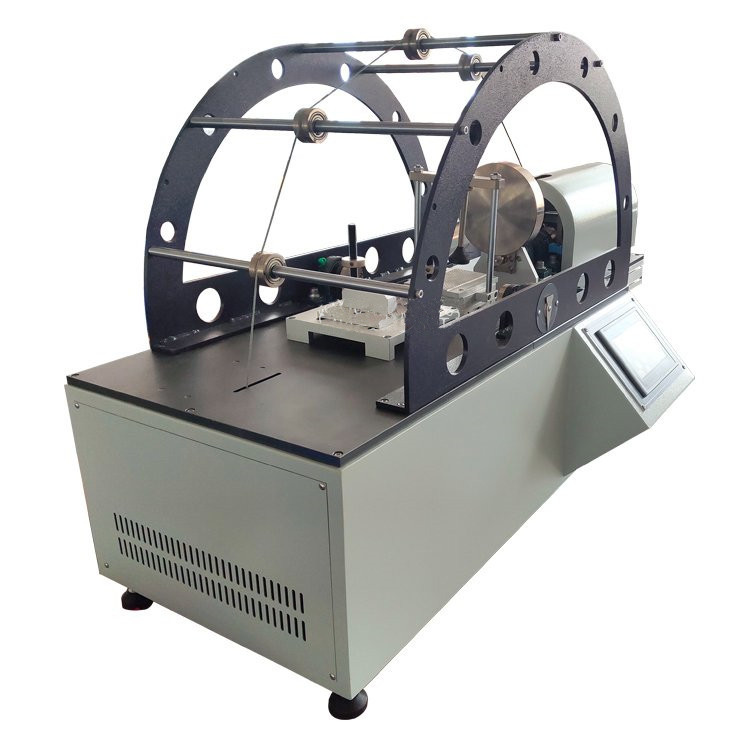

Footwear Torsion Testing Machine

Product introduction

This machine is mainly used to test all kinds of torsional strength tests of finished shoes.

lFix the sole on the test platform, adjust the position of the platform, use manual positioning to lift the shoe to a certain angle, and then twist the shoe to test the maximum torque experienced by the shoe during the test again.

Standard

GB/T 32024-2015.

Technical parameter

Test capacity	50N • m
Resolution	1 / 50,000
Control system	PLC control
Heel lifting angle	25 ± 0.5 ° (0 ~ 40 ° can be set)
Torsion angle	0 ~ ± 40 ° can be set
Angle resolution	0.1 °
Speed	0 ~ 5rad / min can be set
Volume	1360 × 440 × 900mm
Weight	65kg
Power supply	220V 50Hz
