ISO 20344 Footwear Compression Testing Machine , Safety Shoes Puncture Resistance Test
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL-L19
SKYLINE:
Footwear Compression And Puncture Resistant Tester
Sensor Capacity:
20KN
Load Resolution:
1/20000
Accuracy:
Within 1%
Compression Speed:
5 ± 2mm/min
Weight:
148kgs
Highlight:
rub resistance tester
,shoe wear tester
Product Description

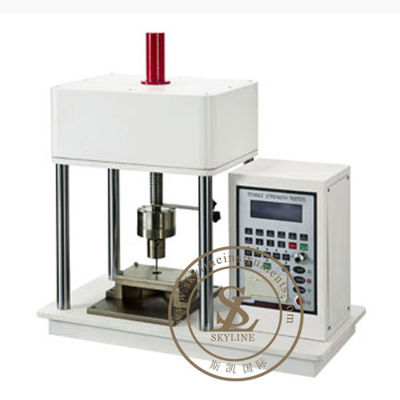

ISO 20344 Footwear Testing Equipment Safety Shoes Compression Puncture Resistant Tester
Product introduction
Safety Shoes Compression Puncture Resistant Tester is used to measure the compression strength for safety shoes steel head and puncture-resistant performance for steel plate. It Suitable for all types of steel head compression for safety shoes and puncture-resistant test for steel plate,and to prevent the injury of accident to operator in the workplace by wearing owing to the security of shoe
It is used to determine the safety footwear ability to resist the compression
Test method: place the safety shoe on the right position, then add certain strength, and then check the degree of the subsidence in order to know about safety.
Specification
| Sensor capacity | 20KN |
| Load resolution | 1/20000 |
| Accuracy within | 1% |
| Display system English controller | |
| Compression speed | 5 ± 2mm/min |
| Motor AC motor, control system | |
| Measuring fixture compression/puncture fixture | |
| Dimension | 82*58*71cm |
| Weight | 148kg |
| Power | AC220V 50HZ 0.4KW |
Test Standards
ISO 20344 ANSI Z41 LD50,A EN12568；ANSI；JIS；CSA；
