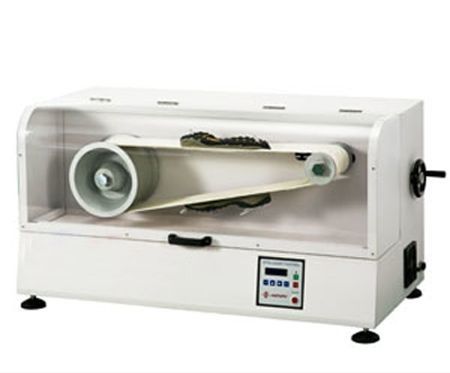

Outsole Belt Flexing Tester is Designed for Flexing Outsoles
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 work days |
| Payment Method: | Western Union, MoneyGram, T/T |
Detail Information
Place of Origin
CN
Brand Name
SKYLINE
Certification
CE
Model Number
SL-L25
SKYLINE:
Outsole Belt Flexing Tester
Belt Size:
Length: 1930±50mm Width: 140±5mm
Rotating Speed Of Sack:
90±8 Cycles/min
Sampling:
MAX.6 Pcs
Counter:
LCD 0~999,999
Dimension （W×D×H）:
131 Cm ×82cm ×69cm
Weight (Approx):
170kg
Power:
AC220V 50Hz/60Hz (specified By User)
Highlight:
abrasion resistance tester
,shoe wear tester
Product Description
Product information
This machine is designed for flexing outsoles. It tests the specimen by simulating a personal walking in a normal way so as to determine the resistance of the specimen to flex. Users can set the number of tests themselves, and it will stop automatically when the number of tests has been reached. More than one specimen can be tested once in order to enhance work efficiency.
Technical parameters
| Belt Size | Length: 1930±50mm Width: 140±5mm |
| Rotating Speed of Sack | 90±8 cycles/min |
| Sampling | MAX.6 pcs |
| Counter | LCD 0~999,999 |
| Motor AC | 1/2HP variable freq. motor |
| Dimension (W×D×H) | 131 cm ×82cm ×69cm |
| Weight (Approx) | 170kg |
| Power | AC220V 50Hz/60Hz (specified by user) |
