Permanent Compression Test Equipment / Deformation Tester For Rubber Static Test
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | Carton box |
| Delivery Period: | 5 work days |
| Payment Method: | Western Union, MoneyGram, T/T |
Detail Information
Place of Origin
CN
Brand Name
SKYLINE
Certification
CE
Model Number
SL-LC68
SKYLINE:
Deformation Tester
Volume:
20 × 12 × 10cm
Weight:
11KG
Foam Plastic:
50 × 50 × 25mm
Test Pieces:
Rubber φ28.68, 12.7mm
Standards:
CNS-3560,10487, JIS-K6301, ASTM-D395, GB-7759
Highlight:
abrasion resistance tester
,rub resistance tester
Product Description

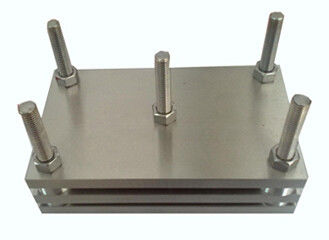

Permanent Compression Test Equipment / Deformation Tester For Rubber Static Test Product introduction Permanent Compression Tester is for Rubber Static Compression Test
Permanent compression of the degree of distortion tester to take the standard test pieces, sandwiched between the flat panel, the screw rotation, compression to a certain rate, and then into a certain temperature of the oven (optional), after the specified time to remove, remove Test pieces, cooling for 30 minutes, measuring the thickness, into the formula for compression distortion.
Clamp specimens between metal plates by tighten nuts to apply a certain pressure for a required period,
place the device with specimen in a oven with required temperature for a required period, specimens were taken out and cooled for 30 minutes,
the final thickness is measured for calculating the recovery performance of specimen.
Specification
| Test pieces | rubber φ28.68, 12.7mm (D) foam plastic 50 × 50 × 25mm |
| Volume | 20 × 12 × 10cm |
| Weight | 11kg |
Standards
CNS-3560,10487, JIS-K6301, ASTM-D395, GB-7759
