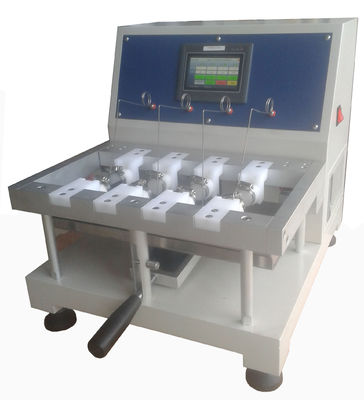

PLC Controlled Leather Testing Equipment Bally Leather Dynamic Waterproof Tester
Product introduction
Used to test the leather, artificial leather, fabric water permeability, the use of flexing action to test the material penetration index.
Application
This tester is applied to do the waterproof test for leather, leather of imitation, cloth and others, the testing at the environment which surrounded the water and imposed the reverse, From that can measure the material index of resistant penetration.
Test method
Test method using clean steel beads placed in the material wrapped in the ball itself, the impedance and the total weight, must meet the requirements, under this condition measured material twists and turns waterproof penetration index, using the latest sensor components and special design, the test as long as the material Wrap water infiltration immediately stops automatically counting or when the set time (number of tests) arrives, it automatically stops and displays the time or number of times. With power off memory function.
Technical Parameters
| Number of tests | 4sets |
| Counter | LCD 0 ~ 999,999 |
| Test speed | 90 ± 5cpm |
| Swing angle | 30 ± 1 |
| Two V-type fixture spacing | 60 ± 1mm |
| Controller | PLC system touch screen control |
| Weight | 55kg |
| Power supply | AC220V 50HZ |
| Volume | 71 * 60 * 55cm |
