Rubber / Foam / Sponge Permanent Compression Tester / ASTM D3574 / ISO 1856
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash |
| Supply Capacity: | 30 unit / month |
ASTM D3574 Permanent Compression Tester
,ISO 1856 Permanent Compression Tester
,Foam Permanent Compression Tester
Product introduction

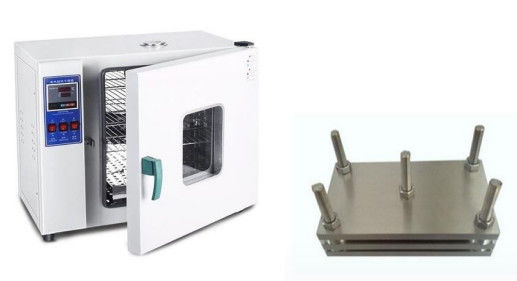

Permanent Compression Tester is for Rubber Static Compression Test Permanent compression of the degree of distortion tester to take the standard test pieces, sandwiched between the flat panel, the screw rotation, compression to a certain rate, and then into a certain temperature of the oven (optional), after the specified time to remove, remove Test pieces, cooling for 30 minutes, measuring the thickness, into the formula for compression distortion. Clamp specimens between metal plates by tighten nuts to apply a certain pressure for a required period, place the device with specimen in a oven with required temperature for a required period, specimens were taken out and cooled for 30 minutes, the final thickness is measured for calculating the recovery performance of specimen.
Application
It is mainly used for baking, drying, heat treatment and thermal processing of items, agricultural production, scientific research, medical and health units, and laboratory experiments. It is suitable for drying, baking, baking, drying, baking, It is used for wax melting, sterilization, drying and disinfection, and can also be used for general constant temperature tests.
Test Standard
ASTM D 3574 Test D;
ASTM D 3574 Aging Test K;
ISO 1856
Technical parameters
| Temperature control range | 50℃-300℃ |
| Internal size | 35*35*35cm |
| Dimensions | 84*57*67cm |
| Volume | 136L |
| Internal Material | stainless steel |
| Power | 3000W |
| Timing range | 1-9999 minutes |
| Temperature fluctuation | ±1℃ |
| Temperature control accuracy | 1℃ |
| Temperature uniformity | ≤1℃ (the temperature deviation of different areas in the box under the empty box state) |
| Test pieces | rubber φ28.68, 12.7mm (D) foam plastic 50 × 50 × 25mm |
| Volume | 20 × 12 × 10cm |
| Weight | 11kg |
Product features
1. The shell adopts electrostatic spraying process, and the paint film is firm and beautiful.
2. 2. On the door roommate observation window, you can observe the heating condition of the work room at any time.
3. 3. Microcomputer intelligent PID control, dual-screen high-brightness digital display, clear and beautiful display, accurate and stable temperature control. With timing (0-9999min).
4. 4. The hot air circulation system is composed of a fan that can continuously operate at high temperature and is sealed, and the work chamber is evenly empty.
5. 5. The inner tank is made of galvanized sheet or stainless steel sheet, and the semi-circular arc four corners design is more convenient to use and clean.
6. 6. The door of the box is sealed with silicone strips for good sealing effect.
