Rubber / Foam / Sponge Permanent Compression Tester / ASTM D3574 / ISO 1856

Product Details

Place of Origin: China

Brand Name: Skyline

Certification: CE, Rosh, Calibration

Model Number: SL-T47

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash

Supply Ability: 30 unit / month

Get Best Price
Product Details
Highlight:

ASTM D3574 Permanent Compression Tester

,

ISO 1856 Permanent Compression Tester

,

Foam Permanent Compression Tester

Temperature Control Range:
50℃-300℃
Internal Size:
35*35*35cm
Dimensions:
84*57*67cm
Volume:
136L
Internal Material:
Stainless Steel
Power:
3000W
Timing Range:
1-9999 Minutes
Temperature Fluctuation:
±1℃
Temperature Control Accuracy:
1℃
Temperature Uniformity:
≤1℃ (the Temperature Deviation Of Different Areas In The Box Under The Empty Box State)
Temperature Control Range:
50℃-300℃
Internal Size:
35*35*35cm
Dimensions:
84*57*67cm
Volume:
136L
Internal Material:
Stainless Steel
Power:
3000W
Timing Range:
1-9999 Minutes
Temperature Fluctuation:
±1℃
Temperature Control Accuracy:
1℃
Temperature Uniformity:
≤1℃ (the Temperature Deviation Of Different Areas In The Box Under The Empty Box State)
Product Description

Product introduction

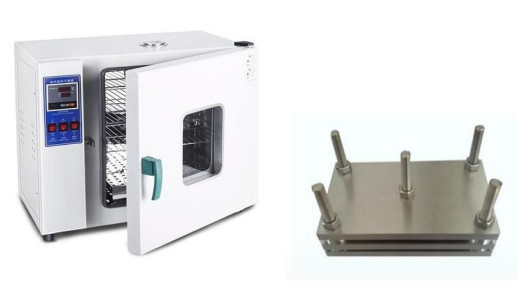

Permanent Compression Tester is for Rubber Static Compression Test

Permanent compression of the degree of distortion tester to take the standard test pieces, sandwiched between the flat panel, the screw rotation, compression to a certain rate, and then into a certain temperature of the oven (optional), after the specified time to remove, remove Test pieces, cooling for 30 minutes, measuring the thickness, into the formula for compression distortion.
Clamp specimens between metal plates by tighten nuts to apply a certain pressure for a required period,
place the device with specimen in a oven with required temperature for a required period, specimens were taken out and cooled for 30 minutes,
the final thickness is measured for calculating the recovery performance of specimen.



Application

It is mainly used for baking, drying, heat treatment and thermal processing of items, agricultural production, scientific research, medical and health units, and laboratory experiments. It is suitable for drying, baking, baking, drying, baking, It is used for wax melting, sterilization, drying and disinfection, and can also be used for general constant temperature tests.



Test Standard

ASTM D 3574 Test D;
ASTM D 3574 Aging Test K;
ISO 1856



Technical parameters

Temperature control range 50℃-300℃
Internal size 35*35*35cm
Dimensions 84*57*67cm
Volume 136L
Internal Material stainless steel
Power 3000W
Timing range 1-9999 minutes
Temperature fluctuation ±1℃
Temperature control accuracy 1℃
Temperature uniformity ≤1℃ (the temperature deviation of different areas in the box under the empty box state)





Test pieces rubber φ28.68, 12.7mm (D) foam plastic 50 × 50 × 25mm
Volume 20 × 12 × 10cm
Weight 11kg





Product features

1. The shell adopts electrostatic spraying process, and the paint film is firm and beautiful.

2. 2. On the door roommate observation window, you can observe the heating condition of the work room at any time.

3. 3. Microcomputer intelligent PID control, dual-screen high-brightness digital display, clear and beautiful display, accurate and stable temperature control. With timing (0-9999min).

4. 4. The hot air circulation system is composed of a fan that can continuously operate at high temperature and is sealed, and the work chamber is evenly empty.

5. 5. The inner tank is made of galvanized sheet or stainless steel sheet, and the semi-circular arc four corners design is more convenient to use and clean.

6. 6. The door of the box is sealed with silicone strips for good sealing effect.
