SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
abrasion resistance tester
,shoe wear tester

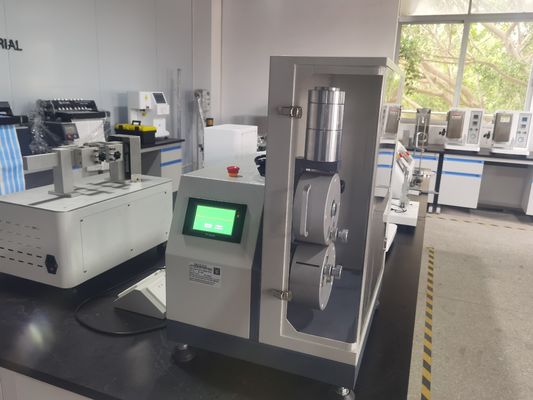

SATRA TM 103 Footwear Testing Equipment Digital Magic Tape Velcro Fatigue Tester
Product introduction
This machine is suitable for detecting the binding capacity of the hook and loop fastener ( Velcro tape) after the repeated
stripping and fitting action.
In use Velcro repeated stripping and fit the action, so after a certain number of times, then rolling sample to the weight of the wheel itself, so that uniform fit measured adhesion forces with some of the adhesion strength
Technical parameters
| Rolling speed | 72rpm |
| Load | 5kg |
| Roller Dia | 136mm |
| Roller Width | 80mm |
| Counter LCD display | 0-999,999 |
| Dimension (W×D×H) | 45*55*57cm |
| Power | AC220V 90W |
| Speed | 60+/-5r/min |
| Load | 1+/-0.1N/mm |
| Counter | LCD.0-999.999 |
| Dimensions | 450 x 550 x 570mm ( L x W x H ) |
| Weight | 70kg |
| Standards |
DIN-3415 BS EN ISO 22776 SATRA TM123 |
|
Standard Accessories
|
Weights pack of 3 Weights device pack of 1 Handle pack of 1 Power Line pack of 1 |
What is Satra testing?
SATRA is an independent research and testing organisation established in the UK in 1919. ... SATRA has its own chemicals analysis laboratory for testing restricted substances in accordance with UK and European REACH, and US chemicals regulations for which it is CPSC-accredited.
