Skates Durability Testing Machine For Simulation Of People Wearing Skates
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 work days |
| Payment Method: | Western Union, MoneyGram, T/T |
Detail Information
Place of Origin
CN
Brand Name
SKYLINE
Certification
CE
Model Number
SL-L35
SKYLINE:
Skates Durability Testing Machine
Speed:
0.5m/s
Motor Power:
3KW
Roller Diameter:
Ф700mm, Length 360mm
Number Of Impact Blocks:
12
Power Supply:
AC220V 50HZ
Highlight:
abrasion resistance tester
,rub resistance tester
Product Description

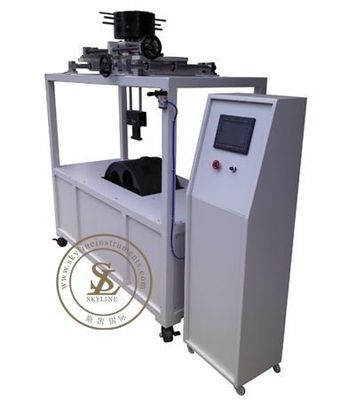

SL-L35 Skates Durability Testing Machine
Use
This machine is a simulation of people wearing skates. After a certain test time, the wear resistance of the pulleys is checked to determine the goodness of the test samples, which provides a reliable basis for improving product quality.
This machine drives the sprocket through the motor to drive the drum to rotate, and adjusts the rotation speed of the drum by adjusting the motor speed to achieve the test purpose.
Technical Parameters
| Roller diameter | Ф700mm, length 360mm |
| The touch screen displays | speed and time |
| Speed | 0.5m/s |
| Block height | class A 15mm, class B 10mm, single row 12.5mm |
| Number of impact blocks | 12 |
| Load Weight | 60kg for class A and 40kg for class B |
| Motor power | 3kw |
| Machine size(L×W×H) | (1800X580X1600) mm |
| Weight | 280kg |
| Power supply | AC 220V 50HZ |
Standards compliant
GB20096-2006
