Sole Belt Flexing Tester to Determine the Resistance of Materials
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 work days |
| Payment Method: | Western Union, MoneyGram, T/T |
Detail Information
Place of Origin
CN
Brand Name
SKYLINE
Certification
CE
Model Number
SL-L26
SKYLINE:
Sole Belt Flexing Tester
Bending Angle:
90 ± 1
Bending Speed:
0-150cpm
Width Of Grips:
144mm
Counter:
LCD 0~999,999
Dimension （W×D×H）:
100*45*45cm
Weight:
100kg
Power:
AC220V 50HZ 0.4KW
Highlight:
abrasion resistance tester
,shoe wear tester
Product Description

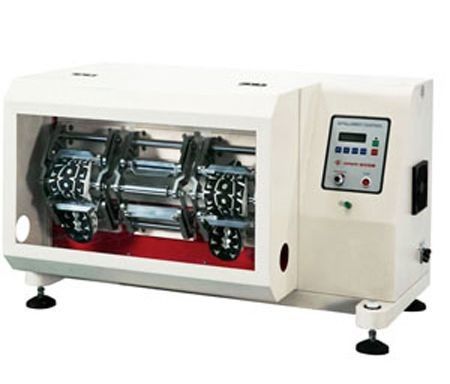

Sole Belt Flexing Tester/Shoes Sole Bending Test Machine
Application
Shoes Sole Bending Test Machine is used to determine the resistance of materials to cut growth, during repeated flexing. It’s especially applicable to outsoles of footwear including sole constructions.
Use a cutting tool to piece the specimen between the cleats at three points along the line of maximum bending stress. By the specified speed and times of 90bending action to inspect the cuts growth with a measuring.
Technical parameters
| Bending angle | 90 ± 1 |
| Circular shaft D | 30mm |
| Bending speed | 0-150cpm |
| Width of grips | 144mm |
| Capacity | 3sets |
| Counter LCD | 0-999 999 |
| MOTOR AC frequency motor | |
| Dimension | 100*45*45cm |
| Weight | 100kg |
| Power | AC220V 50HZ 0.4KW |
