Sponge / Foam Permanent Compression Tester / ASTM D3574, ISO8307
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash |
| Supply Capacity: | 30 unit / month |
ISO8307 Permanent Compression Tester
,ASTM D3574 Permanent Compression Tester
,Foam Permanent Compression Tester

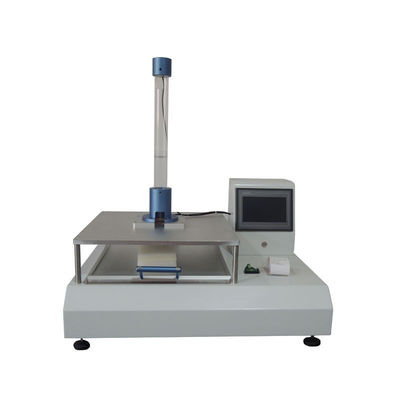

SL-F001 Sponge Rebound Rate Tester
Instrument function
This machine is designed and manufactured according to ISREAL Standard SI518, conforms to ASTM American Standard D3574 and ISO8307 test standards. It also meets the test method of urethane foam SES N3296 for Japanese automotive seat cushion.
It is suitable for measuring the falling ball resilience of flexible polyurethane foam. The instrument can freely fall on the foam sample at a specified height by a given diameter and mass of the steel ball, and calculate the percentage of the ratio of the rebound height of the steel ball to the falling height of the steel ball, and the rebound rate to rebound. The rate indicates the rebound resilience of the foam. The machine is controlled by a microprocessor, LCD Chinese display, and can print test data. The machine is safe, reliable and has high measurement accuracy.
Test standards
ASTM D3574, ISO8307, SI518, SES N3296
Technical parameters
| Steel ball drop distance | 457 ± 0.5% mm |
| Steel ball diameter | ¢16±0.05 mm |
| Steel ball weight | mass 16.8g ± 1.5 g |
| Accuracy | <0.5% |
| Display | LCD Touch Screen interface |
| Max test sample size | 380 mm (L) × 380 mm (W) × 100 mm (H) |
| Standard sample size | 100 mm (L) × 100 mm (W) × 50 mm (H) |
| Test results | Output by built-in printer |
| Automatic calculation of average rebound rate | |
Main configuration
A set of mainframes (including release mechanism, height adjustment mechanism)
A set of optical fiber distance measuring sensors,
A set of control boxes (LCD touch screen control),
A magnetic bar
