Sponge / Foam Permanent Compression Tester / ASTM D3574, ISO8307

Name: Sponge / Foam Permanent Compression Tester / ASTM D3574, ISO8307
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-F001
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Skyline

Certification: CE, Rosh, Calibration

Model Number: SL-F001

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash

Supply Ability: 30 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                ISO8307 Permanent Compression Tester, ASTM D3574 Permanent Compression Tester, Foam Permanent Compression Tester


Steel Ball Drop Distance:	457 ± 0.5% Mm	Steel Ball Diameter:	¢16±0.05 Mm
Steel Ball Weight:	Mass 16.8g ± 1.5 G	Accuracy:	<0.5%
Display:	LCD Touch Screen Interface	Max Test Sample Size:	380 Mm (L) × 380 Mm (W) × 100 Mm (H)
Standard Sample Size:	100 Mm (L) × 100 Mm (W) × 50 Mm (H)	Test Results:	Output By Built-in Printer
Result Calculation:	Automatic Calculation Of Average Rebound Rate

Steel Ball Drop Distance:	457 ± 0.5% Mm
Steel Ball Diameter:	¢16±0.05 Mm
Steel Ball Weight:	Mass 16.8g ± 1.5 G
Accuracy:	<0.5%
Display:	LCD Touch Screen Interface
Max Test Sample Size:	380 Mm (L) × 380 Mm (W) × 100 Mm (H)
Standard Sample Size:	100 Mm (L) × 100 Mm (W) × 50 Mm (H)
Test Results:	Output By Built-in Printer
Result Calculation:	Automatic Calculation Of Average Rebound Rate

Product Description

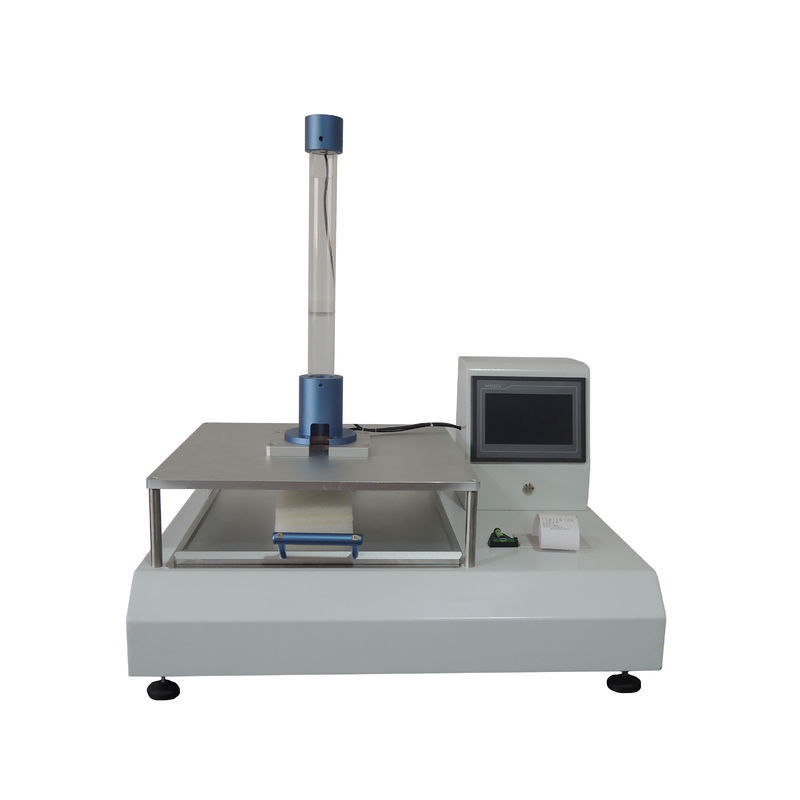

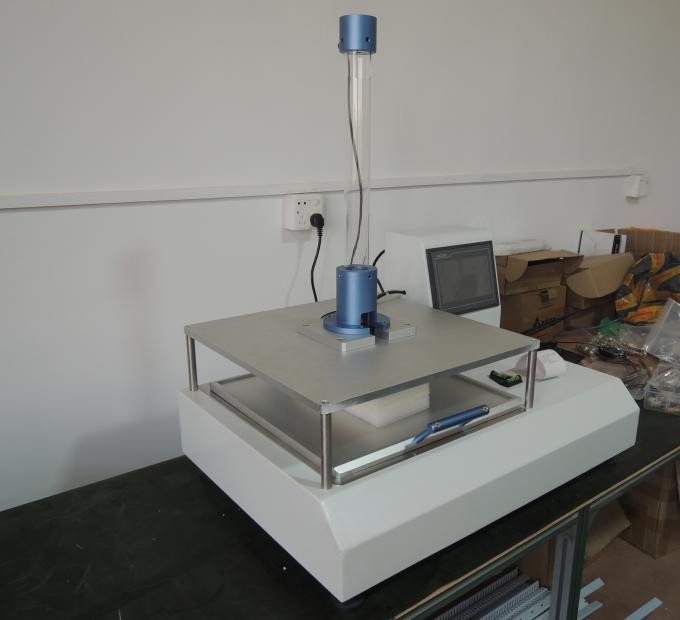

SL-F001 Sponge Rebound Rate Tester

Instrument function

This machine is designed and manufactured according to ISREAL Standard SI518, conforms to ASTM American Standard D3574 and ISO8307 test standards. It also meets the test method of urethane foam SES N3296 for Japanese automotive seat cushion.

It is suitable for measuring the falling ball resilience of flexible polyurethane foam. The instrument can freely fall on the foam sample at a specified height by a given diameter and mass of the steel ball, and calculate the percentage of the ratio of the rebound height of the steel ball to the falling height of the steel ball, and the rebound rate to rebound. The rate indicates the rebound resilience of the foam. The machine is controlled by a microprocessor, LCD Chinese display, and can print test data. The machine is safe, reliable and has high measurement accuracy.

Test standards

ASTM D3574, ISO8307, SI518, SES N3296

Technical parameters

Steel ball drop distance	457 ± 0.5% mm
Steel ball diameter	¢16±0.05 mm
Steel ball weight	mass 16.8g ± 1.5 g
Accuracy	<0.5%
Display	LCD Touch Screen interface
Max test sample size	380 mm (L) × 380 mm (W) × 100 mm (H)
Standard sample size	100 mm (L) × 100 mm (W) × 50 mm (H)
Test results	Output by built-in printer
Automatic calculation of average rebound rate

Main configuration

A set of mainframes (including release mechanism, height adjustment mechanism)

A set of optical fiber distance measuring sensors,

A set of control boxes (LCD touch screen control),

A magnetic bar
