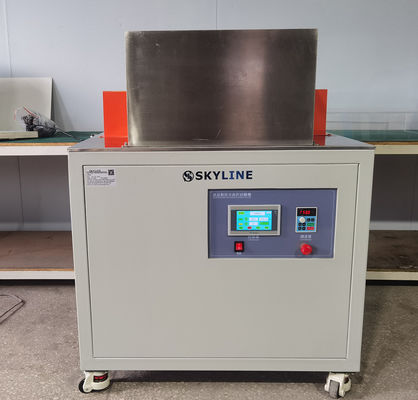

Waterproof Tortuous Testing Machine For Finished Shoes SATRA TM77 EN 20344
| MOQ: | 1 |
| Price: | negoitable |
| Standard Packaging: | Plywood case |
| Delivery Period: | 25 working days |
| Payment Method: | T/T |
| Supply Capacity: | 1 unit/Month |
Machine Introduction:
The finished shoes are installed on the waterproof and zigzag testing machine of the finished shoes. Through the waterproof and zigzag testing machine of the finished shoes, the zigzag part of the tested shoes is driven to the zigzag Angle matching the shoe type and the fixed rate of the zigzag machine. The zigzag of the finished shoes waterproof and zigzag testing machine is carried out repeatedly in the sink equipped with a certain depth and the water is dyed. Until the finished shoe water or reach the pre-set number of twists and turns. To complete the number of twists and turns of no water into the inside of the finished shoe or the size of the water penetration area of the finished shoe after the completion of the specified twists and turns to evaluate the waterproof and permeability resistance of the finished shoe under the zigzagging condition.
Test Standard
Meets SATRA TM77 and other standards.
Technical Parameters
1. Bending Angle: 0 ~ 90° adjustable.
2. Zigzag speed: 0 ~ 120r/min adjustable.
3. Test quantity: 2 finished shoes can be tested at the same time.
4. Count: PLC touch screen display.
5. Volume: (80x59x110) cm.
6. Weight: about 138kg.
7. Power supply: AC220V,400W
