Simple Operate Furniture Testing Equipment Armrest Sideways Static Load Tester EN 12520

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-T41
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 35 working days
Payment Terms Western Union, T/T,
Supply Ability 1 pcs/ month
Product Details
Aluminum: High Quality Industrial Aluminum Production Frame Controller: PLC+ Touch Screen
Motor: Air Cylinders Standard: EN1335-3-2009 7.2.5 EN 581-2 Safety Of Outdoor Seating EN 12520
Air Supply: 7kgf/cm^2 Capacity: 200N
Highlight:

furniture testing machine

,

chair testing machine
Product Description

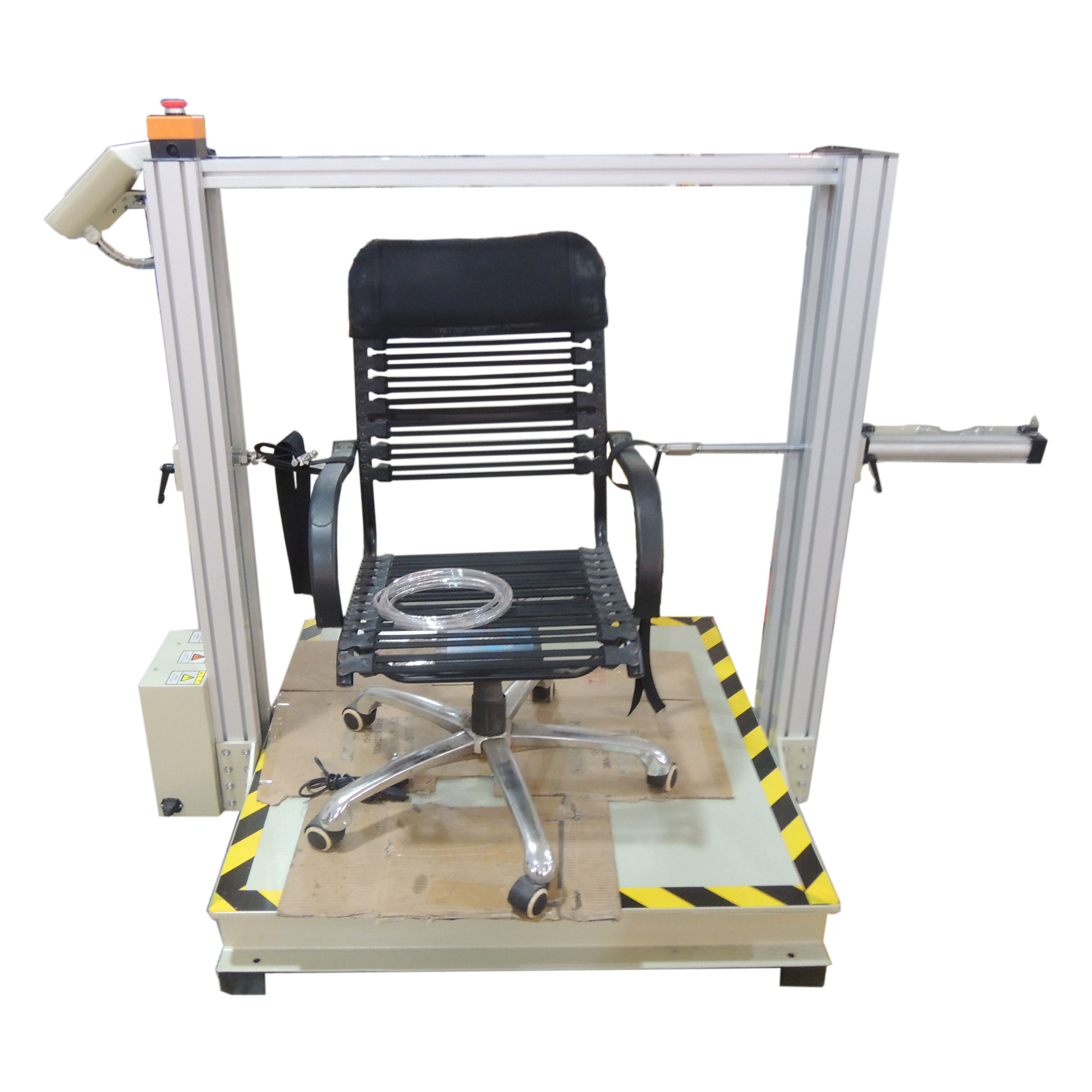

Armrest Sideways Static Load Tester



Use

This machine used to evaluate the pull-resistance ability of the armrest at parallel direction, to determine its fatigue life under parallel strength.Fix the caster, set the time, and pulling strength and time for automatically repositiion.

Apply an outward horizontal force to both arm rests simultaneously. Apply the forces to the edge of the armrest at the point along the arm rest most likely to cause failure but not less than 75 mm from the front or rear edge.


Specification
With Alu.fram,PLC control. Easy and simple to operate.Precise sensor reaction the load force
A pull load cylinder group

Standard
EN1335-3-2009 7.2.5
EN 581-2 Safety of Outdoor Seating
EN 12520



Technical parameters

 Armrest Height  650-780mm or specified
 Timer  LCD, 0.01sec-99.9sec, 1sec-99 minute 99 second
 Machine Size  1200*500*1000mm
 Parallel Force  100-200lb
 Force Stroke  0-24 inch or specified
 Counter  LCD, 0-999,999 times
 Weight  250kg
 Power  AC220V, 3A
