IS5967 Strength Testing Equipment , Stability Testing Equipment For Tables And Trolleys

Name: IS5967 Strength Testing Equipment , Stability Testing Equipment For Tables And Trolleys
Brand: SKYLINE
SKU: SL-T26
Rating: 4.9 (145 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-T26

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: plywood case

Delivery Time: 35 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                stability testing equipment, chair testing machine


SKYLINE:	Furniture Testing Equipment	Controller:	PLC+ Touch Screen
Motor:	Air Cylinders	Standard:	EN 527-3, EN581-3 And BIFMA X5.1, IS5967
Air Supply:	7kgf/cm^2	Capacity:	2KN,4 Pcs；5KN,1 Pcs

SKYLINE:	Furniture Testing Equipment
Controller:	PLC+ Touch Screen
Motor:	Air Cylinders
Standard:	EN 527-3, EN581-3 And BIFMA X5.1, IS5967
Air Supply:	7kgf/cm^2
Capacity:	2KN,4 Pcs；5KN,1 Pcs

Product Description

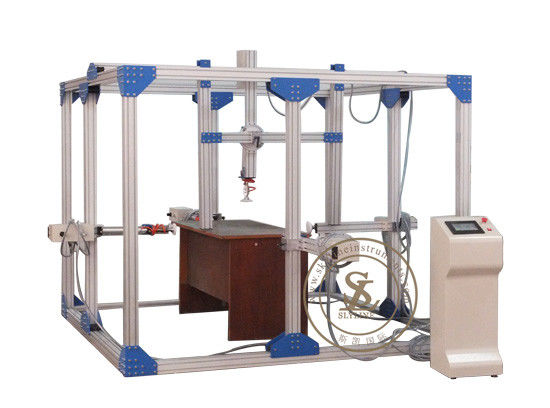

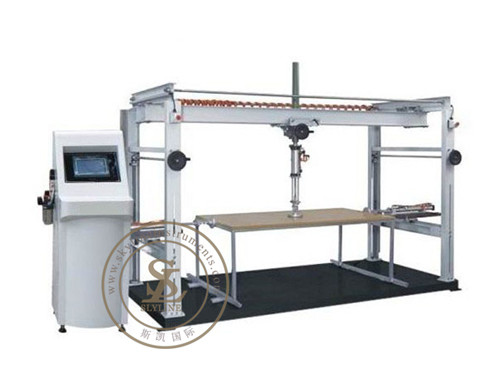

IS5967 Furniture Testing Equipment Strength and Stability Testing Machine for Tables and Trollys

Features

1 It equips 5 group pneumatic cylinder which is 1 set vertical device and 4 set calibrate velocity & thrust separately. Stroke is 500mm
2 Quadruplet brake of vertical device can be adjustment front and back & up and down (100mm~900mm)
3 Quadruplet brake of horizontal device can be adjustment up and down & left and right, it can cooperate with different test position.
4 it has several rows screws hole in the bottom panel of tester which is convenient to install different accessory or fixed test condition
5 it equipped the quick coupling location in front of pneumatic brake for each group which is convenient to change different load or grip.
6 color touch screen & PLC controller, easy operate interface, display imaging and more inconvenient for operator.

This test machine is used for testing the strength and stability of tables and trollys.Can do following testing
Strength testing

1. Vertical static load test
2. Sustained load test
3. Horizontal static load test
4. Vertical impact test
Stability Testing:

1. Vertical stability test
2. Horizontal impact test.

Technical parameter

Basic Test Frame	2.5x2.5x2m,be made of 80x80mm Alu.material
Load air cylinder	diameter 50mm, 4 pcs,stroke 300mm,max load force up to 1500N
Impact cylinder	diameter 50mm, 1pcs, stroke 400mm
Load air cylinder	diameter 80mm,1pcs,stroke 500mm, max load force up to 2500N
Force sensor	high precision sensor,capacity 2KN,4 pcs；5KN,1 pcs
Control way	touch screen + PLC control
Counter	0~999999 times (can by adjusted)
Force adjust	precision pressure valve equipment with sensor to disply
Air supply	7kgf/cm^2
Power	1∮ AC 220V 50Hz 5A

Testing Standards
EN 527-3, EN581-3 and BIFMA X5.1, IS5967

EN 1725:1998 7.3 Durability test
EN 1725:1998 7.5 Durability of bed edge
EN 1725:1998 7.6 Vertical static load test

IS5967 Strength Testing Equipment , Stability Testing Equipment For Tables And Trolleys 0
