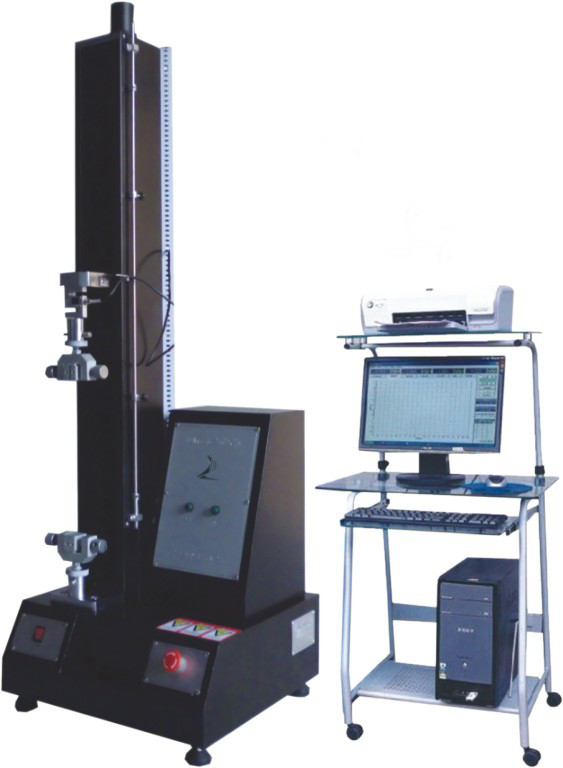

Single Column Tensile Strength Testing Machine PC Controlled For Wire / Cable

Name: Single Column Tensile Strength Testing Machine PC Controlled For Wire / Cable
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T803
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: Calibration Certificate

Model Number: SL-T803

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Neogitable

Packaging Details: plywood case

Delivery Time: 7 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 10 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                tensile strength test equipment, tensile strength apparatus


SKYLINE:	PC Controlled Tensile Strength Tester	Stroke (exclude The Grips):	600~800mm Or Customized
Capacity Choice:	5kg, 10kg, 20kg, 25kg, 50kg, 100kg,500kg	Units:	G, KG, N, LB
Resolution:	1/100,000	Load Accuracy:	< ± 0.5%

SKYLINE:	PC Controlled Tensile Strength Tester
Stroke (exclude The Grips):	600~800mm Or Customized
Capacity Choice:	5kg, 10kg, 20kg, 25kg, 50kg, 100kg,500kg
Units:	G, KG, N, LB
Resolution:	1/100,000
Load Accuracy:	< ± 0.5%

Product Description

Single Column Tensile Strength Testing Machine PC Controlled For Wire / Cable

Product Information

It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical test.

Technical

Capacity (optional)	5kg, 10kg, 20kg, 25kg, 50kg, 100kg,500kg
Unit (Switchable)	G, KG, N, LB
Load Resolution	1/100,000
Load Accuracy	< ± 0.5%
Stroke (exclude the grips)	600~800mm or Customized
Stroke Resolution	0.5 mm
Sample Rate	16 times/sec
Test speed	0.004-510mm/min selectable
Weight (exclude the grips)	75 Kg
Display LCD	( linkable to PC )
Motor AC motor	with variable freq. drive
Dimension(W×D×H)-Main Unit	500×440×1500mm
Power	1ø, 220V/ 3A
Accessories Tensile grips	1 set

Characteristics

1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. High quality, accurate and reliable models with reasonable price.

Testing Standards

ASTM D903	GB/T16491
GB/T1040	GB/T8808
GB13022	GB/T 2790/2791/2792
CNS-11888	JIS-K6854; PSTC-7
