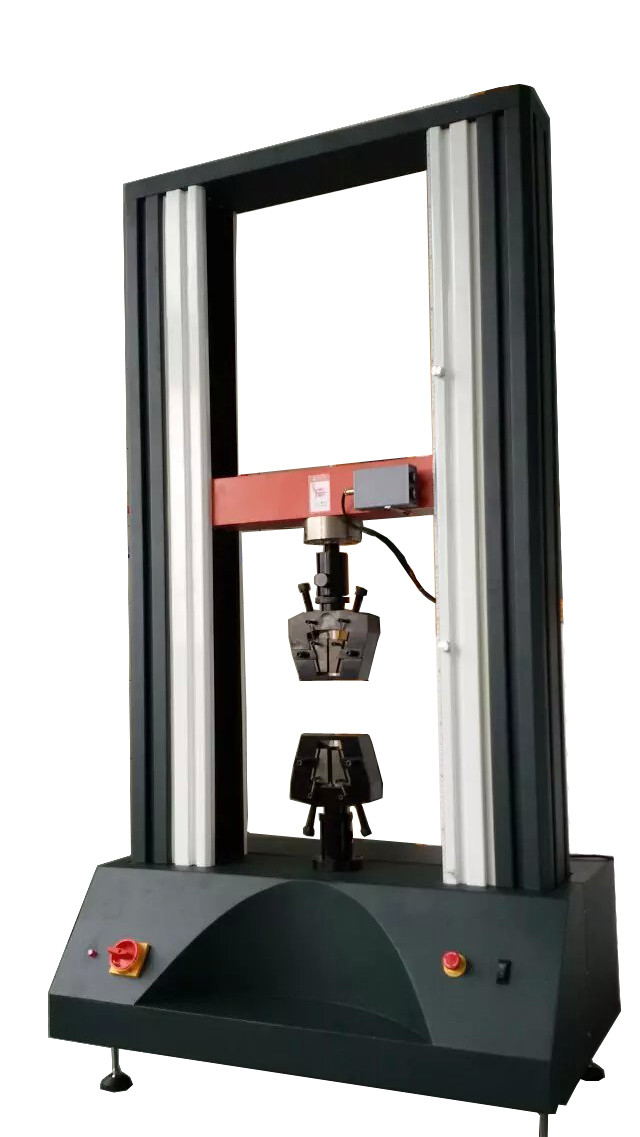

Tensile Strength Tester 5T Servo Controlled Tensile Strength Testing Machine
Product Information
PC controlled Tensile Strength testing machine is used to test tension, compression, shearing force, adhesion, peeling force, tear strength, etc of specimen, semi-finished and finished products in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrol chemistry, electric appliance, automobile, etc, which are the basic facilities for Input Quality Control, Quality control, physical Inspection, Mechanics Research and Material Development.
Technical
| Capacity |
100,200,500,1000,2000,5000kg |
| Strength resolution |
1/10,000 |
| Strength accuracy |
≤0.5 % |
| Shift resolution |
1/1000 |
| Shift accuracy |
≤1 % |
| Test speed |
50 - 400mm/min |
| Test stroke |
950mm ( exclude grips ) |
| Test width |
400mm |
| Dimensions |
1200*530*1800mm |
| Weight |
430Kg |
| Power |
10 - 30KN§220V 50HZ , 50KN§380V 50HZ |
|
Motor servo motor(Panasonic)/ frequency conversion
|
|
