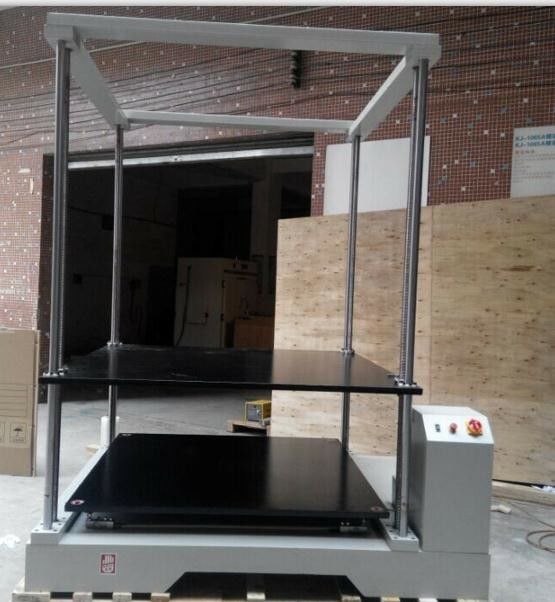

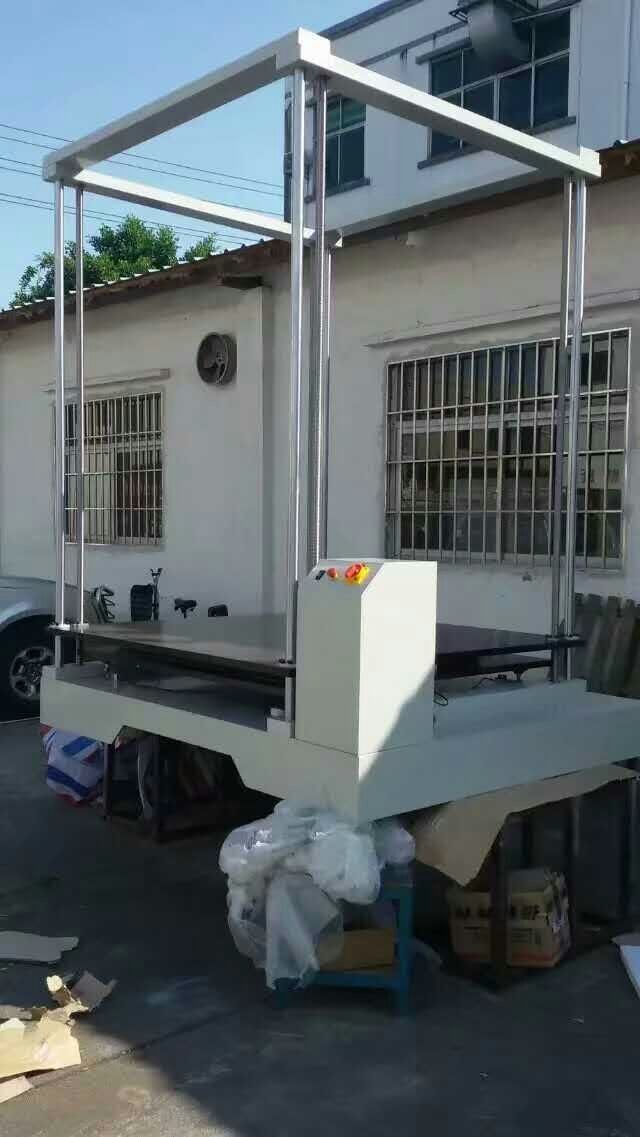

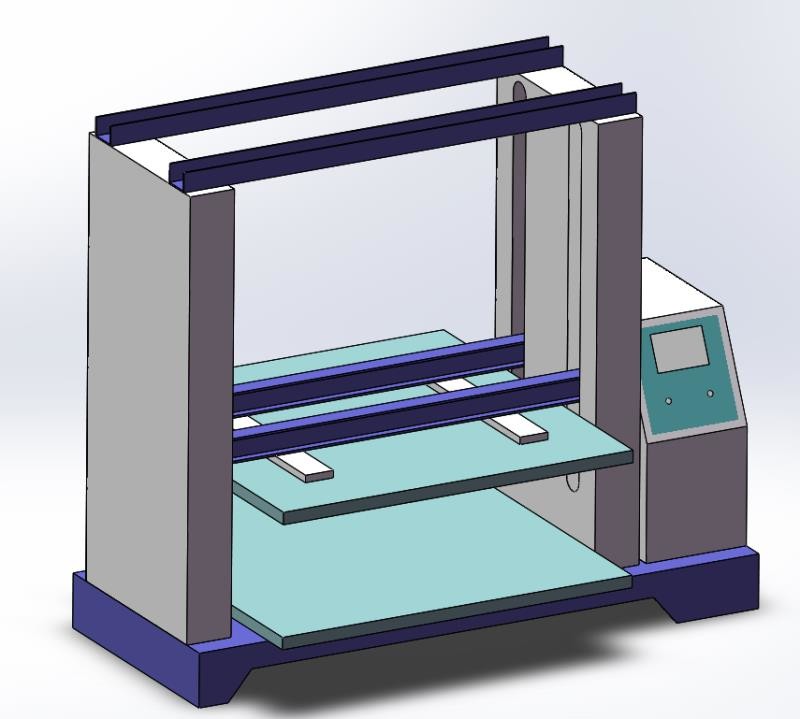

500KG Computerized Spring Compression Testing Machine / Tensile Strength Testing Equipment
Product Information:
PC controlled Tensile Strength testing machine is used to test tension, compression, shearing force, adhesion, peeling force, tear strength, etc of specimen, semi-finished and finished products in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrol chemistry, electric appliance, automobile, etc, which are the basic facilities for Input Quality Control, Quality control, physical Inspection, Mechanics Research and Material Development.
Technical:
1.Motor sevro motor
| Plate size |
600mm |
| Capacity |
200kg |
| Speed range |
0.001~1000mm/min |
| Resolution |
1/500,000 |
| Test speed |
0.05mm~500mm/min |
| Test Stroke |
1000mm |
| Test Width Compression plate |
600mm |
| Test unit |
KN,N,tonf(SI),kgf,gf,tonf(long),tonf(short),lbf,ozf,cN |
| Distance measurement |
0.0001mm |
| Accuracy |
±0.1% |
| Collect rate |
0.1~2000Hz |
| Software language |
Chinese,English |
| Test space |
1900 mm(W)×1900 mm(D)×1000 mm(H) |
| Weight |
550 kg |
| Power |
AC-220V,50~60HZ 4A |
