Tensile Strength Tester Servo HighTemperature Tensile Testing Machine
Application
This tester is mainly applied to rubber, plastic profile, plastic pipe, plate, sheet, film, wire and cable, waterproof coil, wire and other materials under high temperature or low temperature environment, stretching, compression, bending, peeling, Tear, shear and other mechanical properties of the test; very convenient for users to carry out research and development, quality control work, is the industrial and mining enterprises units, commodity inspection arbitration, scientific research units, universities, engineering quality and other departments ideal testing equipment.
Features

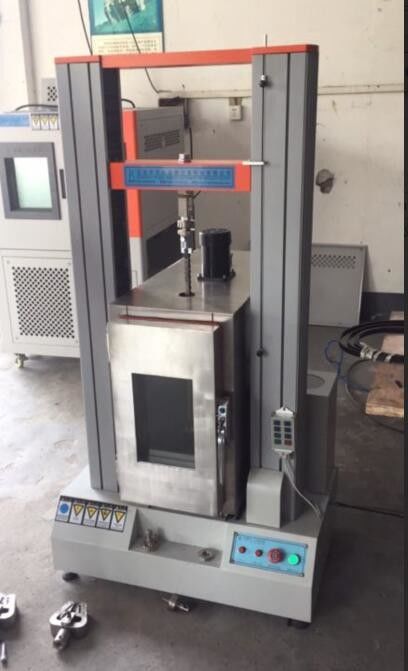

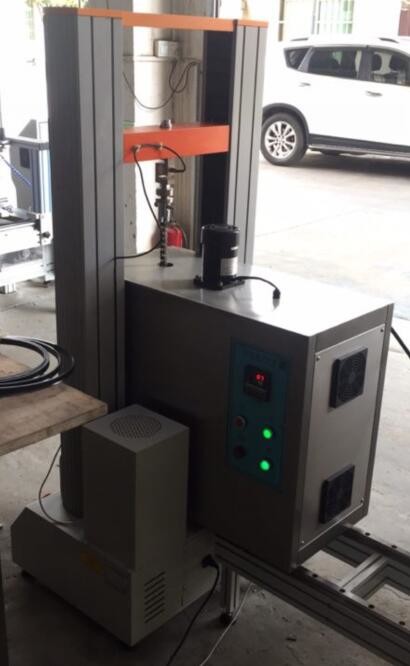

1.The instrument is composed of a main body of a pulling machine, a clamp, and a movable high-low temperature test box.
2.Rally machine body part adopts a full set of imported digital AC servo system, high rigidity frame structure.
3.High-low temperature test chamber adopts double-layer heat-insulating glass door, which is convenient for users to observe and test the situation.
4.It adopts all-stainless steel frame and liner, which is not only beautiful but also has strong corrosion resistance.
5.The instrument has a novel design, high precision, low noise, and easy operation.
Specification
| Capacity selection |
2,5,10,20,50,100,200,500,1000,2000kg |
| Selecting capacity |
Generally, the maximum strength of the specimen is about 3~10 times |
| Unit selection |
g, kg, N, KN, LB (provides international standard, metric, imperial three, can be used to switch) |
| Display device |
Full computer control (optionally generated report data required by customers) |
| Decomposition degree of load |
1/100,000 |
| Load accuracy |
≤0.5% |
| Test speed |
0.1~500mm/min (can be arbitrarily set in the computer) |
| Test stroke |
400, 500, 600mm (can be increased according to customer requirements) |
| Test width |
40cm (can be widened according to customer requirements) |
| Machine test space |
(L×W×H)40×40×70cm |
| Machine weight |
130KG |
| Power System |
Servo Motor + Drive |
| Transmission mode |
high precision ball screw |
| Power supply |
1∮, AC220V, 50~60Hz |
| Fixture |
According to customer's product requirements, make a set of tensile and compression test fixtures |
| Machine size |
host (L×W×H)1200×600×1500cm |
Low temperature refrigeration control system technical parameters
Temperature control range: customized according to customer requirements, Min.-40°C~Max.150°C
Control method: P.I.D. automatic temperature calculation
Humidity range: 2%RH~98%RH
Control stability: ±2.5%RH, ±1°C
Distribution uniformity: ±3%RH, ±1°C
Cooling Compressor: Single Stage Fully Enclosed French Taikang Original Compressor
Cooling speed: >1°C/Min
Timer: LED, 99 points from 0 to 9999
Inner box material: SUS#304, mirror stainless steel plate
Inner box size: (L×W×H)40×40×70cm (can be customized)
Outer box material: sand grain stainless steel plate, tensile machine for aluminum shaped double column, advanced paint
Insulation layer: high-density rigid PU styrofoam and 24K glass wool
Safety devices
Trip protection: mechanical, computer double protection, prevent over preset stroke
Power protection: can be set by system
Emergency stop device: can handle unexpected situations
Temperature Overheat Preventer: Protects the test item and test box
High-speed circuit protector: protection heating circuit
Electric Motor (Blower, Freezer): Overload Thermal Relay (Protecting Blower, Freezer Overload)
Refrigerant high pressure protection switch: protect the compressor and prolong its service life
Circuit breaker protector: protect the compressor and prolong its service life
Compressor overload protection switch, ultra-high temperature overload protection switch, water shortage protection device
