BIFMA X5.1 Furniture Testing Equipment Chair Back Durability Testing Equipment

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: Calibration certificate

Model Number: BIFMA X5.1 2017 14,15

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Plywood case

Delivery Time: 35 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                furniture testing machine, chair testing machine


SKYLINE:	Chair Back Durability Test	Brand:	SKYLINE
Backrests Height:	200mm	Loading:	445N
Loading Rate:	10 And 30 Cycles /minute	Weight:	109Kg

SKYLINE:	Chair Back Durability Test
Brand:	SKYLINE
Backrests Height:	200mm
Loading:	445N
Loading Rate:	10 And 30 Cycles /minute
Weight:	109Kg

Product Description

Chair-Back-Durability-Test

Application

This test shall be performed on Type I Tilting chairs with backrests greater than 200 mm in height.

It is used for static load and durability tests of various office chairs, high chairs, children's dining chairs, etc., to simulate the user's condition, and to perform cushions and backrests (simultaneous and/or separate) for all kinds of chairs. Static load test and dynamic endurance test to judge the fatigue stress and bearing capacity of the test piece

Product introduction

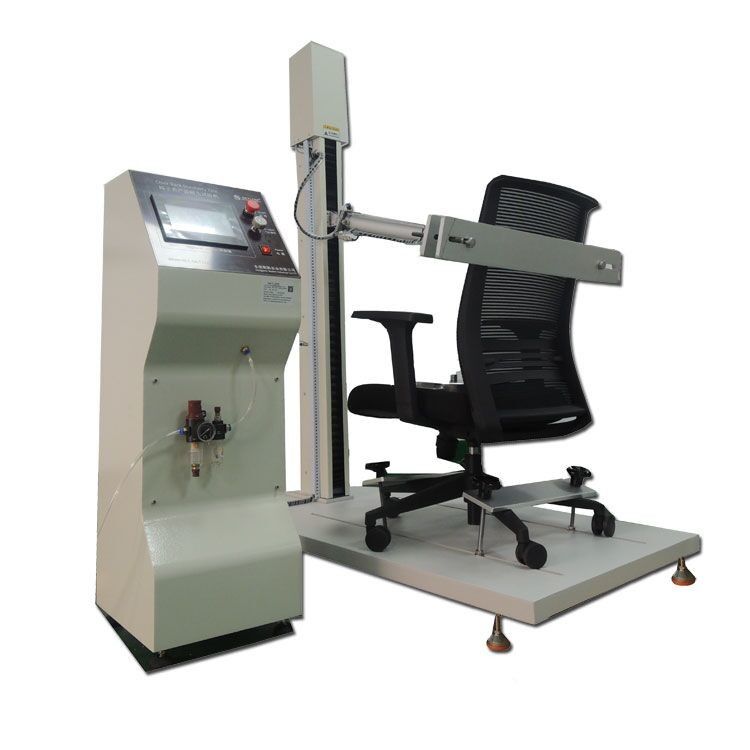

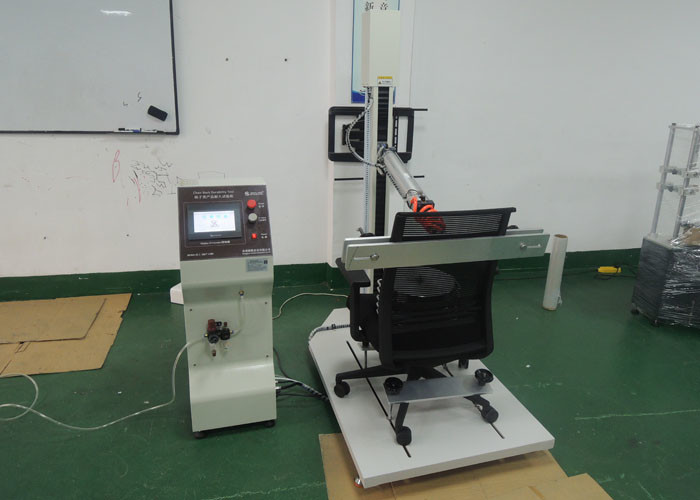

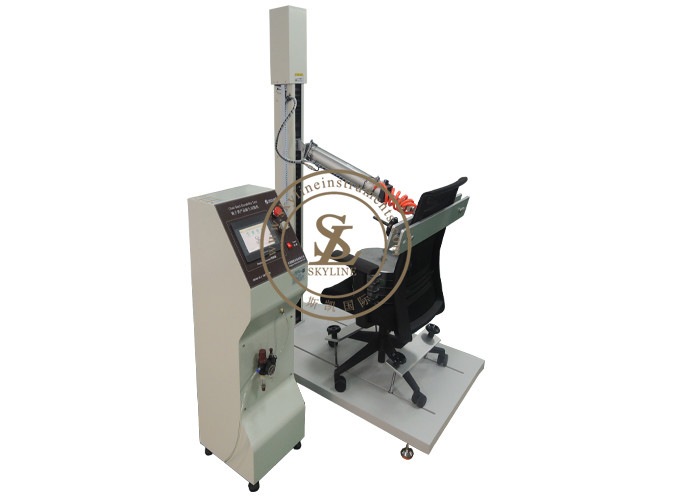

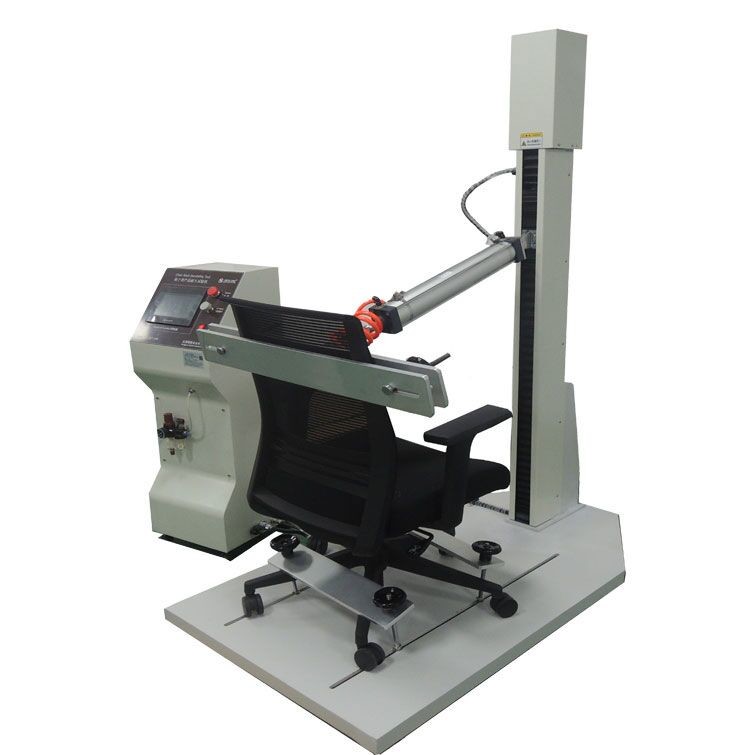

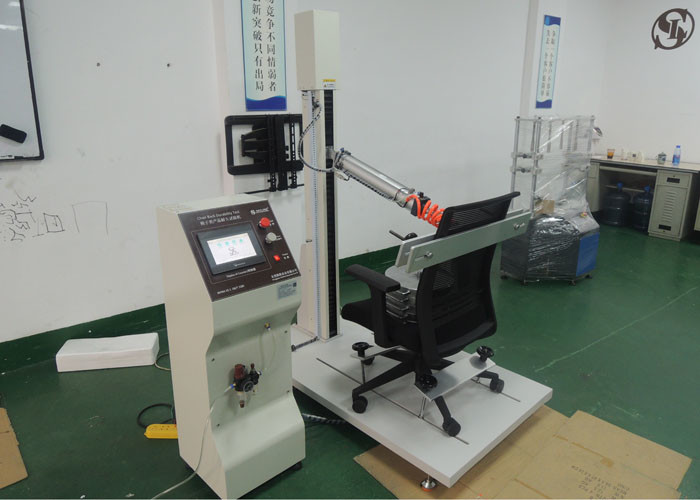

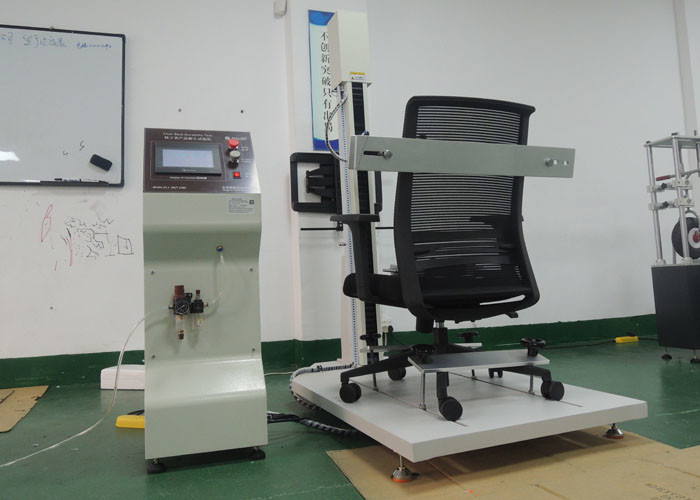

Chair back durability test equipment tests the strength and durability of the seats and backrests by simulating the daily use loading of the seat.
The machine is equipped with two drive devices, which can be individually controlled to repeatedly load the test points of the seat. Through different parameter settings, the machine can do following test on the seat:
1. Seat and back static load test.
2. Seat and back durability test.
3. Seat front edge static load and durability test;
4. Horizontal forward static loading test for backrest.
5. Headrest static load test,
6. Legs forward static load test,
7. Legs lateral static load test.

Specification

The max weight is 109kg (240lb)
The loading device rate between 10 and 30 cycles/minute
Seating position nearest to the center of the chair
Determine points 406 mm (16 in.) and 452 mm (17.8 in.) above the seat . Mark these points on the vertical centerline of the backrest.
Affixed to the test platform. The device shall prevent sliding but not restrict the unit
from tipping. On chairs that rotate, the base and casters shall be positioned to offer
the least resistance to rearward tipping of the chair
Loader: diameter 200mm.

Chair Back Durability Test.pdf
