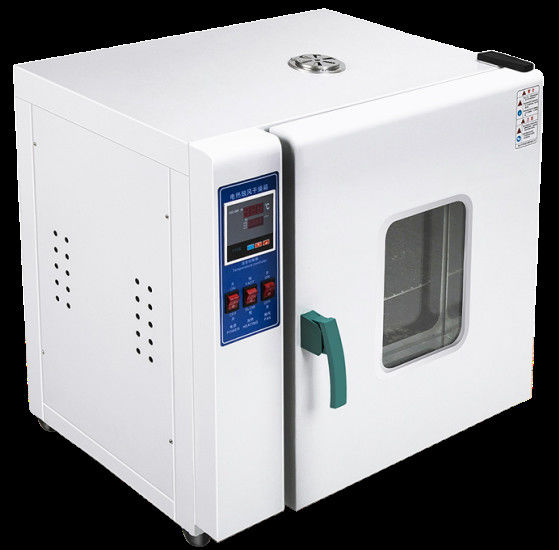

Electric Heating Blast Constant Temperature Drying Oven
Product introduction
Electric heating blast constant temperature drying oven is used as drying of glassware, thermal denaturation and thermal hardening experiments of samples, removing residual moisture in specimens, dry heat sterilization of glassware for microorganisms, preheating before heating experiments, food and chemistry during heating Material hardening or softening experiments, removing moisture, extending the storage time of food under severe conditions, drying, baking, disinfection, sterilization and material denaturation tests such as drying of building materials, electronic components, and heat resistance experiments.
Application
It is mainly used for baking, drying, heat treatment and thermal processing of items, agricultural production, scientific research, medical and health units, and laboratory experiments. It is suitable for drying, baking, baking, drying, baking, It is used for wax melting, sterilization, drying and disinfection, and can also be used for general constant temperature tests.
Technical parameters
| Product name |
Model |
StudioCM |
Dimensions |
Power |
Volume |
Remarks |
| Depth, width and height |
Depth, width and height |
(W) |
(L) |
| Electric heating blast constant temperature drying oven |
101-0 |
25*25*25 |
34*53*37 |
500
|
16 |
With blast No B is galvanized sheet liner Belt B is stainless steel inner tank |
| 101-0B |
| 101-00 |
35*35*35 |
63*47*47 |
800 |
43 |
| 101-00B |
| 101-1 |
35*45*45 |
73*47*57 |
2000 |
70 |
| 101-1B |
| 101-2 |
55*45*55 |
84*57*67 |
3000 |
136 |
| 101-2B |
| 101-3 |
60*50*75 |
81*61*87 |
4500 |
225 |
| 101-3B |
| Technical parameter |
1. Temperature control range: 50℃-300℃
2. Timing range: 1-9999 minutes
3. Temperature fluctuation: ±1℃
4. Temperature control accuracy: 1℃
5. Temperature uniformity: ≤1℃ (the temperature deviation of different areas in the box under the empty box state) |
Product features
1. The shell adopts electrostatic spraying process, and the paint film is firm and beautiful.
2. On the door roommate observation window, you can observe the heating condition of the work room at any time.
3. Microcomputer intelligent PID control, dual-screen high-brightness digital display, clear and beautiful display, accurate and stable temperature control. With timing (0-9999min).
4. The hot air circulation system is composed of a fan that can continuously operate at high temperature and is sealed, and the work chamber is evenly empty.
5. The inner tank is made of galvanized sheet or stainless steel sheet, and the semi-circular arc four corners design is more convenient to use and clean.
6. The door of the box is sealed with silicone strips for good sealing effect.
