LCD Screen 200rpm Digital Adhesion Meter With RS232 Interface

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-T14
Minimum Order Quantity 1 unit
Price negotiated
Packaging Details Plywood case
Delivery Time 20 working days
Payment Terms T/T, L/C, Western Union,
Supply Ability 10 unit/ month
Product Details
Speed: 0.3 ~ 200rpm Measurement Range: 100 MPa•s～2×105 MPa•s
Rotor Speed: (5,10,20,50)r/min Measurement Error: ±1% (F•S)
Temperature Control Range: 45 ℃～200 ℃ Temperature Control Accuracy: ±0.1 ℃
Highlight:

200rpm Adhesion Meter

,

RS232 Interface Adhesion Meter

,

RS232 Interface Cosmetics Testing Equipment
Product Description

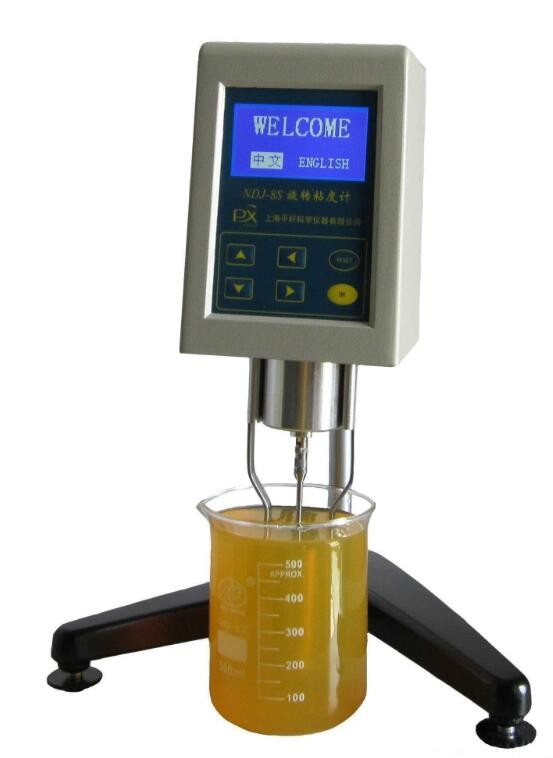

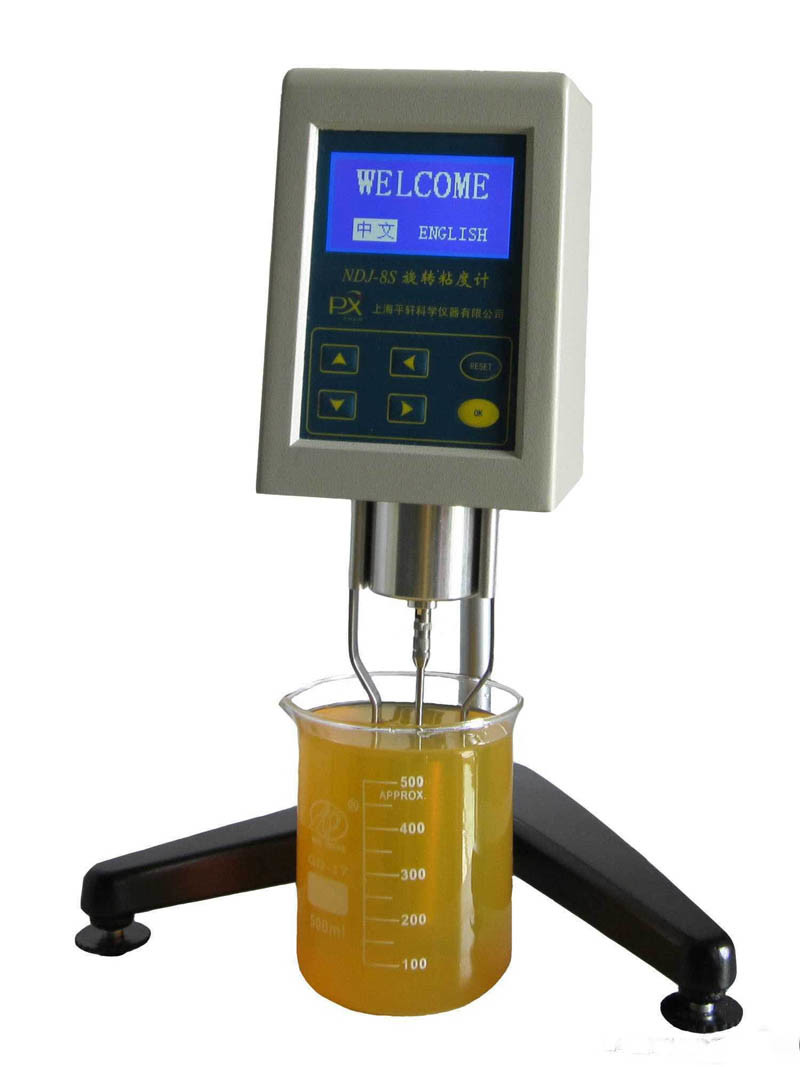

Digital Adhesion Meter



Detailed parameter

Sheen new digital adhesion meter fast, effective and accurate measurement of viscosity, provides an ideal solution, it is easy to use, wide application, can be used for detection of various liquids. Measurement of torque, rotational speed can be displayed, rotor model, and the results calculated viscosity.



Characteristic
1. Speed from 0.3 ~ 200rpm
2. LCD screen can be clearly shown from the choice of operating parameters
3. Installation of new equipment slowed the rate improved to prevent dramatic changes in the rotor torque with platinum
4. Platinum probe can measure temperature.
5. Interface options / software records
6. Input density can test the kinematic viscosity range
7. Automatically display range
8. Can store 10 user-defined test set

9. 8 languages selectable

10. When the reading in the full scale and below 15% will alarm



Technical parameters

Measurement range 100 mPa•s～2×105 mPa•s (If you select the No.30 spindle, the measurement range can be extended to 4×105 mPa•s)
Rotor Specifications No.21, 27, 28 and 29 total 4 pieces of spindles (the No.30 spindle is optional)
Rotor speed (5,10,20,50)r/min
Measurement error ±1% (F•S); (If you select the No.30 spindle, it will be ±3% (F•S)
Temperature control range 45 ℃～200 ℃
Temperature control accuracy ±0.1 ℃
Sample cylinder 20ml
Print output Needle printer
Communication with the PC RS232 interface
Power supply AC 220V±10%, 50 Hz
Ambient temperature 5 ℃～35 ℃ (when the controlling temperature is close to ambient temperature, please run the air conditioner to let the ambient temperature be 5 ℃ lower than the controlling temperature)
Relative humidity ≤80%
