10KN Sole Adhesion Tester / Shoe Testing Machine For Tear , Break Test

Name: 10KN Sole Adhesion Tester / Shoe Testing Machine For Tear , Break Test
Brand: SKYLINE
SKU: SL-T805
Rating: 4.7 (150 reviews)

Product Details

Place of Origin: CN

Brand Name: SKYLINE

Certification: CE

Model Number: SL-T805

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 15 work days

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                tensile strength test equipment, tensile strength tester


SKYLINE:	Strength Tester For RAPID SOLE ADHESION TEST	Capacity:	10KN
Test Speed:	5~500mm/min	Test Space:	Test Width: About 370mm, Effective Stroke: About 800mm
Test Force Accuracy:	Superior To ±1% (±0.5%) Of Indicating Value	Deformation Accuracy:	Superior To ±1% (±0.5%) Of Indicating Value
Resolution:	1/200000	Weight:	300kg

SKYLINE:	Strength Tester For RAPID SOLE ADHESION TEST
Capacity:	10KN
Test Speed:	5~500mm/min
Test Space:	Test Width: About 370mm, Effective Stroke: About 800mm
Test Force Accuracy:	Superior To ±1% (±0.5%) Of Indicating Value
Deformation Accuracy:	Superior To ±1% (±0.5%) Of Indicating Value
Resolution:	1/200000
Weight:	300kg

Product Description

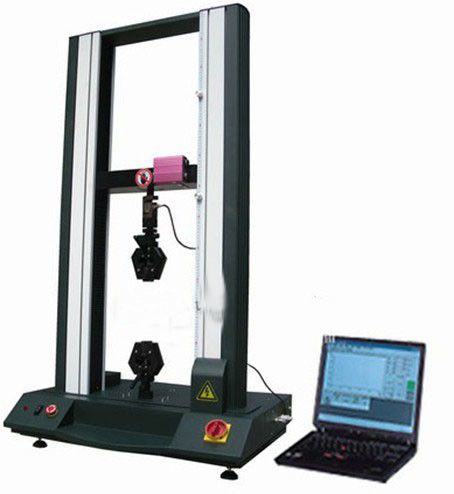

10KN Sole Adhesion Tester / Shoe Testing Machine For Tear , Break Test

Use

Tensile testing machine is suitable for testing the relationship between material force and deformation, and can conduct tension, bending, peeling, compression, sagging, adhesion, tear and other mechanical tests and analysis to metal and nonmetal raw material and workpiece.

1.Mechanical test like tensile,compression,bending,tearing,and others.

2.Doule-control function by touch screen and computer ;

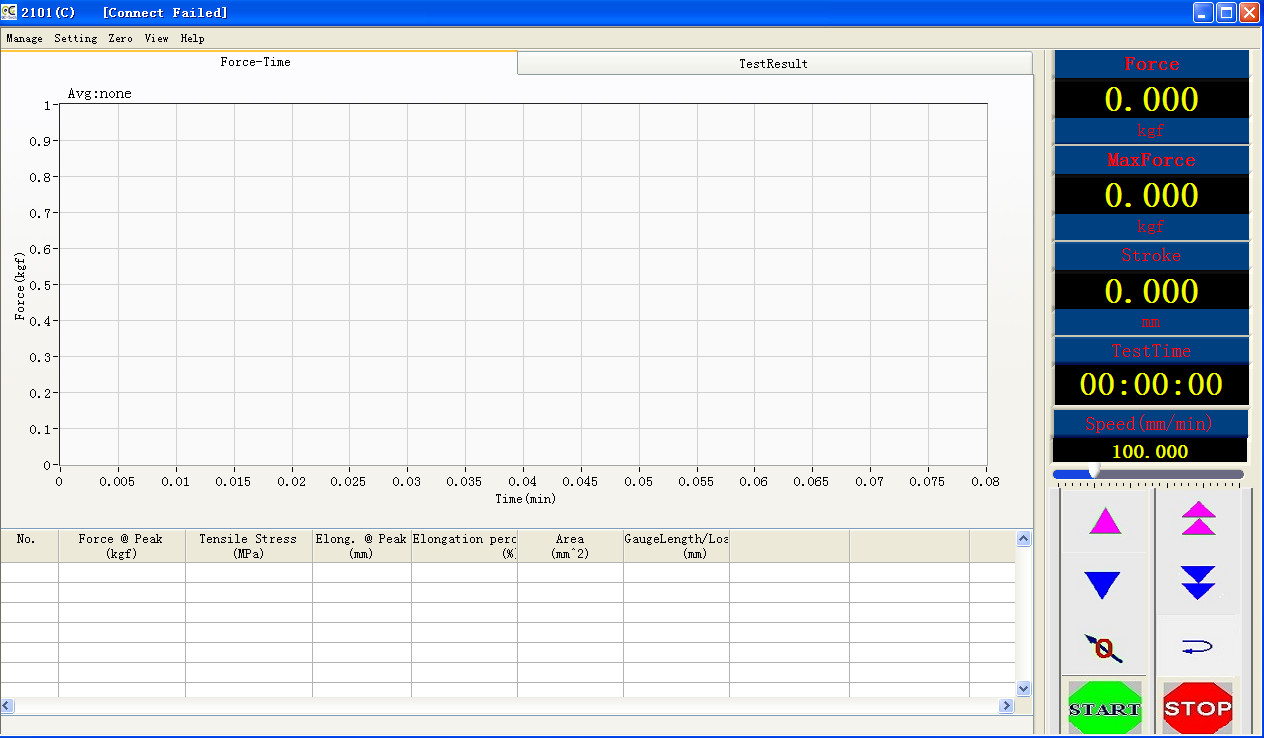

3.Indicating real test curves of all kinds ;

4.Easy and fast operation ;

5.Meeting standard : ASTM, DIN, EN ,GB/T etc

Technical parameters

Model	SL-T805
Maximum test	10kN
Measuring Range	0.4%-100% of Max Testing Force
Resolution	1/200000
Precision Grade:	1 grade
Control System	5~500mm/min
Test Space	Test width: about 370mm, effective stroke: about 800mm
Operation Mode	Liquid crystal touch screen or special English test software operation
Safety Device	Overload emergency stop, upper and lower stroke limit, leakage automatic power off, automatic breakpoint stop
Test Force Accuracy	Superior to ±1% (±0.5%) of indicating value
Deformation Accuracy	Superior to ±1% (±0.5%) of indicating value
Power Supply System	220V 50HZ

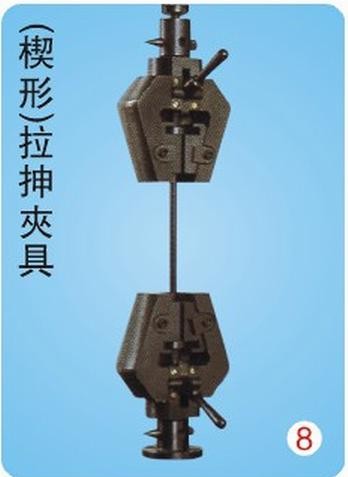

Fixture Configuration	Select a pair according to user product test requirement
Work Environment	Temperature RT15℃, humidity 20%-80%
Machine Size	8004001800mm
Machine Weight	About 300KG

What equipment is used for testing strength?

A universal testing machine (UTM), also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials. An earlier name for a tensile testing machine is a tensometer.
