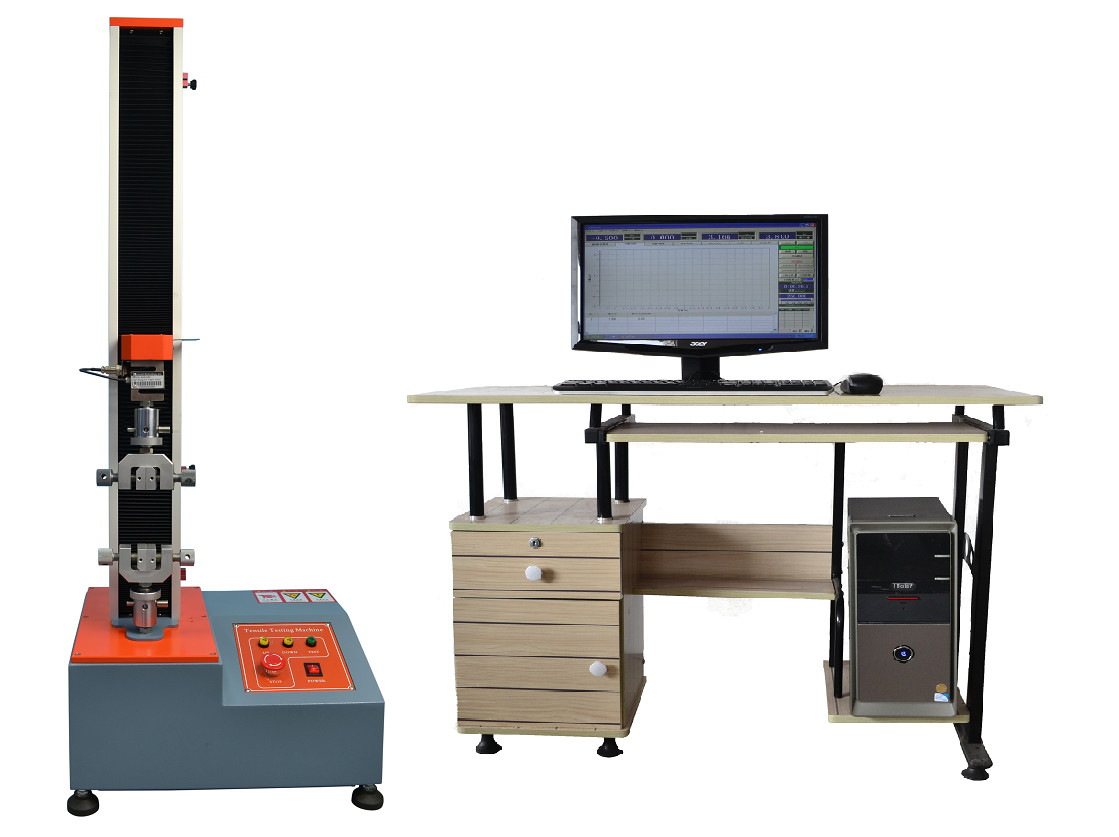

Computerized Single Column Lab Testing Equipment Servo Tensile Testing Machine
Main functions of lab testing equipment:
This machine is suitable for testing and analyzing the mechanical properties of rubber, tire, rubber tube, tape, sole, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum plastic pipe, composite material, waterproof material, fiber, textile, wire and cable, paper, gold foil, tape, silk thread, spring, wood, medical packaging materials, tape, etc., such as stretching, compression, tearing, peeling (both 90 degrees and 180 degrees).
This machine is a new type of material testing machine that combines electronic technology with mechanical transmission. It has high accuracy and sensitivity for the measurement and control of load, deformation and displacement. This series of models adopts a single space structure, with the test space in the lower space. It is mainly applicable to the test of metal and non-metallic materials with the test load less than 5kN. It has a stress, strain and displacement control mode, and can calculate the maximum force, tensile strength, bending strength, compression strength Elastic modulus, elongation at break, yield strength and other parameters.
Technical parameters:
| Capicity selection(kg) |
2,5,10,20,50,100,200kg can be selected |
| Accuracy grade |
Grade 0.5 |
| Effective force measuring range |
0.4%~100% |
| Force measuring accuracy |
± 0.5% of the indicated value |
| Data sampling frequency |
200times/sec |
| Resolution of testing machine |
The maximum load is 1/± 25000 yards, and the internal and external are not graded, and the overall resolution is unchanged |
| Load cell |
Basic configuration: tension and compression sensors (maximum load) |
| Effective test width |
150mm |
| Stretch space effectively |
500mm |
| Test speed range |
50-500 mm/min |
| Displacement measurement accuracy |
Within ± 0.5% of the indicated value |
| Test bench return function |
Manual or automatic selection, automatic or manual return to the initial test position after the test |
| Test bench safety device |
Up and down stroke limiting device |
| Overload protection |
The machine is automatically protected when the maximum load exceeds 10% |
| Fixture configuration |
One set of stretching clamp |
| Machine size |
420×3500×1520mm |
| Machine weight |
200 Kg |
