Lab Testing Equipment Horizontal Tensile Testing Machine
Lab Testing Equipment Horizontal Tensile Testing Machine

Lab Testing Equipment Horizontal Tensile Testing Machine

Product Details

Place of Origin: China

Brand Name: Skyline

Certification: ISO

Model Number: Lab Testing Equipment

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiable

Packaging Details: polywood case

Delivery Time: 15 working days

Payment Terms: T/T, Western Union, MoneyGram

Get Best Price

Product Details

Product Description
Product Details
Highlight:

1000kN Horizontal Tensile Testing Machine

,

ISO Horizontal Tensile Testing Machine

,

100mm/min Horizontal Tensile Tester

Test Space:
15m
Range:
1000KN
Measuring Range:
10~1000KN
Accuracy Level:
Grade 1
Piston Stroke:
1000mm
Cylinder Diameter:
280mm
Test Space:
15m
Range:
1000KN
Measuring Range:
10~1000KN
Accuracy Level:
Grade 1
Piston Stroke:
1000mm
Cylinder Diameter:
280mm
Product Description

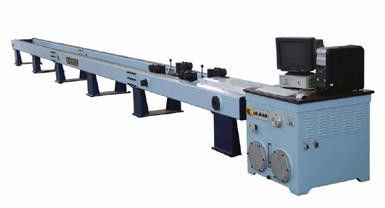

Horizontal Tensile Testing Machine



Description of lab testing equipment:

The microcomputer controlled horizontal tensile testing machine adopts the characteristics of hydraulic force application, computer automatic data collection, printing results, convenient operation, high test accuracy, and stable force application. It can be used for tensile, tensile shear, tear and other mechanical properties tests of metal, non-metal and other materials, and can meet various test methods and standards such as ISO, GB. This equipment is widely used in wire and cable industry and quality inspection institutions at all levels.

Technical parameter:

Range 1000kN
Resolving power 1/250000
Measuring range 10kN－1000kN
Indication accuracy level Grade 1
Piston stroke 1000mm
Displacement measurement range 0-1000mm
Displacement resolution 0.007mm
Displacement accuracy ±1％
Test speed range 0.5-100mm/min
System working pressure 20MPa
Cylinder diameter 280mm
Motor power 5.5kW
Maximum test space 15m
