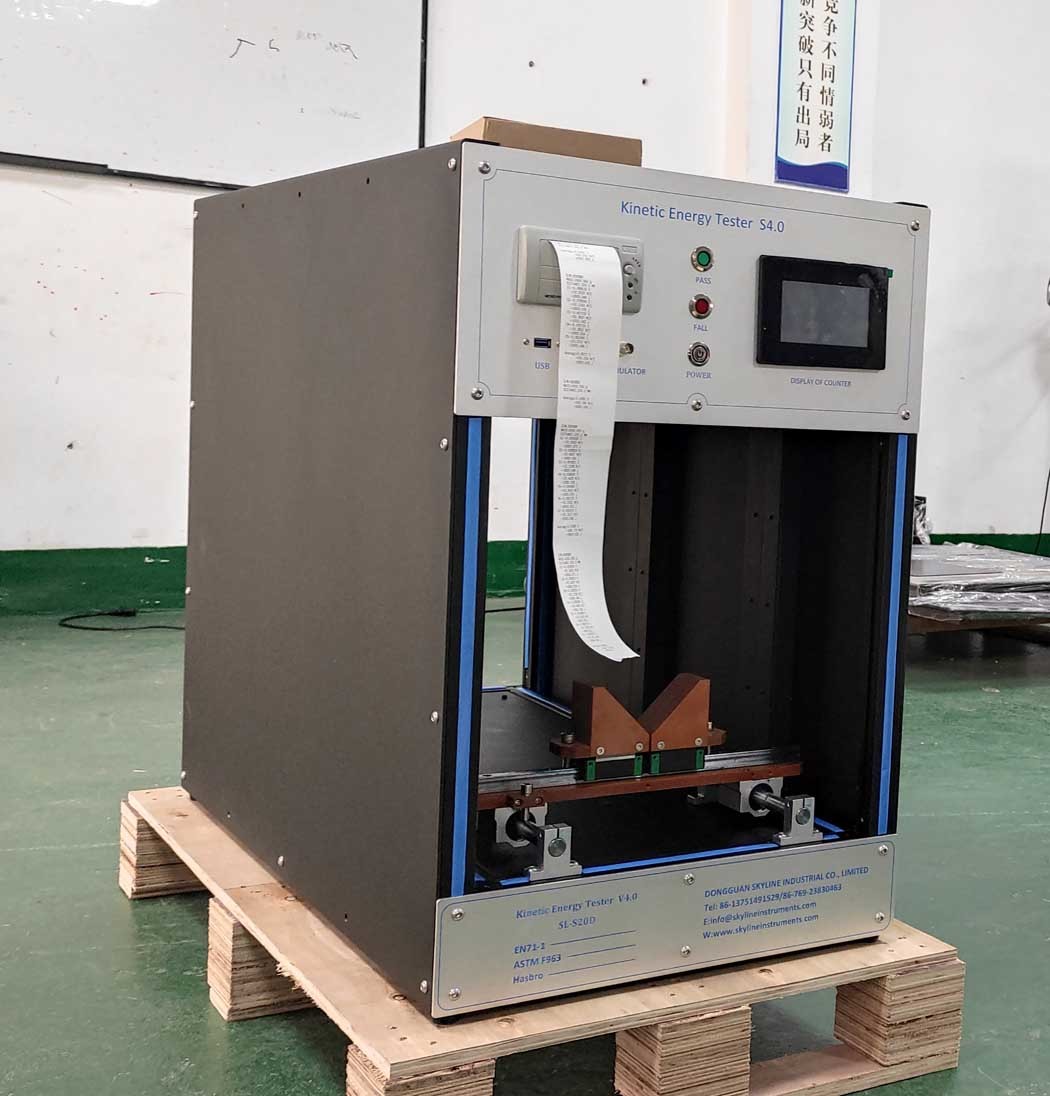

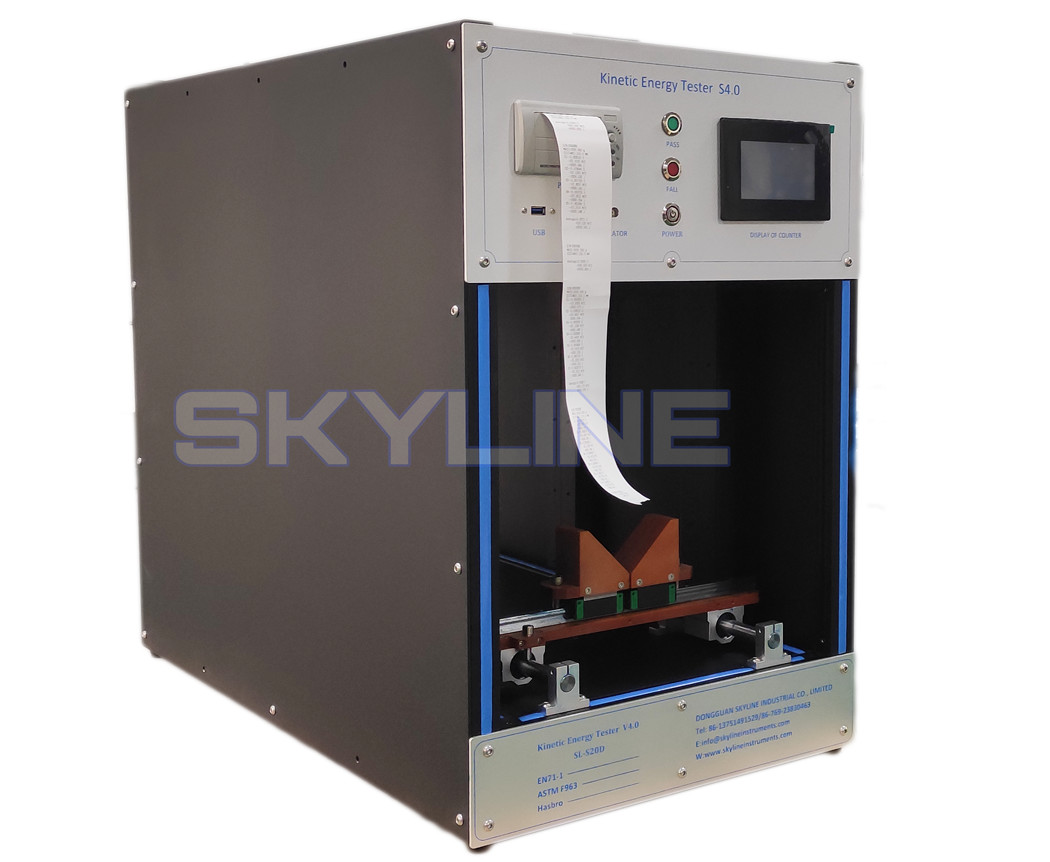

0.007M/S Kinetic Energy Tester Sensor Distance Select 100-500mm

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-S20D

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Plywood case

Delivery Time: 5 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5 pcs / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                0.007M/S kinetic energy tester, 500mm kinetic energy tester, 100mm kinetic energy tester


SKYLINE:	Toy Kinetic Energy Tester	Timer Error:	<0.1ms
Sensor Distance Select:	100-500mm	Sensor Distance Error:	Internal Testing Channel Size
Sensors Distance:	<0.5mm	Volume(WxDxH):	897347

SKYLINE:	Toy Kinetic Energy Tester
Timer Error:	<0.1ms
Sensor Distance Select:	100-500mm
Sensor Distance Error:	Internal Testing Channel Size
Sensors Distance:	<0.5mm
Volume(WxDxH):	897347

Product Description

Kinetic Energy Tester Toys Testing Equipment Sensor distance select 100-500mm

Kinetic Energy Tester 10-50CM.pdf

Product introduction
KE Tester is a equipment to check the speed of a object (DUT) which pass though the test tunnel .According to the result read out and mass value of DUT, we could calculate the kinetics energy value and know how danger of DUT it is .
Inside the test tunnel of this KE tester, there have three sets of Infra-Red sensor group. One set for start the timer and other two for stop the timer.
Each group include 30 pairs Infra-Red Sensor. They are located in opposite plate and the Infra-Red light are transmitter and receiver are fix in a opposite and signal will transmit and receive though a 1mm narrow gap.

Basic requirements
1. 220V AC Input
2. DUT need to go through the tunnel in horizontally.
3. Diameter of DUT need to greater than 5mm
4. Speed of DUT must lower than 140m/s

Technical parameters

Number of samples	1/time
Maximum timing	15.000000S
Timing range	0.000001--15.000000S
Speed display range	0.007M/S—100M/S
Induction spacing	100-500mm, error 0.1mm
Minimum diameter of sample	5mm
Volume(WxDxH)	897347
Weight (approx.)	≈85kg
Power supply	1∮ AC 220V 3A

Basic Function /Specification

Time counter interval	1/10000s
Timer Error	<0.1ms
Sensor distance select	100-500mm
Sensor distance error	<0.5mm

Assist Part

1. Bullet Simulator.

2. 40cm wide test tunnel

3. Keyboard

4. PC Interface Cable

5. 2” thermal printer

6. Spare thermal paper

Company Profile.pdf

0.007M/S Kinetic Energy Tester Sensor Distance Select 100-500mm 0

Simulator

0.007M/S Kinetic Energy Tester Sensor Distance Select 100-500mm 1
