BIFMA X5.1-2002 Test No 9 102kg (225lb) Chair Swivel Testing Machine

Place of Origin CHINA
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-T03
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 35 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Chair Swivel Testing Machine Cycle Rate: 5 ~ 15 Rotations Per Minute
Test Cycle: 120,000 Times Loading Weight: Adjustable
Counter: 999,999
Highlight:

furniture testing machine

,

chair testing machine
Product Description

Chair Swivel Testing Machine



Application

This test applies to all types of chairs with a swivel seat.

Purpose of Test: This machine is designed to evaluate the ability of a chair to withstand stresses and wear caused by repeated swiveling.



Specifications
According to test Standard: BIFMA X5.1-2002, Test No. 9
1. Applicability: This test applies to all types of chairs with a swivel seat.

Purpose of Test: this machine is designed to evaluate the ability of a chair to withstand stresses and wear caused by repeated swiveling.



Machine Mechanism



 Loading weight  102kg (225lb) adjustable
 Cycle rate  5 ~ 15 rotations per minute
 Rotation test axis  ±360°
 Test cycle  120,000 times
 Counter  999,999
 Loading weight  adjustable
 Control Module  PLC and LCD touch screen
 Power  1∮ AC 220V 50Hz 5A



Standards
DIN 4551, EN 1728, EN 1335, NEN 1812, BIFMA X5.1, BIFMA X5.4, BSI/BS 5459, EN 581-2





Reference Doc: BIFMA X5.1-2017 Swivel Test

Chair Test Step



  • The chair shall be restrained on a platform. Either the seat or the platform shall be restrained from rotation.
  • If the seat adjustable, set it to the maximum seat position. Set all other adjustable features to the normal use condition.
  • A 122 kg (270 lb.) load shall be placed on the seat such that the centre of gravity of the load is 51 to 64 mm (2 to 2.5 in) forward of the centerline of the rotational axis as shown in Picture 1.
  • The cycling device shall be adjusted to rotate the lesser of the following: the available range of rotation or 360 degrees ± 10 degrees. If the available range of rotation is less than 360 degrees, the rotation of the test machine shall be adjusted such that the swivel mechanism touches but does not override the stops. The rotation may be either bidirectional or unidirectional.
  • For chairs that swivel 360 degrees, a cycle is one full rotation. For chairs that swivel less than 360 degrees, one cycle is rotating from one stop to the other stop.
  • The seat or platform shall rotate for 60,000 cycles at a rate between 5 and 15 rotations per minute.
  • If the seat height is adjustable set the height to its lowest position.
  • For all chairs, continue the test for an additional 60,000 cycles to a total of 120,000 cycles.

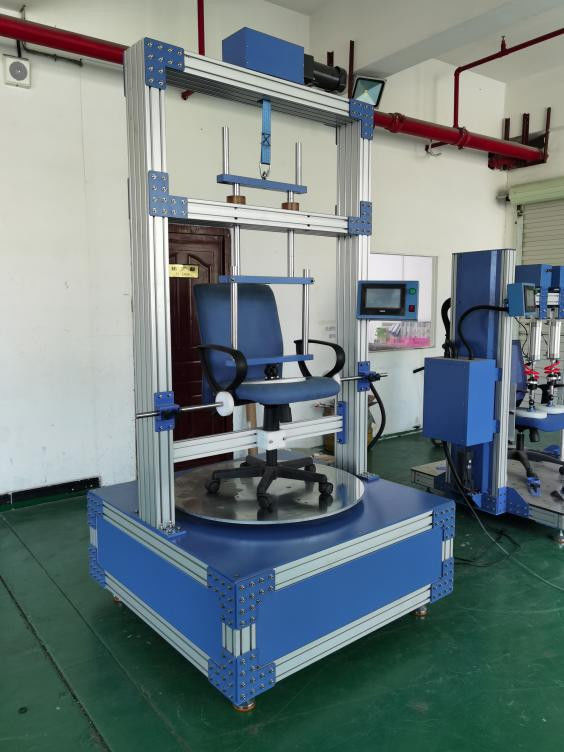

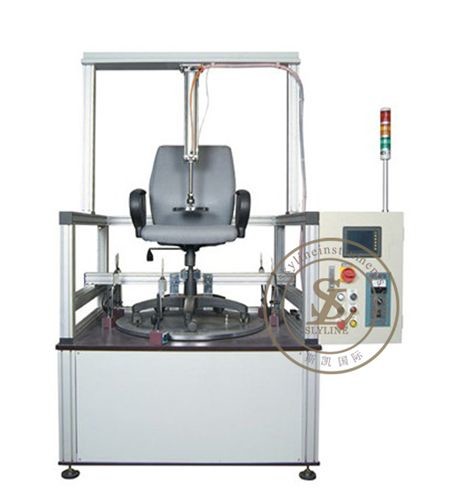

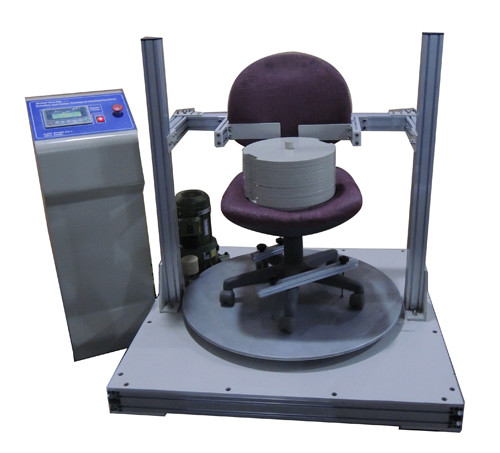

Testing Image:



BIFMA X5.1-2002 Test No 9 102kg (225lb) Chair Swivel Testing Machine
