SKYLINE:	Footwear Dynamic Water Proofness Tester	Test Quantity:	2 Sets
Flexing Angle:	25±2°	Flexing Speed:	60±6cpm
Counter:	LCD 0~999,999	Dimension （W×D×H）:	85×70×80cm
Weight (Approx):	240kg	Power:	1∮，AC220V,50/60Hz,3A

Control Mode	PLC Touch screen control
Test Quantity	2 Sets
Flexing Angle	25±2°
Flexing Speed	60±6cpm
Counter	0～999,999
Dimension(W×D×H)	85×70×80cm
Weight	240kg
Power	1∮,AC220V,50/60Hz,3A

Lab Testing Equipment

Flammability Testing Equipment

Fire Testing Equipment

Test Equipment

Mattress Testing Machine

Environmental Test Chamber

Toys Testing Equipment

Oil Analysis Testing Equipment

Footwear Testing Equipment

Furniture Testing Equipment

Tensile Strength Testing Machine

Textile Testing Equipment

Leather Testing Equipment

Temperature And Humidity Test Chamber

Electronic Testing Equipment

Building Materials Flammability Tester

Cosmetics Testing Equipment

Lab Testing Equipment

Flammability Testing Equipment

Fire Testing Equipment

Test Equipment

Mattress Testing Machine

Environmental Test Chamber

Toys Testing Equipment

Oil Analysis Testing Equipment

Footwear Testing Equipment

Furniture Testing Equipment

Tensile Strength Testing Machine

Textile Testing Equipment

Leather Testing Equipment

Temperature And Humidity Test Chamber

Electronic Testing Equipment

Building Materials Flammability Tester

Cosmetics Testing Equipment

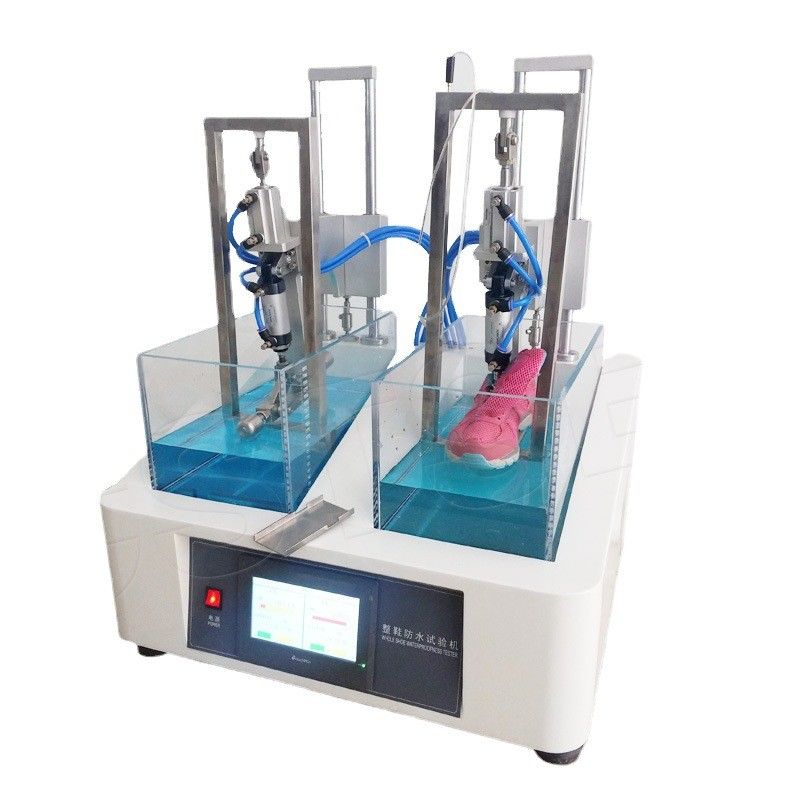

SATRA TM230 Footwear Testing Equipment Dynamic Footwear Water Resistance Tester

AC220V Footwear Testing Equipment

PLC Footwear Testing Equipment

AC220V Footwear Testing Machine

SATRA TM 230 Dynamic Footwear Water PenetrationTester

Product introduction

It is designed to determine the dynamic water resistance of all types of footwear. The water tank is filled with a specified volume of colored water. A specimen is put on the artificial foot and flexed at a given angle and speed, and inspected at intervals for water penetration.

Principle

Technical parameter

AC 220V Oil Breakdown Voltage Tester,

200W Oil Breakdown Voltage Tester,

Lab Testing Equipment

Flammability Testing Equipment

Fire Testing Equipment

Test Equipment

Mattress Testing Machine

Environmental Test Chamber

Toys Testing Equipment

Oil Analysis Testing Equipment

Footwear Testing Equipment

Furniture Testing Equipment

Tensile Strength Testing Machine

Textile Testing Equipment

Leather Testing Equipment

Temperature And Humidity Test Chamber

Electronic Testing Equipment

Building Materials Flammability Tester

Cosmetics Testing Equipment

It is designed to determine the dynamic water resistance of all types of footwear.
The water tank is filled with a specified volume of colored water. A specimen is put on the artificial foot and flexed at a given angle and speed, and inspected at intervals for water penetration.
