Closed Cup Pensky Martens Flash Point Tester ASTM D93
Closed Cup Pensky Martens Flash Point Tester ASTM D93
Closed Cup Pensky Martens Flash Point Tester ASTM D93
Closed Cup Pensky Martens Flash Point Tester ASTM D93

Closed Cup Pensky Martens Flash Point Tester ASTM D93

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE , Calibration Certificate

Model Number: SL-OA10

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit

Price: negotiated

Packaging Details: plywood case

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10 unit / month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Closed Cup Pensky Martens Flash Point Tester

,

ASTM D93 Pensky Martens Flash Point Tester

,

ASTM D93 Closed Cup Flash Point Tester

SKYLINE:
Closed Cup Flash Point Tester
Standard:
ASTM D93
Oil Cup Inner Diameter:
50.7mm~50.8mm.
Oil Cup Depth:
55.7mm~56.0mm
The Scribed Line Depth Of Capacity Of Testing Oil:
33.9mm~34.3mm.
Capacity Of Testing Oil:
About 70ml
Thermometers:
Scale 20°C~150°C, Division 1°C.
Keywords:
Oil Analysis Equipment
Name:
Closed Cup Flash Point Tester
Dimension:
410X2600X300mm
SKYLINE:
Closed Cup Flash Point Tester
Standard:
ASTM D93
Oil Cup Inner Diameter:
50.7mm~50.8mm.
Oil Cup Depth:
55.7mm~56.0mm
The Scribed Line Depth Of Capacity Of Testing Oil:
33.9mm~34.3mm.
Capacity Of Testing Oil:
About 70ml
Thermometers:
Scale 20°C~150°C, Division 1°C.
Keywords:
Oil Analysis Equipment
Name:
Closed Cup Flash Point Tester
Dimension:
410X2600X300mm
Product Description



ASTM D93 Flash Point By Pensky-Martens Closed Cup Flash Point Testing Equipment Pensky-Martens Flash Point Tester

ASTM D93 Flash Point Oil Analysis Equipment Closed Cup Flash Point Tester





Description Of Closed Cup Flash Point Tester

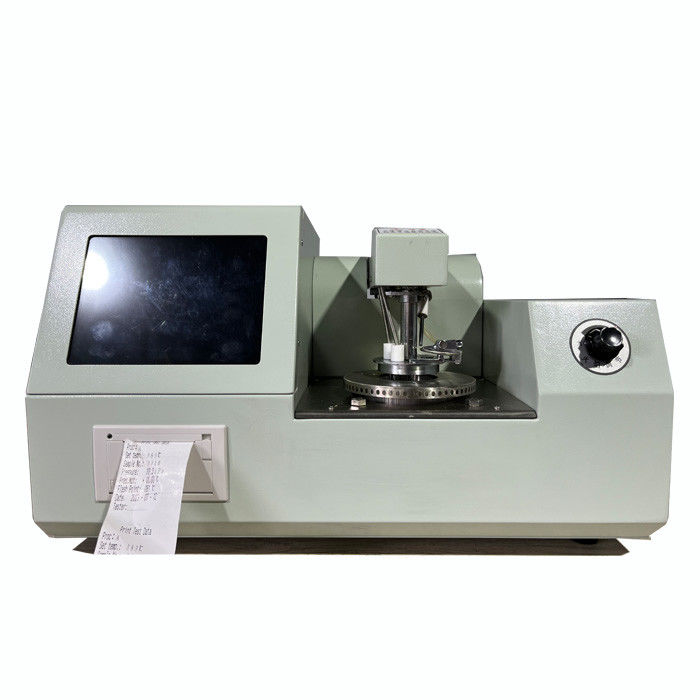

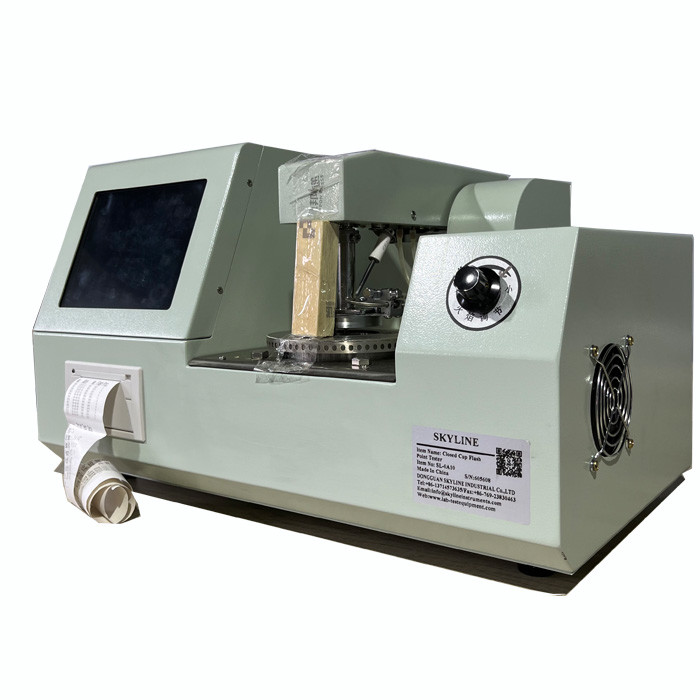

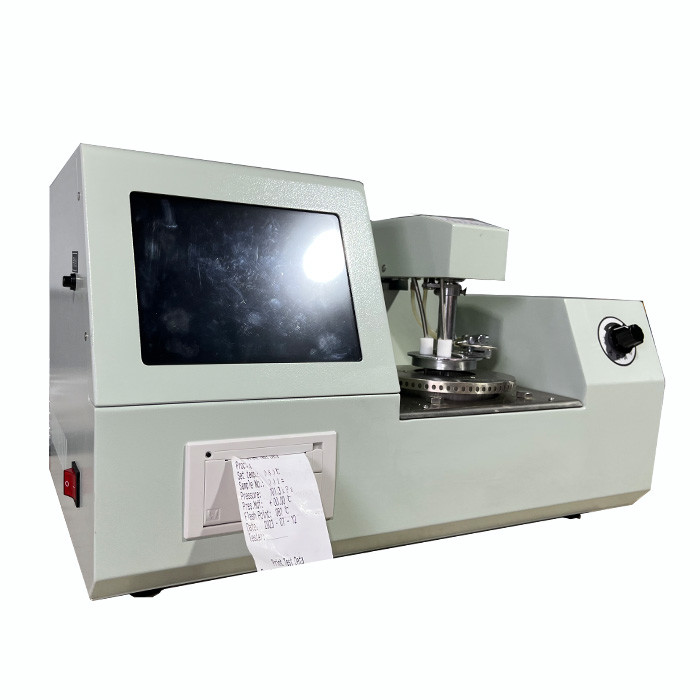

Closed Cup Flash Point Automatical Measuring Instrument is mainly used for the determination of closed flash point value of petroleum products. The instrument adopts microcomputer technology, large screen LCD liquid crystal display, Chinese menu, power failure storage, instrument has automatic ignition, display, Locking and printing results, automatic cooling and other functions, with the advantages of accurate measurement, good repeatability, stable and reliable, easy to operate. Widely used in electric power, petroleum, chemical, commodity inspection, scientific research and other departments, in line with ASTM D93, standard method requirements.



Features

1. This instrument is designed as per ASTM D93.

2. The heating power is continuously and sleeplessly adjustable. The power is shown visually by voltmeter. The temperature control mode is advanced and reasonable.

3. The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.

4. Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.

Closed Cup Pensky Martens Flash Point Tester ASTM D93 0

Specifications



 Display   Large screen LCD module display.
 Measuring range  room temperature ~ 300 ° C
 Temperature detection  platinum resistance
 Accuracy  ≥104°C±2°C ≤104°C±1°C
 Ignition mode  electric ignition
 Cooling method  forced air cooling
 Self-test function  test head, igniter, fan, etc
 Standard  in accordance with ASTM D93 GB261-83 ISO-2719
 Power source  AC 220V ± 11V, 50Hz ± 2.5HZ
 Power  ≤100VA
 Ambient temperature  10 ° C ~ 35 ° C
Weight  15KG
 Use ambient humidity  ≤ 85%

Closed Cup Pensky Martens Flash Point Tester ASTM D93 1

Closed Cup Pensky Martens Flash Point Tester ASTM D93 2
