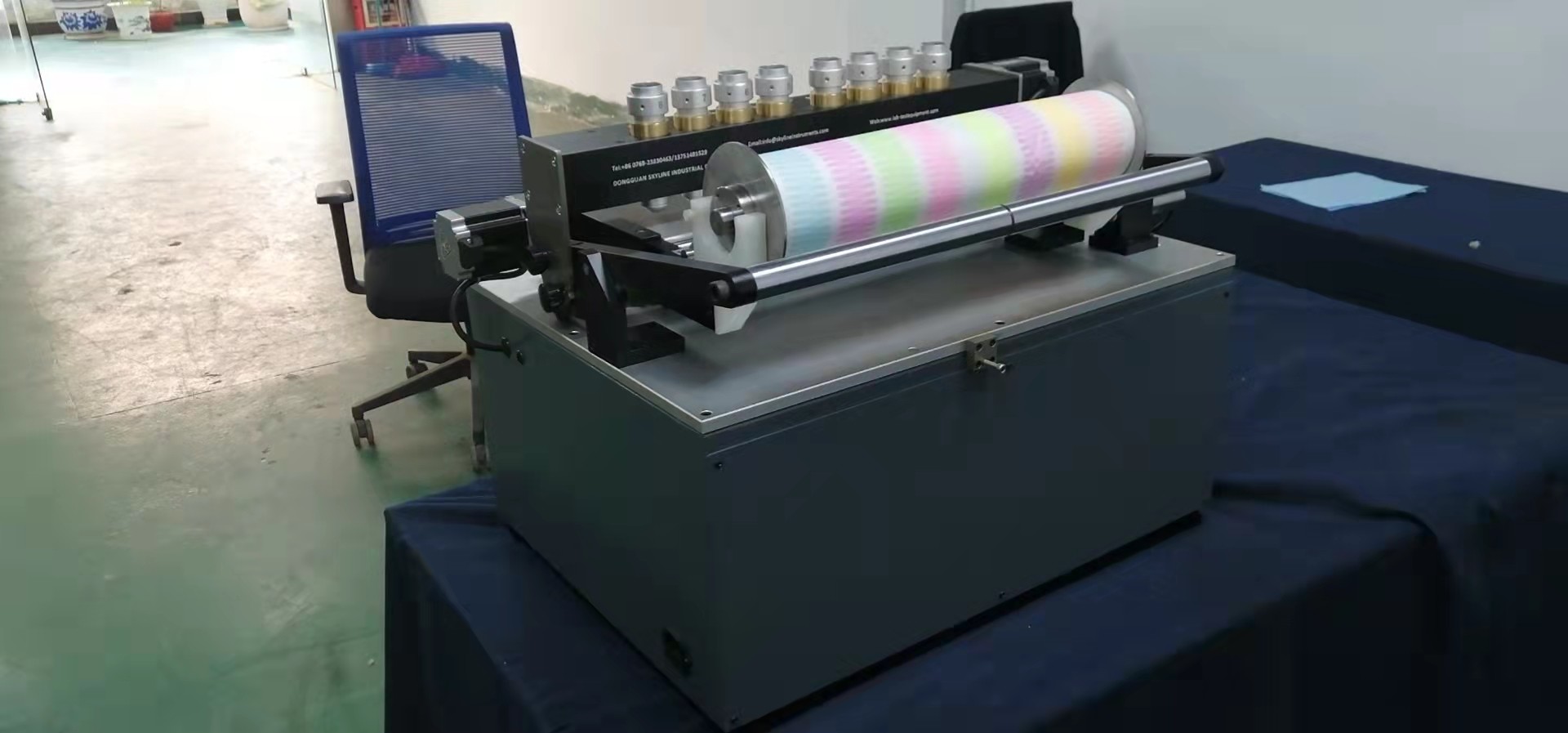

ISO 27668-1 Zig Zag Writing Test Equipment 50g Load

Place of Origin China
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-PL002
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Plywood case
Delivery Time 20 working days
Payment Terms Western Union, T/T,
Supply Ability 2 pcs/ month
Product Details
SKYLINE: Zig Zag Write Test Equipment Load Weight Weight: 50g+/-0.5g
Maximum Sample Diameter: ≤φ24mm Writing Angle: 60°~90° Adjustable
Sample Single Stroke / Full Stroke: 1.375 Inches/2.75 Inches Weight: 60kg
Packing Dimension: 80cm*66cm*66cm Gross Weight: 90kg
Highlight:

Zig Zag Writing Test Equipment

,

50g Load Writing Test Equipment
Product Description

Zig Zag Writing Test Equipment



Use

This Writing Test Equipment is used to detect the refill of a pen, and draw a Z shape at a certain speed to check whether the stitching meets the performance required by Article 3.6 of ISO27668-1.



Principle

This test equipment simulates the state of writing with a pen, puts the sample on a certain load and makes it write a Z mark at a certain speed, and checks the structure and performance of the sample.



According to the standard

This test equipment is made with reference to the requirements of Article 3.6 of ISO27668-1.



Technical parameters

 Sample  Writing pen
 Load weight weight  50g+/-0.5g
 Maximum sample diameter  ≤φ24mm
 Number of samples  8 pcs/time
 Sample single stroke / full stroke  1.375 inches/2.75 inches
 Writing speed  1.0m/min-10.0m/min adjustable
 Refill Rotation speed  0.1-3.0 revolutions/min adjustable
 Line spacing between 1mm and 5mm  1.0mm-10.0mm adjustable
 Writing angle  60°~90° adjustable
 Volume (WxDxH)  72cm*57cm*46cm
 Weight  ≈60Kg
 Power Supply 220V, 20A
