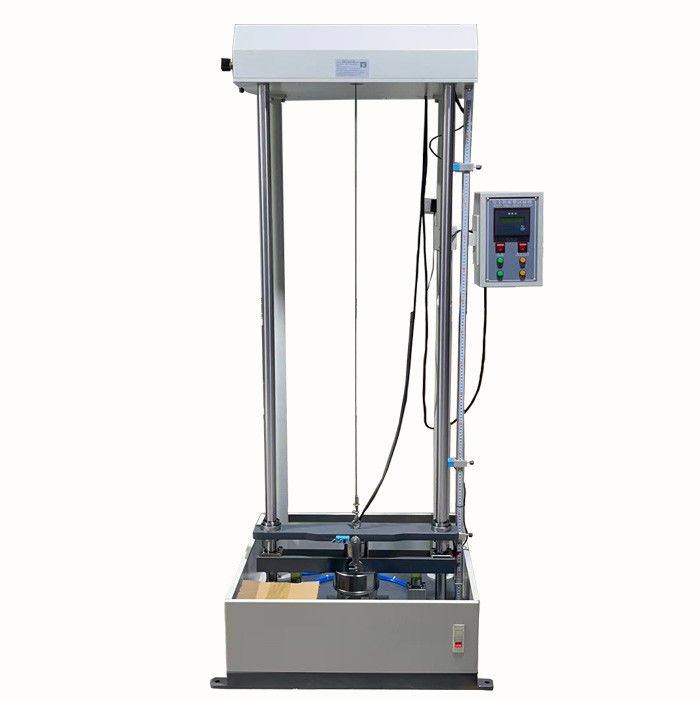

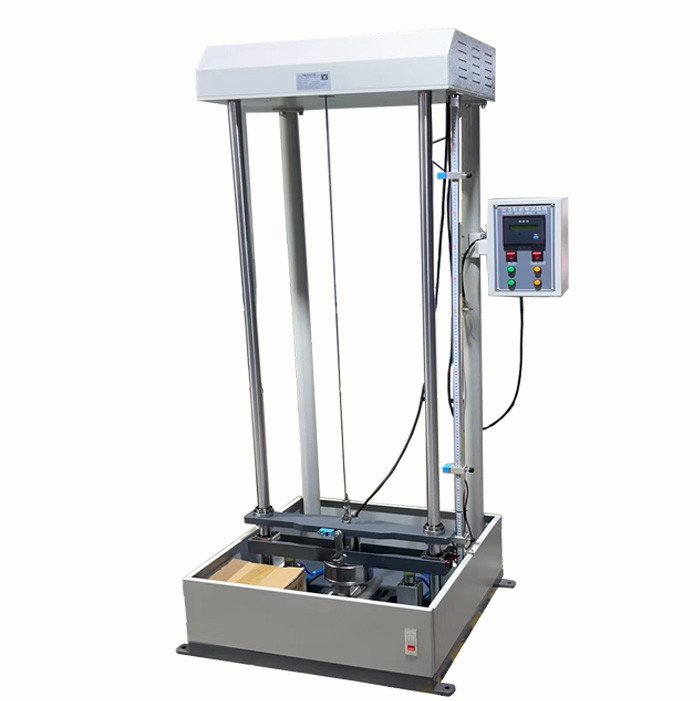

Safety Shoe Toe Drop Impact Testing Machine with LCD Display
Safety Shoe Toe Drop Impact Testing Machine with LCD Display
Safety Shoe Toe Drop Impact Testing Machine with LCD Display
Safety Shoe Toe Drop Impact Testing Machine with LCD Display
Safety Shoe Toe Drop Impact Testing Machine with LCD Display

Safety Shoe Toe Drop Impact Testing Machine with LCD Display

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L27

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 15 work days

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Shoe Toe drop impact testing machine

,

LCD Display drop impact testing machine

SKYLINE:
Safety Shoe Impact Tester
Impact Energy:
10~200J Optional
Stroke:
0~1200mm Adjustable
Dimension:
69*65*188cm
Weight （approx.:
205 Kg
Power Supply:
AC220V 50Hz/60Hz (specified By User)
Speedometer:
LCD Display, Very Accurate.
Impact Hammer:
(20±0.2) Kg (EN, GB) And (22±0.2) Kg (CSA, USA) Each Set
SKYLINE:
Safety Shoe Impact Tester
Impact Energy:
10~200J Optional
Stroke:
0~1200mm Adjustable
Dimension:
69*65*188cm
Weight （approx.:
205 Kg
Power Supply:
AC220V 50Hz/60Hz (specified By User)
Speedometer:
LCD Display, Very Accurate.
Impact Hammer:
(20±0.2) Kg (EN, GB) And (22±0.2) Kg (CSA, USA) Each Set
Product Description



Safety Shoe Toe Drop Impact Testing Machine/Shoes Impact Test Machine EN ISO 20344/Footwore Impact Resistance Tester

EN ISO 20344 Safety Shoe Impact Tester



Product information

The impact hammer of the toe impact tester falls from a set height and impacts the toe of safety shoes or protective shoes once with a certain amount of energy. After the impact, the minimum height value of the sculptured clay cylinder placed in the toe of safety shoes or protective shoes beforehand is measured, and the size of the sculpture and whether the protective head of the toe is cracked and translucent are used to assess the good or bad smashing performance of the toe of safety shoes or protective shoes.



Purpose

Evaluate the smash resistance of the toe cap of a safety or protective shoe.



Test principle

The impact hammer of the toe impact tester falls from the set height, impacts the toe of the safety shoe or the protective shoe with a certain energy once, and is placed in the toe of the safety shoe or the protective shoe by the measurement after the impact. The minimum height of the sculpture clay cylinder, as well as the size of the toe cap and whether the protective toe cap in the toe cap breaks and transmits light to evaluate the safety performance of the safety shoe or the protective shoe toe.

Safety Shoe Toe Drop Impact Testing Machine with LCD Display 0

Technical parameter

 Impact energy  10~200J Optional
Impact hammer (20±0.2) kg (EN, GB) and (22±0.2) kg (CSA, USA) each set.
 Stroke  0~1200mm Adjustable
Dimension 69*65*188cm
 Lifting method   Motor drive
 Weight (approx.)  205 kg
 Power  1∮ AC 220V 50Hz(or specified by user)



Applicable standards

BS-953, EN20344-2012, ASTM F2413-05, CSA-Z195, and other standards.

Suitable for all types of safety shoes and protective shoes.



Shoe Toe Impact Tester.pdf

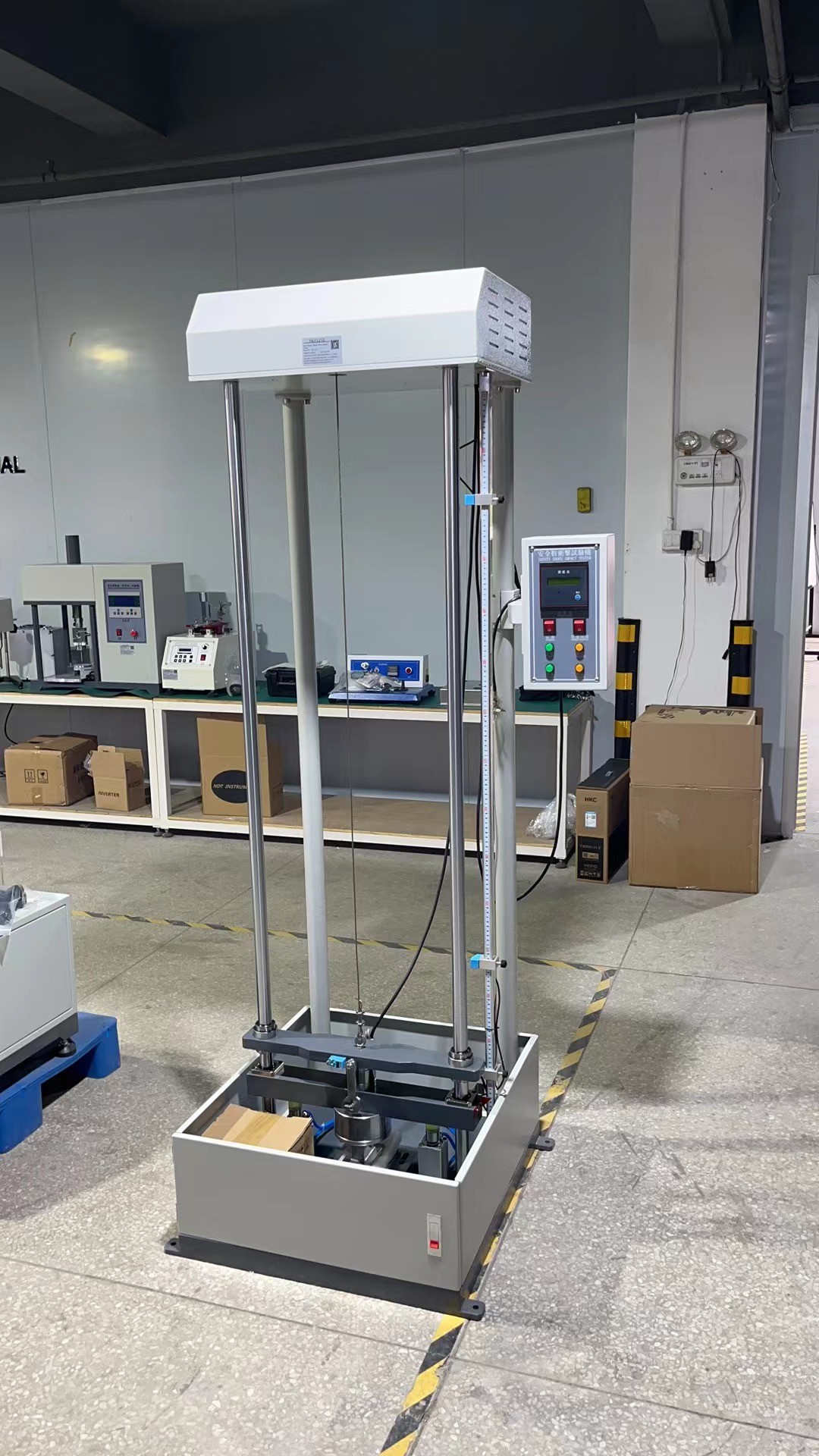

Safety Shoe Toe Drop Impact Testing Machine with LCD Display 1Safety Shoe Toe Drop Impact Testing Machine with LCD Display 2
