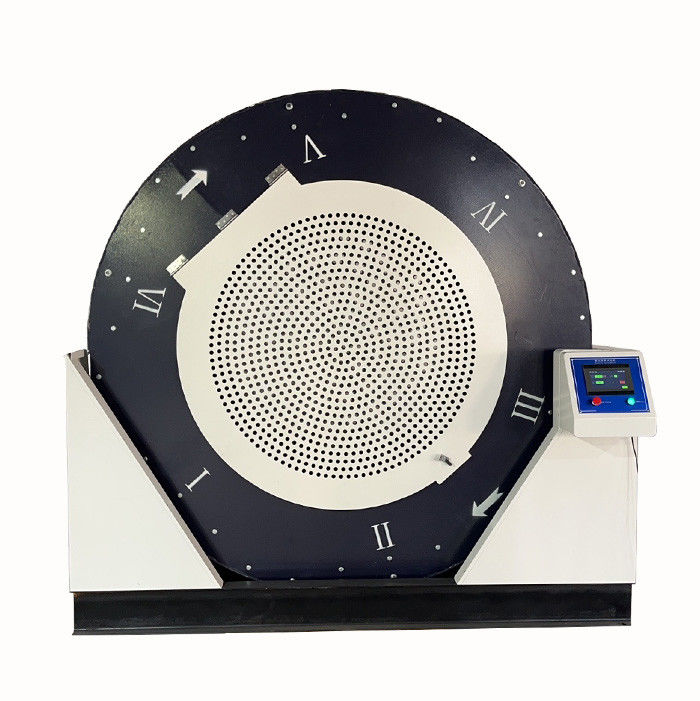

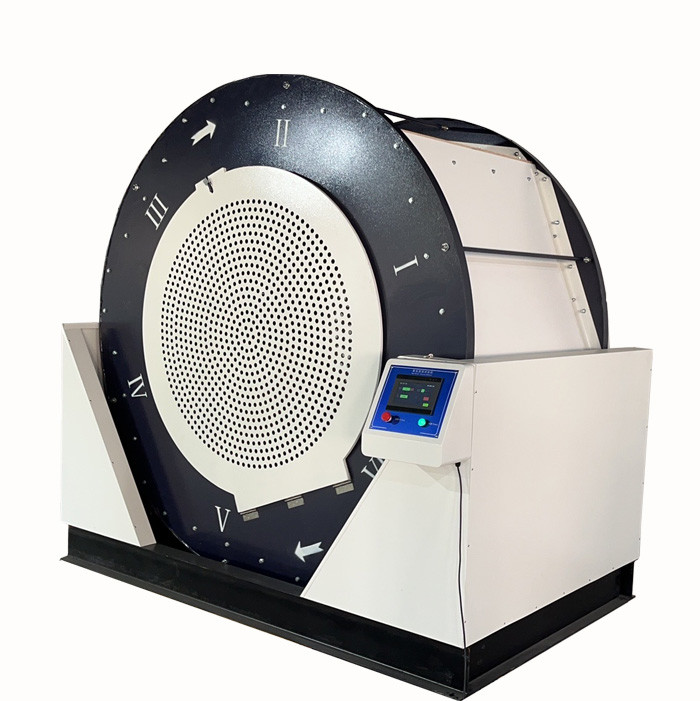

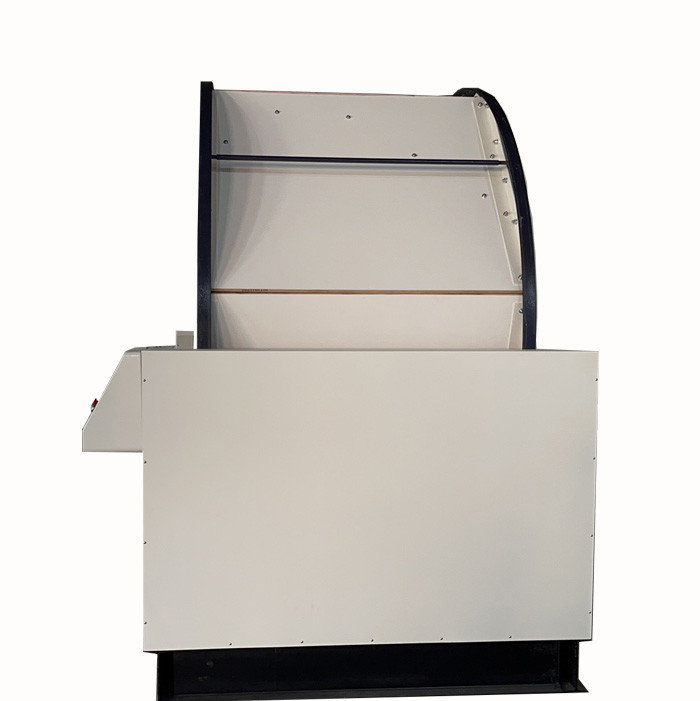

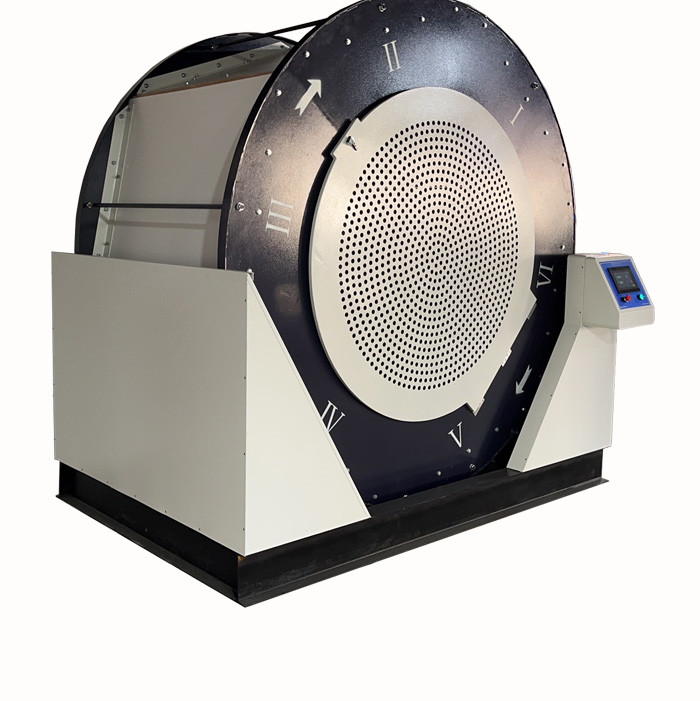

220V Tumbling Barrel Test Machine High Precision

Place of Origin Dongguan, China
Brand Name SKYLINE
Certification CE, ISO
Model Number SL-R512
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden Case
Delivery Time 7 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 200sets/month
Product Details
Roller Inner Diameter: ￠2200mm Depth: 1250mm
Drum Speed: 2 Rpm/min Barrier Specifications: 96 Degrees Barrier 3 Groups. Conical Block 1 Piece. Horizontal Block 1 Piece
Specimen Size: (maximum) 1000 × 700 × 400mm Counter: 0 ~ 99,999 Can Be Set (automatic Stop)
Transmission System: Aiwan Chang Yi Speed Motor Stable Operation Machine Size: 250*160*250cm (L*W*H)
Power Supply: 220V 50HZ Weight: 2000KG
Highlight:

220V tumbling barrel test machine

,

High precision tumbling barrel test machine

,

220V tumble test machine
Product Description



Suitcase Drum Drop Testing Machine/Luggage Roller Drop Tester /Tumbling Barrel Test Machine/tumble test machine

Luggage Roller Impact/Drum Drop Testing Machine





Product description

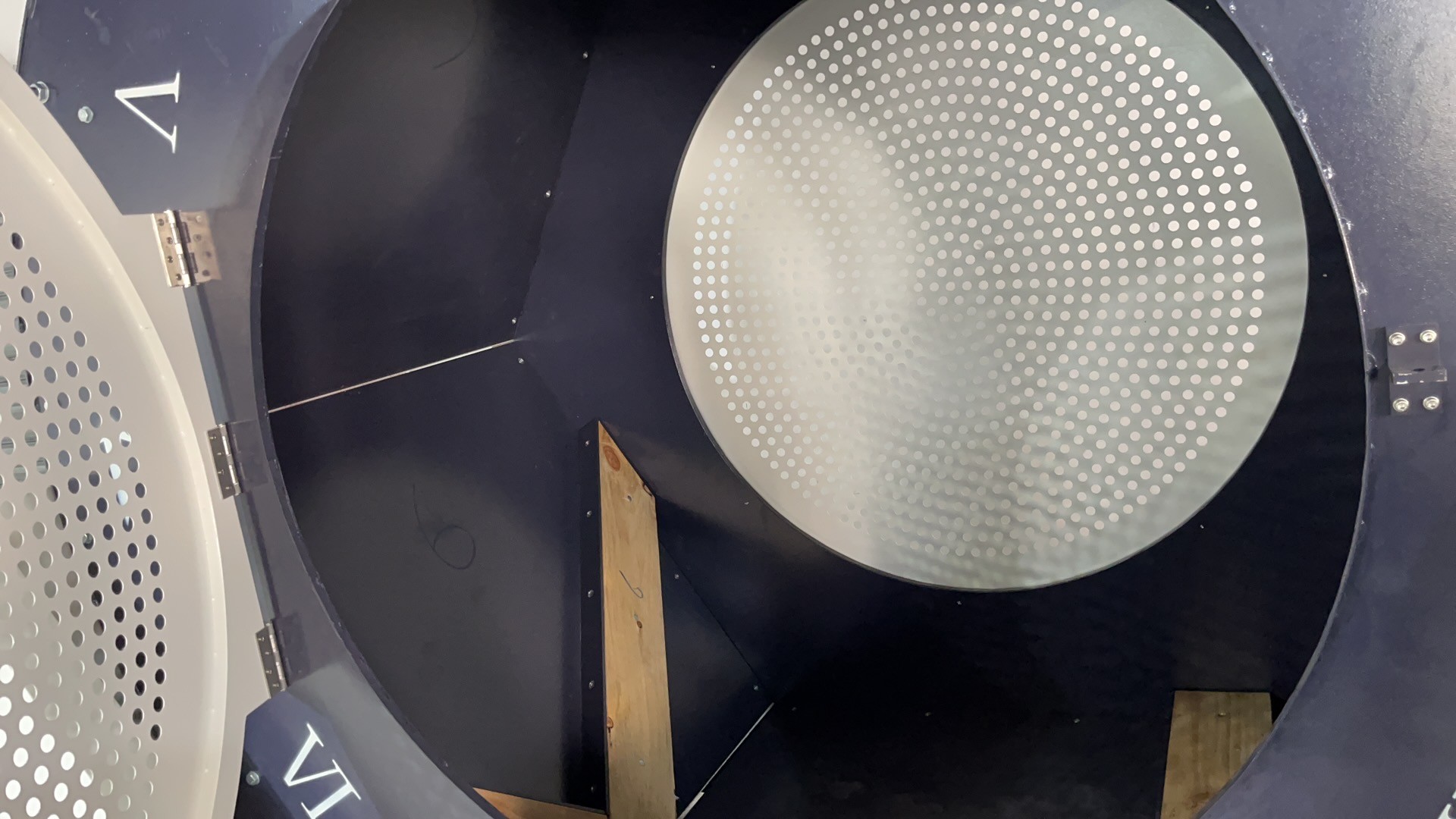

This product is designed and manufactured in accordance with ISTA and GB standards, and is designed to simulate the tumbling and impact of suitcases and other packaging boxes during transport. The boxes are rolled and impacted in the drum, and after the specified number of revolutions are completed, the damage condition of the boxes is checked as the basis for product improvement.



Based on the standard

QB/T4116-2010 luggage roller drop test method QBT 2155-2010 travelling luggage.

220V Tumbling Barrel Test Machine High Precision

Technical parameters

Roller inner diameter ￠2200mm
Depth 1250mm
Drum speed 2 rpm/min
Obstacle specifications 96 degrees obstacle 3 groups. Conical block 1 piece. Horizontal block 1 piece
Specimen size (maximum) 1000 × 700 × 400mm
Counter 0 ~ 99,999 can be set (automatic stop)
Transmission system Taiwan Chang Yi speed motor stable operation
Machine size 250*160*250cm (L*W*H)
Power supply 220V 50HZ
Weight 2000Kg
