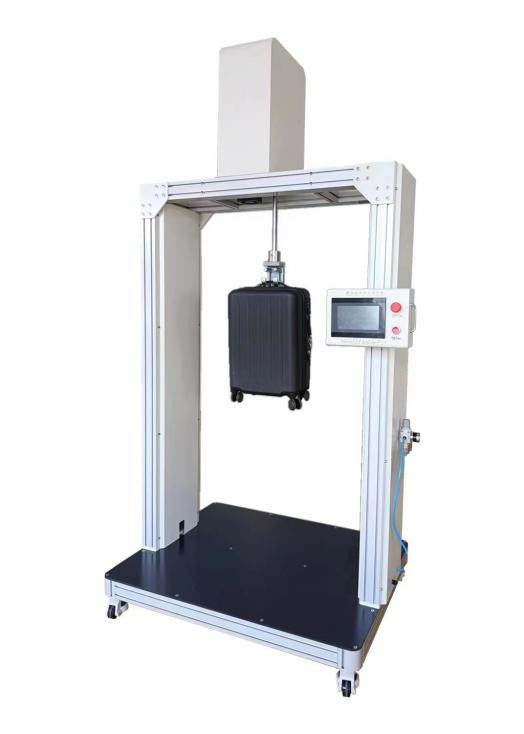

Handle Jerking Impact Tester / Bag, Suicase, Lugage, Knapsack, Packsack, Rucksack Testing Machine
Product Introduction
Luggage Handle Jerk Tester is used for comprehensive testing of bags, which is under a certain load and speed of 30 times/min impact test, to detect the luggage handle, side handle, tie rod, buckle, sewing and other damage. The test results can be used as a reference for quality improvement.
Test Standards
QB/T2922-2007, QBT 2155-2010,QBT 1333-2010
Technical Parameters
|
Drop distance
|
150mm(adjustable) |
|
Spring constant
|
17.54±0.88 N/mm |
|
Frequency
|
20±2 cycles/ min |
|
Testing Speed
|
5~20 times/min, (adjustable) |
|
Times Setting
|
0~9999, automatic stop |
|
Dimension
|
270cm(H)*120cm(L)*140(W)cm |
|
Weight
|
150Kg |
|
Power
|
1ø, 220V/50Hz |
Applications
-
Quality control testing for luggage and bag manufacturers
-
Handle and strap durability assessment
-
Seam and stitching integrity verification
-
Tie rod and buckle strength evaluation
-
Product development and R&D validation
-
Third-party testing laboratories
-
Retailer and brand pre-shipment quality inspection
Frequently Asked Questions
Q: What is this equipment used for?
A: It tests the durability of luggage and bag handles, side grips, tie rods, buckles, and seams under repeated impact—helping manufacturers catch failures before products reach customers.
Q: How does the tester work?
A: The specimen is suspended and subjected to a controlled drop at an adjustable speed (5–20 cycles/min). A calibrated spring delivers consistent impact force each cycle to simulate real-world handling stress.
Q: What standards does it comply with?
A: It meets Chinese industry standards QB/T 2922-2007, QB/T 2155-2010, and QB/T 1333-2010 for luggage and bag testing.
Q: What types of bags can be tested?
A: Suitcases, luggage, knapsacks, rucksacks, and similar carrying products—anything with handles, straps, or attachment points that endure jerking forces.
Q: Can I adjust the test parameters?
A: Yes. Drop distance (150 mm adjustable) and testing speed (5–20 cycles/min) are both user-configurable. The cycle counter can be set from 0 to 9,999 with automatic stop.
Q: What do I need to install this equipment?
A: A stable floor space of at least 270 cm × 140 cm and a standard 220V/50Hz single-phase power outlet. No special foundation or compressed air is required.
