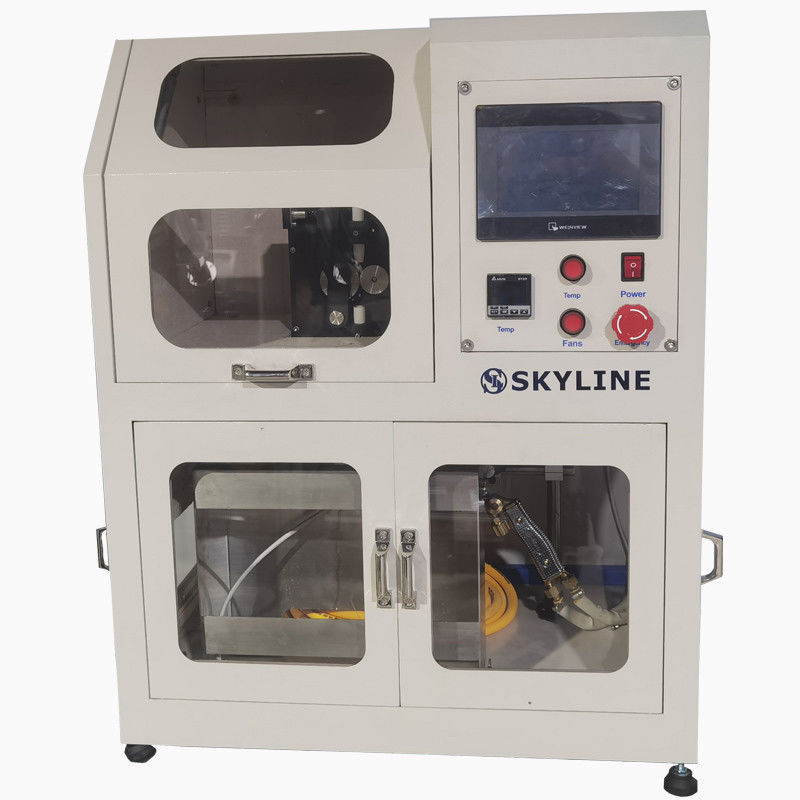

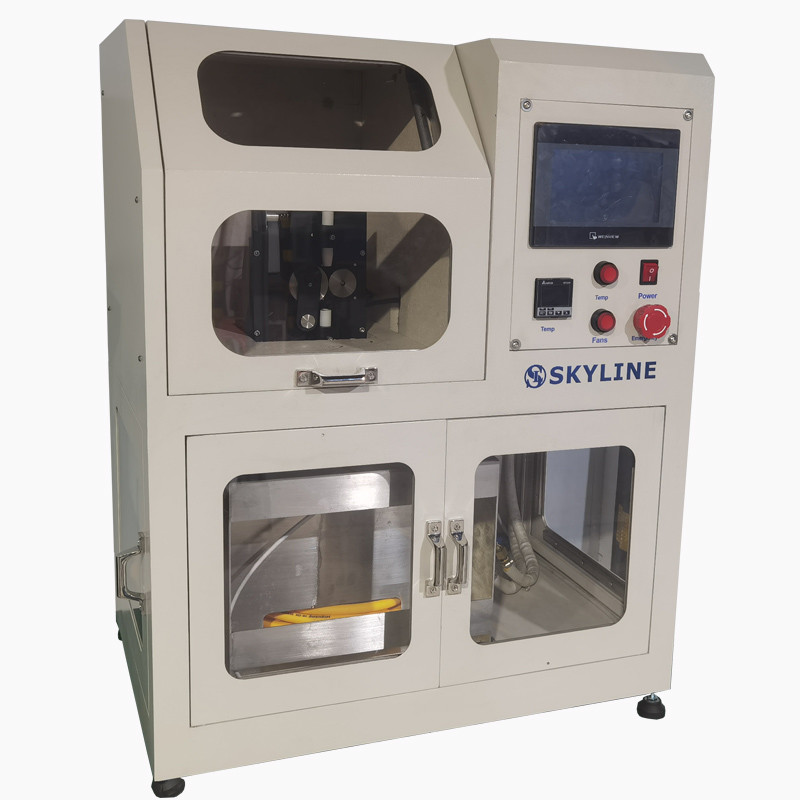

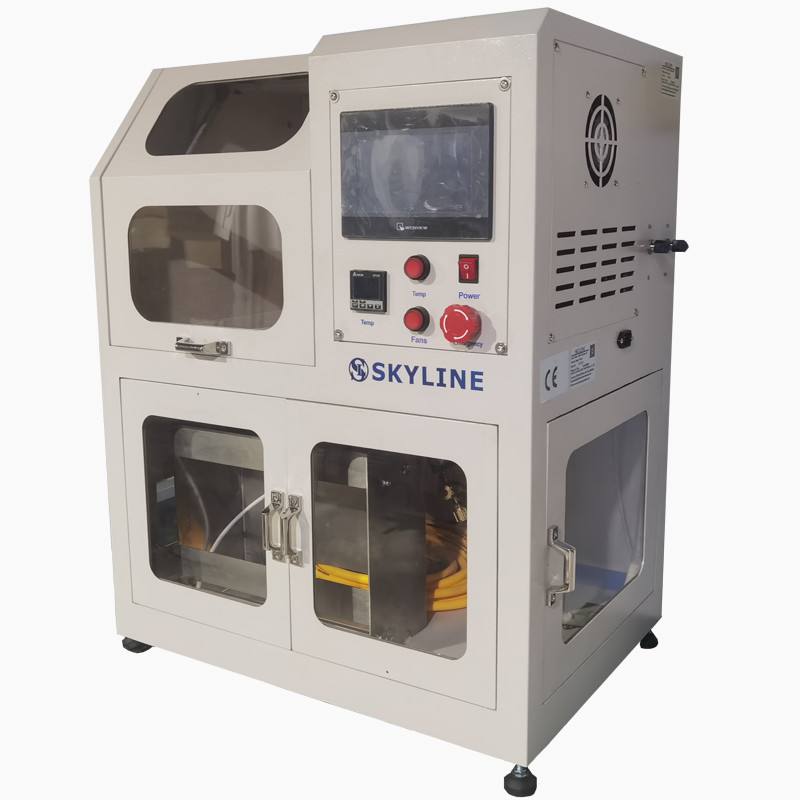

ISO 9150/BS EN 348 Protective Clothing Molten Metal Splashes Impact Resistance Tester
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL821
Minimum Order Quantity
1 unit
Price
negotiated
Packaging Details
Plywood case
Delivery Time
10 working days
Payment Terms
T/T, Western Union,PayPal
Supply Ability
Fire Testing Equipment
Product Details
Standard:
AQ 6103 ,ISO 9150:1988 , CSN EN 348:1992 ,GB 8965.2:2009, GB/T 17599:1998
Motor Speed:
Can Be Adjust
Dimension:
700mm (W) X 850mm (H) X 500mm (D)
Weight:
42kg
Installation Requirements:
Electrical Requirements: 220V, 50HZ, 5A
Gas Requirements:
Oxygen, Acetylene
Product Description
EN 384/ISO 9150 Molten Metal Splashes Impact Test Apparatus
Product Introduction
Projections of molten metal drops at a point on a vertical oriented test specimen and measurement of the number of the drops required to cause a 40 K temperature rise in a sensor behind the specimen.
Features
Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.
Senor for measuring the temperature linked to a recording device.
Holding frame and counterweights for the test specimen.
Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.
Needle valves adjust the O2 and acetylene flow rate.
LCD Screen display and control the motor speed.
Standard
AQ 6103 ,ISO 9150:1988 , CSN EN 348:1992 ,GB 8965.2:2009, GB/T 17599:1998
Environmental Requirements: Temperature (20+2)degree C, Humidity (65+5)%
Gas requirements: oxygen, acetylene
Applications
- Protective clothing for welding and allied processes
- Foundry workers' PPE exposed to molten metal splashes
- Textile fabrics and composite materials for thermal protection
- Quality control and certification testing for safety apparel manufacturers
- R&D of new flame‑resistant and heat‑protective materials
- Material performance comparison for industrial safety evaluations
Frequently Asked Questions
Q1: What standards does the SL‑FL53 comply with?
A1: It meets AQ 6103, ISO 9150:1988, CSN EN 348:1992, GB 8965.2:2009, and GB/T 17599:1998 — covering China, Europe, and international requirements in one unit.
Q2: What materials can it test?
A2: Any pliable fabric or composite material used in protective clothing — welding apparel, foundry suits, and thermal barrier textiles.
Q3: What exactly does it measure?
A3: It counts how many molten metal droplets (0.50 ± 0.05 g each, at 20 drops/min) it takes to raise the sensor behind your fabric by 40 K — giving you a clear, objective protection rating.
Q4: How accurate and repeatable are the results?
A4: Very. The stepping motor delivers a precise 10 g/min feed rate, needle valves give fine gas control, and the 175 g counterweight ensures consistent specimen tension — so you get reliable, repeatable data every time.
Q5: Is it easy to operate?
A5: Absolutely. Set the motor speed on the LCD screen, light the torch, and start the test. Temperature rise is logged automatically — no complicated programming required.
Q6: What are the installation requirements?
A6: 220V, 50Hz, 5A power; oxygen and acetylene gas supply; install at 20 ± 2°C and 65 ± 5% RH. Compact 700×850×500 mm footprint, 42 kg — fits most labs.
Q7: What industries use this equipment?
A7: Foundries, metal processing facilities, protective clothing manufacturers, industrial safety laboratories, and R&D facilities.
Q8: How does the test work?
A8: Molten metal droplets are projected onto a vertically oriented specimen, and a sensor behind it measures the number of drops needed to raise the temperature by 40 K.
