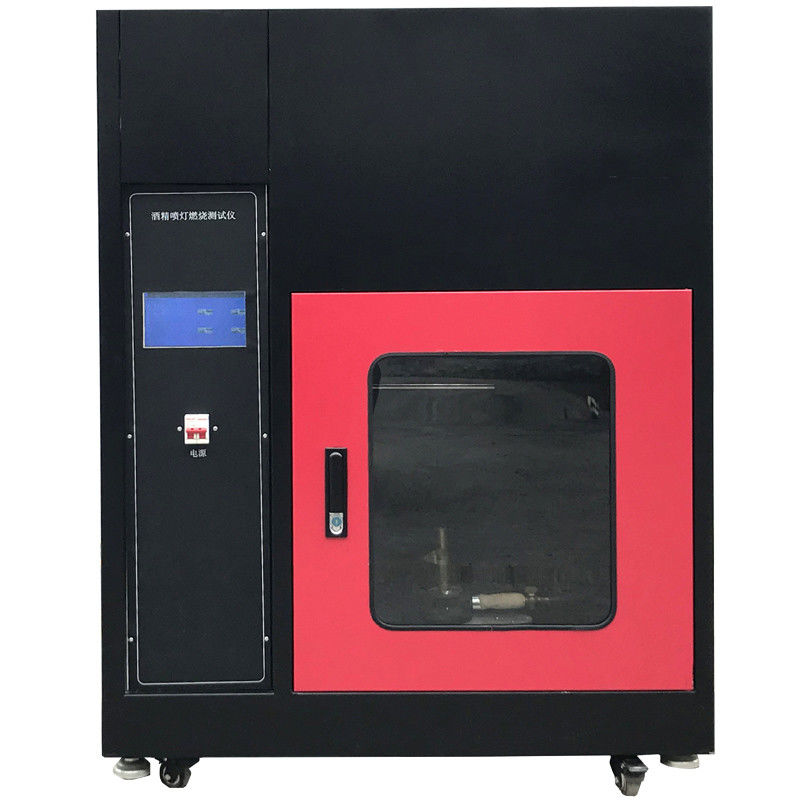

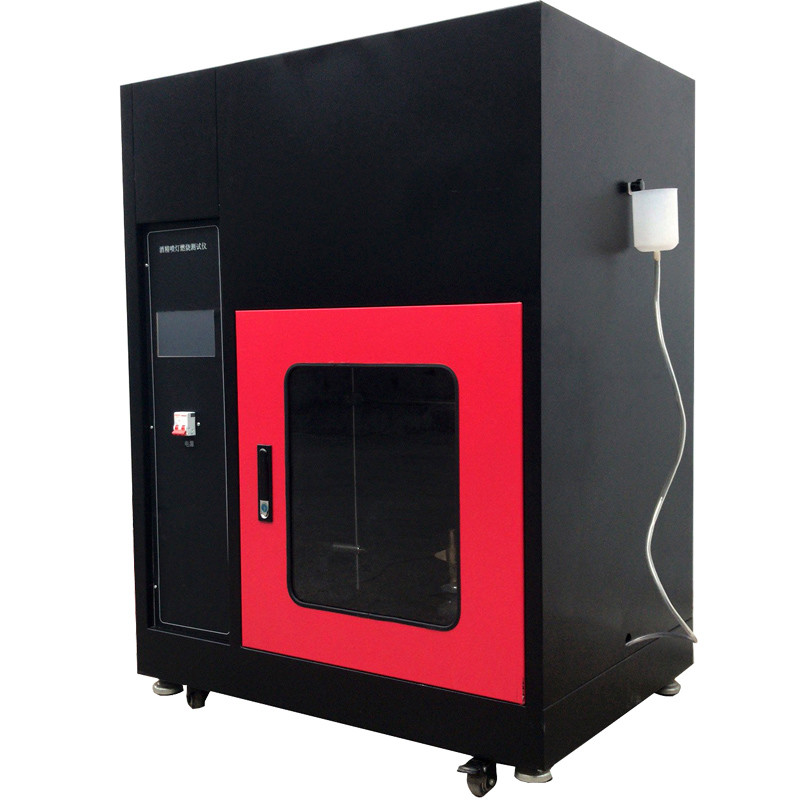

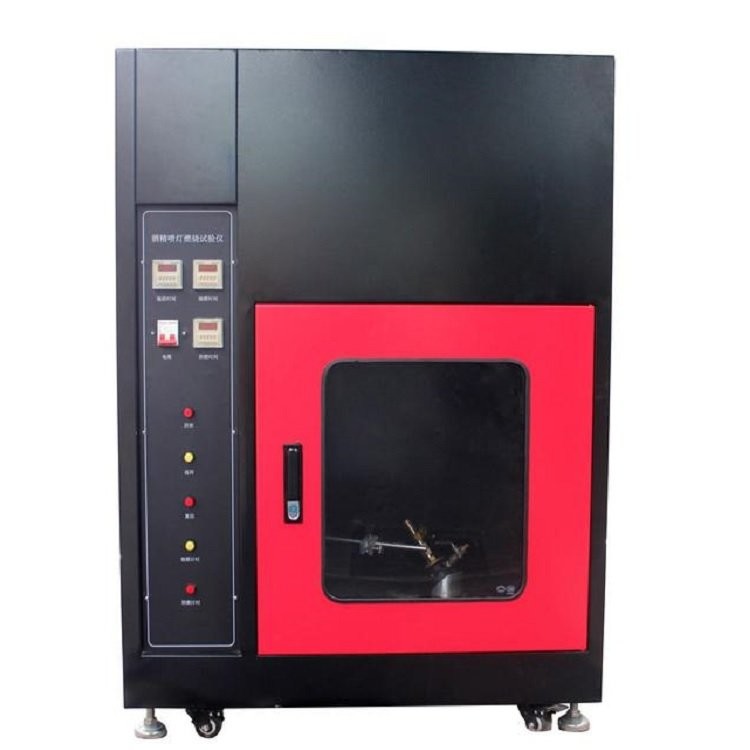

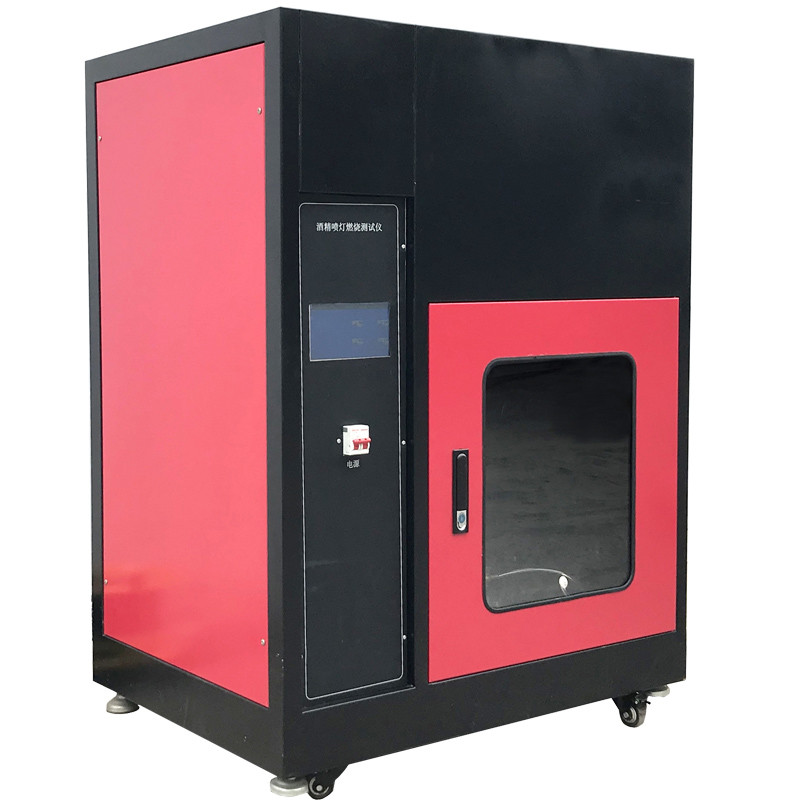

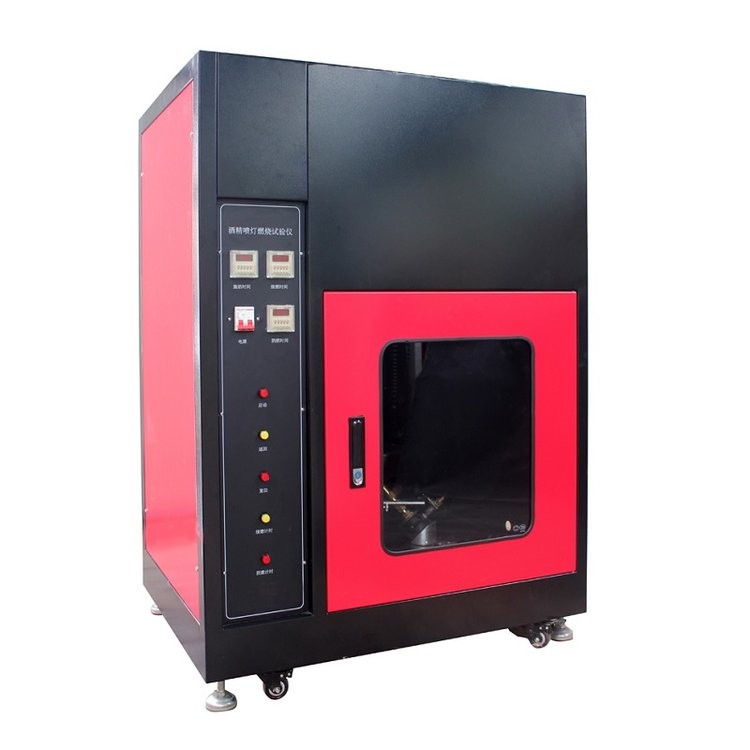

MT-182 Fire Resistance Tester Alcohol Burner Combustion Tester
Introductions
Alcohol Burner combustion tester is suitable for the determination of flame retardant performance of flame retardant conveyor belts for coal mines, polymer products for use underground in coal mines, plastic pipes for use underground in coal mines, rubber pipes for use underground in coal mines, hoses and hoses for use in hydraulic braces, steel wire rope hauling conveyor belts for use in coal mines, steel wire rope core conveyor belts for use in coal mines, rubber cushioning rollers for use in coal mines, and so on, and it is the test equipment for flame retardant performance of non-metallic products for use in coal mines (windsocks for use in coal mines, windsock-coated fabrics for use in coal mines, transporting It is the test equipment for flame retardancy of non-metallic products for coal mine (wind pipe, wind pipe coated cloth, transportation, pipe, plastic net, cable, glass fiber reinforced plastic products, non-metallic shell of instrument and non-metallic supporting parts of coal mine products, etc.).
Standards
MT 181-181 "the coal mine safety inspection specifications with plastic tubing", 558.1 MT - 2005 "the coal mine with plastic tubing polyethylene pipes, section 1, 914-2008 - MT coal used flame-retardant fabric core conveyor belt, MT113, MT164, MT165, MT383-1995, MT147, MT141, MT157, MT191, MT449, MT450, MTT98 standard and GB/T3685-1996 such as the conveyor belt alcohol burner combustion performance specifications and test methods, GB16413-1996" the coal mine with fiberglass products safety inspection specification"
Technical parameters
|
Burning time
|
0 to 9999 seconds can be set arbitrarily, the standard is 30 seconds. 2
|
|
Bright flame and incandescence time timer
|
0 ~ 9999 seconds, precision: ± 0.1 seconds;
|
|
Combustion test box size
|
660mm × 660mm × 1065mm
|
|
Fuel
|
5% (V/V) methanol and 95% (V/V) ethanol mixture
|
|
Flame temperature
|
960±60℃
|
|
Flame height
|
150mm～180mm adjustable
|
|
Fuel consumption
|
2.55±0.15mL/min
|
|
Alcohol Burner
|
Hanging type
|
|
Burning time
|
Automatic timing
|
|
Bright flame and blaze time
|
Automatic timing
|
|
Flame height
|
Adjustable
|
|
Weight
|
60KG
|
|
Packing volume
|
0.85 cubic meters
|
|
The inner box body is pure black (standard requirements of the inner box body for the dark color)
|
|
Steel plate electrostatic spraying box, comes with a ventilation device
|
|

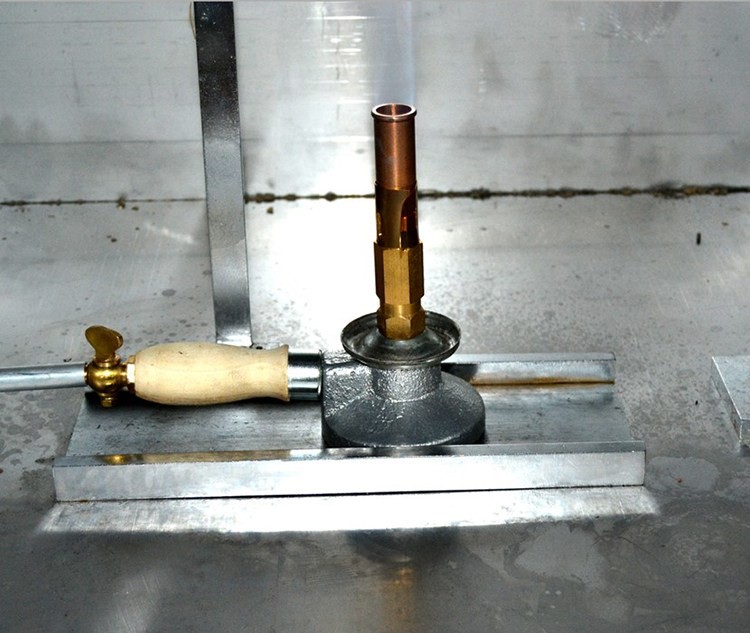

Pure copper spitfire head, equipped with preheating tank, preheating operation is simple
|
|
Equipped with flame adjustment device, according to the standard requirements of the test flame height
|
|
Equipped with a spitfire manual handle, moving the spitfire safe and convenient
|
