Swivel Durability Tester Chair Testing Machine BIFMA 5.1 For Seating Furniture

Place of Origin CHINA
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-T03
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 35 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Chair Swivel Testing Machine Loading Weight: 102kg (225lb)
Standard: DIN 4551, EN 1335, NEN 1812 And BIFMA 5.1. Brand: SKYLINE
Cycle Rate: 5 ~ 15 Rotations Per Minute. Warranty: 18 Months
Test Cycle: 120,000 Times Counter: 999,999
Highlight:

furniture testing machine

,

chair testing machine
Product Description
BIFMA 5.1 Furniture Testing Equipment Chair Swivel Testing Machine

Use

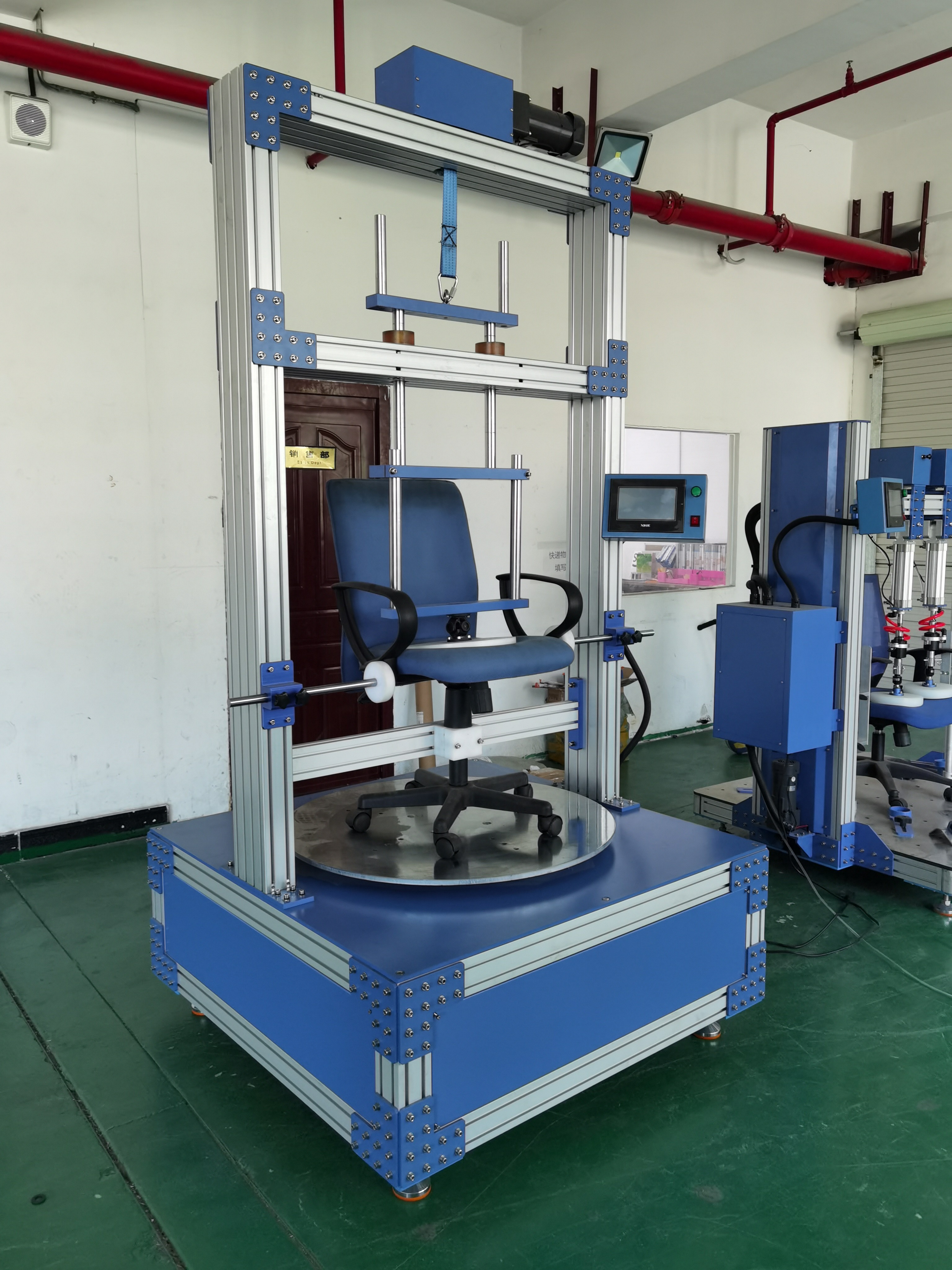

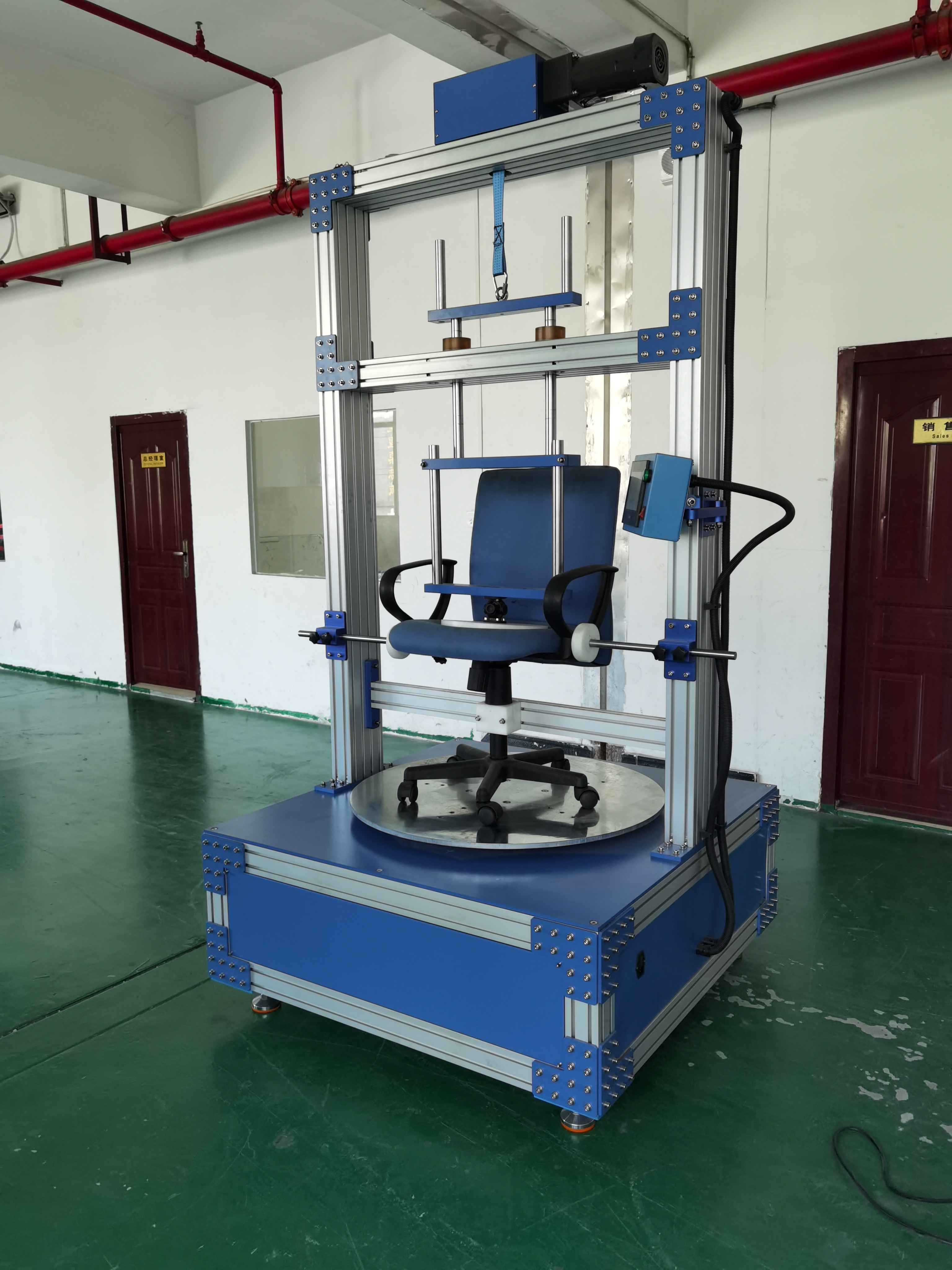

Swivel Durability Tester is used for seating furniture, with load pad and accessories for the fixing of the chair,acc. to DIN 4551, EN 1335, NEN 1812 and BIFMA 5.1.

It is used for office chairs, stools, gas springs, tested units are subjected either to the entire test procedure prescribed by the standards or to selected individual tests.

The test axes each have their own controllers assembled in the immediate vicinity, which are operated from a Touch panel and controlled by PLC.


Application
This test applies to all types of chairs with a swivel seat.
Purpose of Test: This machine is designed to evaluate the ability of a chair to withstand stresses and wear caused by repeated swiveling.


Specifications

 According to test Standard  BIFMA X5.1-2002, Test No. 9
 Applicability  This test applies to all types of chairs with a swivel seat.
 Purpose of Test  this machine is designed to evaluate the ability of a chair to withstand stresses and wear caused by repeated swiveling
 Machine Mechanism  Loading weight : 102kg (225lb)
 Cycle rate  5 ~ 15 rotations per minute
 Test cycle 120,000 times
 Counter  999,999
 Loading weight  Adjustable


Standards
DIN 4551, EN 1335, NEN 1812, BIFMA X5.1, BIFMA X5.4, BSI/BS 5459, EN 581-2



Consisting of

1 test frame

1 swivel test rig, driven electrically

1 actuator load controlled, piston diameter 80mm, piston stroke 500mm, 2500N

1 load pad, diameter 200mm in acc. to DIN EN 1335 with cardanic clamping connection

1 range of standard fixing elements

1 load cell 5kN - 1 set of stops, clamps
