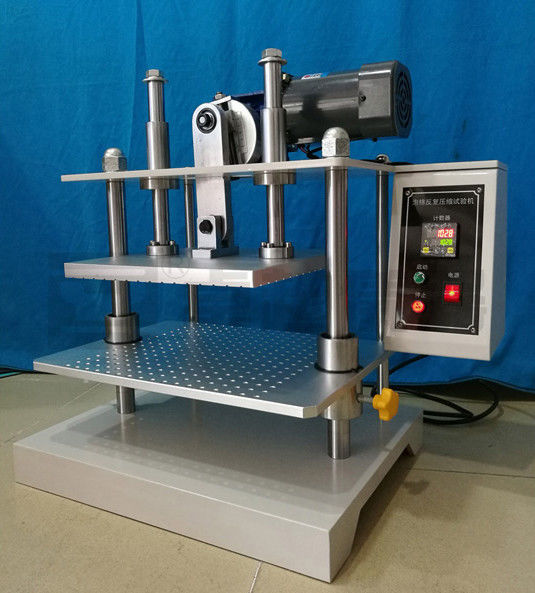

Foam Compression Fatigue / Durability Tester

Place of Origin China
Brand Name Skyline
Certification CE, Rosh, Calibration
Model Number SL-T009
Minimum Order Quantity 1
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union,
Supply Ability 15 sets per month
Product Details
Small Stainless Steel Testing Frame: 450X300X150mm Inner Dimensions Of Backrest Frame: 300x300mm (with 20x20mm Pitch Exhaust V Slots)
Inner Dimensions Of Chair Frame: 380x380mm (with 20x20xφ6mm Vents) Big Stainless Steel Testing Jig: 450X450X300mm
The Airflow Of Butane: 45 ± 2mL / Min（when 25℃)
Highlight:

BS 5852 Flammability Tester

,

Upholstered Furniture Testing Flammability tester

,

Foam Testing Equipment 200W
Product Description

Foam Repeated Compression Tester



Foam Compression Fatigue / Durability Tester

Product Introduction

After accurately measuring the thickness of the test piece, as for the compression plate of the testing machine, the height of the test piece was compressed by 50% at the frequency of 60 times per minute, and after 80,000 times of reciprocating compression, the thickness was placed at the room temperature for 30 minutes, and then the compression deformation rate was converted by measuring the thickness.



Test Standard

Standard basis: ISO-7214, JIS-K6767, K6382, GBT 10807-2006



Technical Parameters

Item Specification
inverter motor 200W
Dsplay mode Counter display times
Compression speed 70 r/min (Standard required 60 r/min)
Compression stroke 0~50mm (adjustable)
Count number 1~999999
Space between upper and lower pressure plate 200mm (adjustable)
Size of upper pressure plate 300x300mm (with 20x20mm pitch exhaust V slots)
Size of lower pressure plate 380x380mm (with 20x20xφ6mm vents)
Specimen size

JISK 6767

(Specimen: 50x50x25, compress 25%)

ISO 7214

(Specimen: 50x50x25, compress 25%)

GBT 10807-2006

(Specimen: 380x380x50, compress 50%)

JIS K6400-4-2004

(Specimen: ≥50x50x25, compress 50%)
Overall dimensions of instrument About 550mmx450mmx825mm(L*W*H)
Weight About 95kg
Power supply 1∮ AC 220V
Machine Power About 200W
Main test item Sponge and Foam Repeated Compression Test
