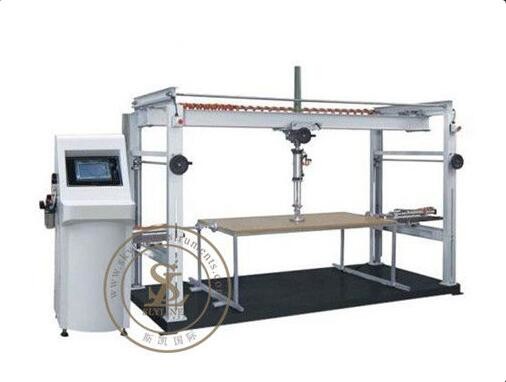

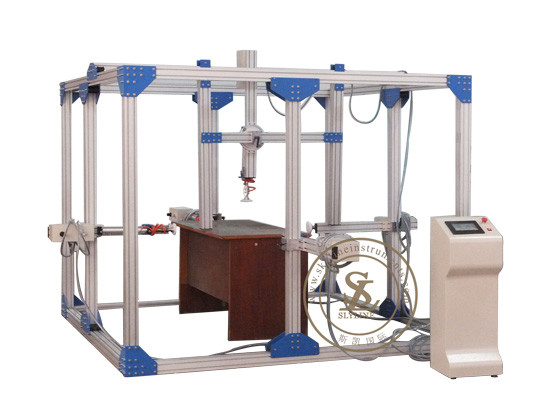

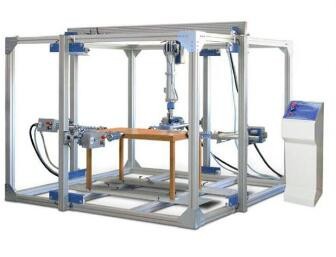

5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine

Name: 5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine
Brand: SKYLINE
SKU: SL-T26
Rating: 4.8 (183 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-T26

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: plywood case

Delivery Time: 35 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                furniture testing machine, stability testing equipment


Name:	Furniture Testing Machine	Controller:	PLC+ Touch Screen
Motor:	Air Cylinders	Standard:	EN 527-3, EN581-3 And BIFMA X5.1, IS5967
Air Supply:	7kgf/cm^2	Capacity:	2KN,4 Pcs；5KN,1 Pcs

Name:	Furniture Testing Machine
Controller:	PLC+ Touch Screen
Motor:	Air Cylinders
Standard:	EN 527-3, EN581-3 And BIFMA X5.1, IS5967
Air Supply:	7kgf/cm^2
Capacity:	2KN,4 Pcs；5KN,1 Pcs

Product Description

5 Air Cyliners PLC Control Toys Testing Equipment, Table furniture testing machine

Features

It equips 5 group pneumatic cylinder which is 1 set vertical device and 4 set calibrate velocity & thrust separately. Stroke is 500mm
Quadruplet brake of vertical device can be adjustment front and back & up and down (100mm~900mm)
Quadruplet brake of horizontal device can be adjustment up and down & left and right, it can cooperate with different test position.
It has several rows screws hole in the bottom panel of tester which is convenient to install different accessory or fixed test condition
It equipped the quick coupling location in front of pneumatic brake for each group which is convenient to change different load or grip.
Color touch screen & PLC controller, easy operate interface, display imaging and more inconvenient for operator.

This test machine is used for testing the strength and stability of tables and trollys.Can do following testing.

Strength Testing

Vertical static load test
Sustained load test
Horizontal static load test
Vertical impact test

Stability Testing:

1. Vertical stability test
2. Horizontal impact test.

Technical Parameter

Basic Test Frame	2.5x2.5x2m,be made of 80x80mm Alu.material
Load air cylinder	diameter 50mm, 4 pcs,stroke 300mm,max load force up to 1500N
Impact cylinder	diameter 50mm, 1pcs, stroke 400mm
Load air cylinder	diameter 80mm,1pcs,stroke 500mm, max load force up to 2500N
force sensor	high precision sensor,capacity 2KN,4 pcs；5KN,1 pcs
Control way	touch screen + PLC control
Counter	0~999999 times (can by adjusted)
Force adjust	precision pressure valve equipment with sensor to disply
Air supply	7kgf/cm^2
Power	1∮ AC 220V 50Hz 5A

Testing Standards

EN 1730:2012
EN 527-3, EN581-3 and BIFMA X5.1, IS5967
EN 1725:1998 7.3 Durability test
EN 1725:1998 7.5 Durability of bed edge
EN 1725:1998 7.6 Vertical static load test

5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine 0
