1000mm 800mm 600mm Electronic Testing Equipment IEC60335 Stability Test Bench
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL-SE011
SKYLINE:
IEC 60065 Stability Test Bench
Bearing Capacity:
125kg,80kg,50kg
Surface Diameter:
1000mm,800mm,600mm
Angle Range:
0-30 °
Standards:
IEC 60065 / 1998-07 Clause 19.1, IEC 60335-1 / 1991-04 Clause 20.1, IEC 60601-1 /1988 Clause 24.1, IEC 60950 / 1991 + Amendments, Modified, Clause 4.1. 1, EN 60335-1 / 1994 And A11 / 1995 Clause 20.1,
Highlight:
sharp edge tester
,flame test chamber
Product Description

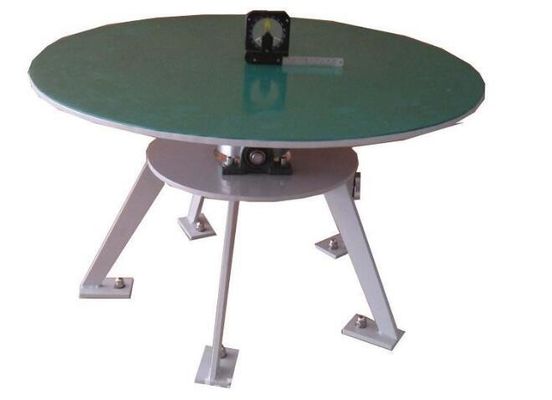

1000mm 800mm 600mm Electronic Testing Equipment IEC60335 Stability Test Bench
Standards:
It is to determine the stability of electric appliances which are used on a table or on the floor In accordance with IEC 60065 / 1998-07 clause 19.1, IEC 60335-1 / 1991-04 clause 20.1, IEC 60601-1 /1988 clause 24.1, IEC 60950 / 1991 + Amendments, modified, clause 4.1. 1, EN 60335-1 / 1994 and A11 / 1995 clause 20.1, EN 60950 / 1992 + Amendments up to 1997 clause 4.1. 1, VDE 0700 Part 1 / 10.95 clause 20.1 and Part 3 / 3.96 clause 20.1, VDE 0730 Part 1 / 3.72 clause 20a, VDE 0805 / 11.97 clause 4.1. 1.
Applications:
Stability Test Bench is used to test the stability of an apparatus that requires a surface in order to work. The device cosist of a surface and an angle adjusting device with 0- 15 °.
| Types | Surface Diameter | Angle Range | Bearing Capacity | Rotate Way |
| 3 | 1000mm | 0-30 ° | 125KG | hand-actuated/dynamoelectric |
| 2 | 800mm | 0-30 ° | 80KG | hand-actuated/dynamoelectric |
| 1 | 600mm | 0-45° | 50KG | hand-actuated |
