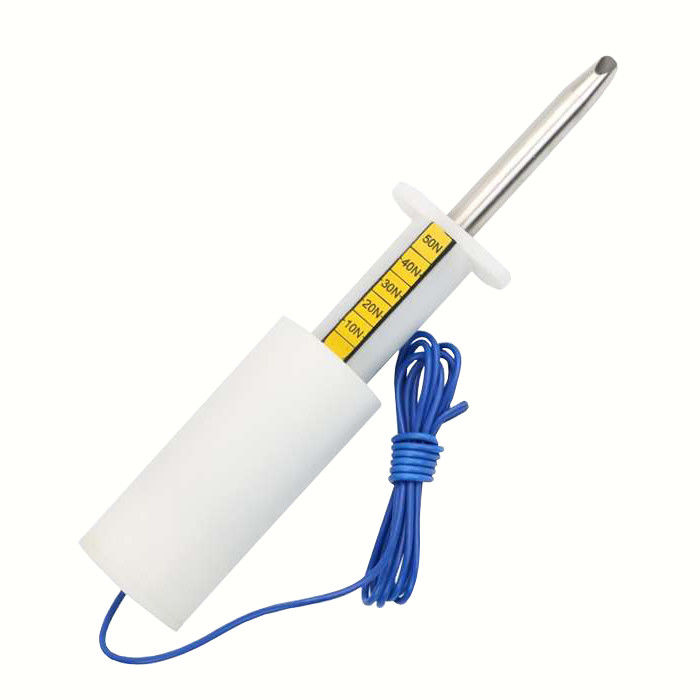

Iec 61032 Test Ul Finger Probe 11 For Unjointed Test Finger

Name: Iec 61032 Test Ul Finger Probe 11 For Unjointed Test Finger
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P11
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-P11

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

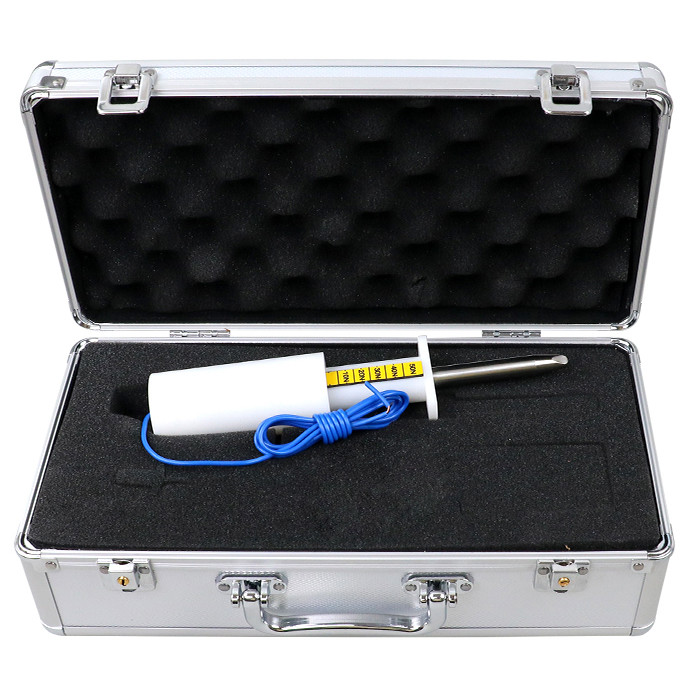

Packaging Details: Export Packaging

Delivery Time: 7 Working Days

Payment Terms: T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                iec 61032 ul finger probe, nylon stainless steel ul finger probe


Materials:	Nylon Stainless Steel	Nodular Finger Length:	80mm
Nodular Finger Diameter:	12mm	Dam-board Diameter:	50mm
Dam-board Thickness:	5mm	Standard:	IEC61032-Probe 11-Figure 7

Materials:	Nylon Stainless Steel
Nodular Finger Length:	80mm
Nodular Finger Diameter:	12mm
Dam-board Diameter:	50mm
Dam-board Thickness:	5mm
Standard:	IEC61032-Probe 11-Figure 7

Product Description

Complies with IEC61032 Figure 7 Test Rig 11, GB/T16842 Test Probe 11, GB8898, IEC60065, IEC60598, GB7000, IEC60335, GB4706 and other standard requirements. It can also be used to test the mechanical strength of the holes in the housing or the internal baffle of the housing.

Can be ordered with 10~50N thrust.

Can be ordered with 10~75N thrust.

Test Finger Usage

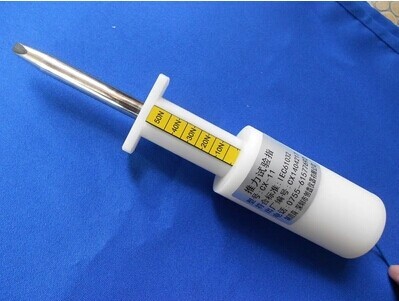

1. As shown in the figure, the finger portion of the thrust test finger cannot touch the energized parts or cannot approach the dangerous parts, and the 50mm-20mm stopper cannot be entered.

2. In the test requirements for preventing access to dangerous parts, the thrust test finger needs to apply thrust.

Iec 61032 Test Ul Finger Probe 11 For Unjointed Test Finger 0

Technical Parameters

Materials	Nylon+Stainless Steel
Nodular Finger Length	80mm
Nodular Finger Diameter	12mm
Dam-board Diameter	50mm
Dam-board Thickness	5mm
Standard	IEC61032 Figure 7
