Toys / Computers Electronic Testing Equipment UL Sharp Edge Tester UL1439

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-S12U
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details Carton case
Delivery Time 5 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
SKYLINE: UL Sharp Edge Tester Roller Dia: 136mm
Roller Width: 80mm Power: AC220V 90W
Dimensions: (W×D×H)45*55*57cm Standards: UL1439
Highlight:

electronic testing machine

,

flame test chamber

,

Electronic Testing Equipment UL1439
Product Description

Toys / Computers Electronic Testing Equipment UL Sharp Edge Tester UL1439



Introductions

This sharp edge tester is made as per standard UL1439 and it is used for testing the products of electrical equipment including toys, computers, daily home electrical equipment and see whether these equipments has sharp edges which will harm people. It is a equipment of safety testing.


Specifications

 Size  184×35×52 mm
 Weight  132 g

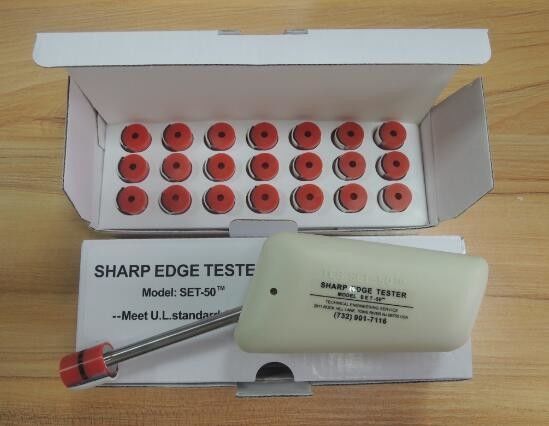

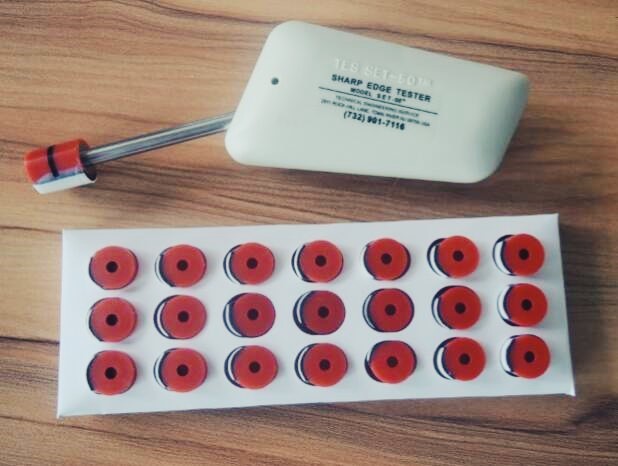

 Optional Accessories
 Two boxes standard testing heads



Way to use

1. Put the pressure testing cap on the tester

2. Put the pressure testing cap closes to the tested edge and move the cap along the tested edge for 2 inches with a 0.68kg force, then return to the starting point. The whole distance will be 4 inches

3. After the movement, check the pressure testing cap. If the outermost 2 layers(the simulative skin) have been scratched off, the edge is considered as the sharp edge.



UL Sharp Edge Tester.pdf
