IEC61058-1 Switch Endurance Test Device For Testing Button Switch / Rocker Switch

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number Switch Endurance Test Device
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
Standards: IEC60695 -11-5、GB/T5169.5-2008、GB4706.1-2005 Nner Hole Diameter: Nner Hole Diameter Φ 0.5mm ± 0.1mm, Diameter ≤Φ 0.9mm，Length ≥ 35mm
Burner Angle: 0- 45°(any Adjustment) Power: 800VA ,220V, 48-60Hz
Chamber: ≥0.5m3 Item No.: SL-SE03
Highlight:

IEC61058-1 Switch Endurance Test Device

,

Button Switch Endurance Test Device

,

Rocker Switch Endurance Test Device
Product Description

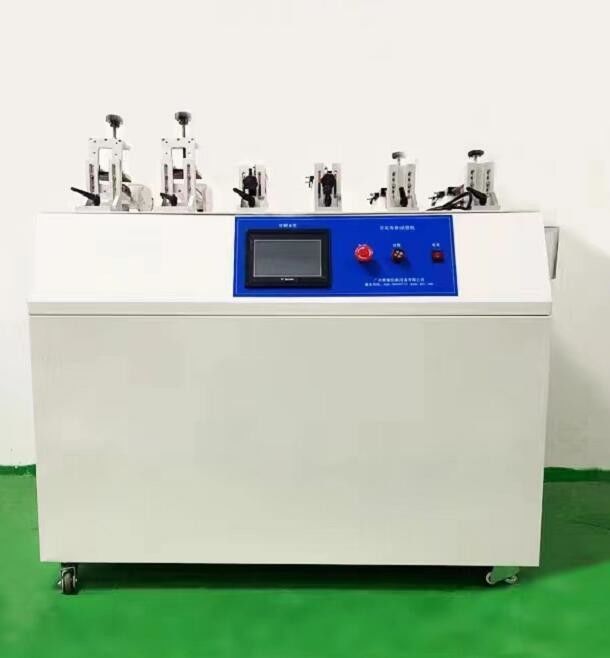

IEC61058-1 Switch Endurance Test Device For Testing Button Switch/Rocker Switch

IEC61058-1 Switch Endurance Test Device for Testing Button Switch



Introductions

Suitable forpotentiometers, multi-turn potentiometer , adjustable rotating band switch lifetest capacitors and the like of the sample.


Application
Suitable forpotentiometers, multi-turn potentiometer , adjustable rotating band switch lifetest capacitors and the like of the sample.



Technical parameter

Conforms To
IEC61058-1 clause 17.2.3 and 17.2.4
17.2.3 Manual and mechanical conditions
17.2.3.1 The switches are operated by means of its actuating member either manually or by an appropriate apparatus which is arranged to simulate nonThe operating speed for the operating cycles shall be as follows:
For the tests of switches except electronic switches:
a) for slow speed:
- approximately 9°/s for rotary actuations at an angle of operation 45°;
- approximately 18°/s for rotary actuations at an angle of operation >45°;
- approximately 20 mm/s for linear actuations.




Standard

IEC61058-1 clause 17.2.3 and 17.2.4

Suit for below switches

Push Switch
Refrigerator
Cabinet Switch
Rotary Switch
Rocker Switch
Push Button
Switch
Potentiometer
