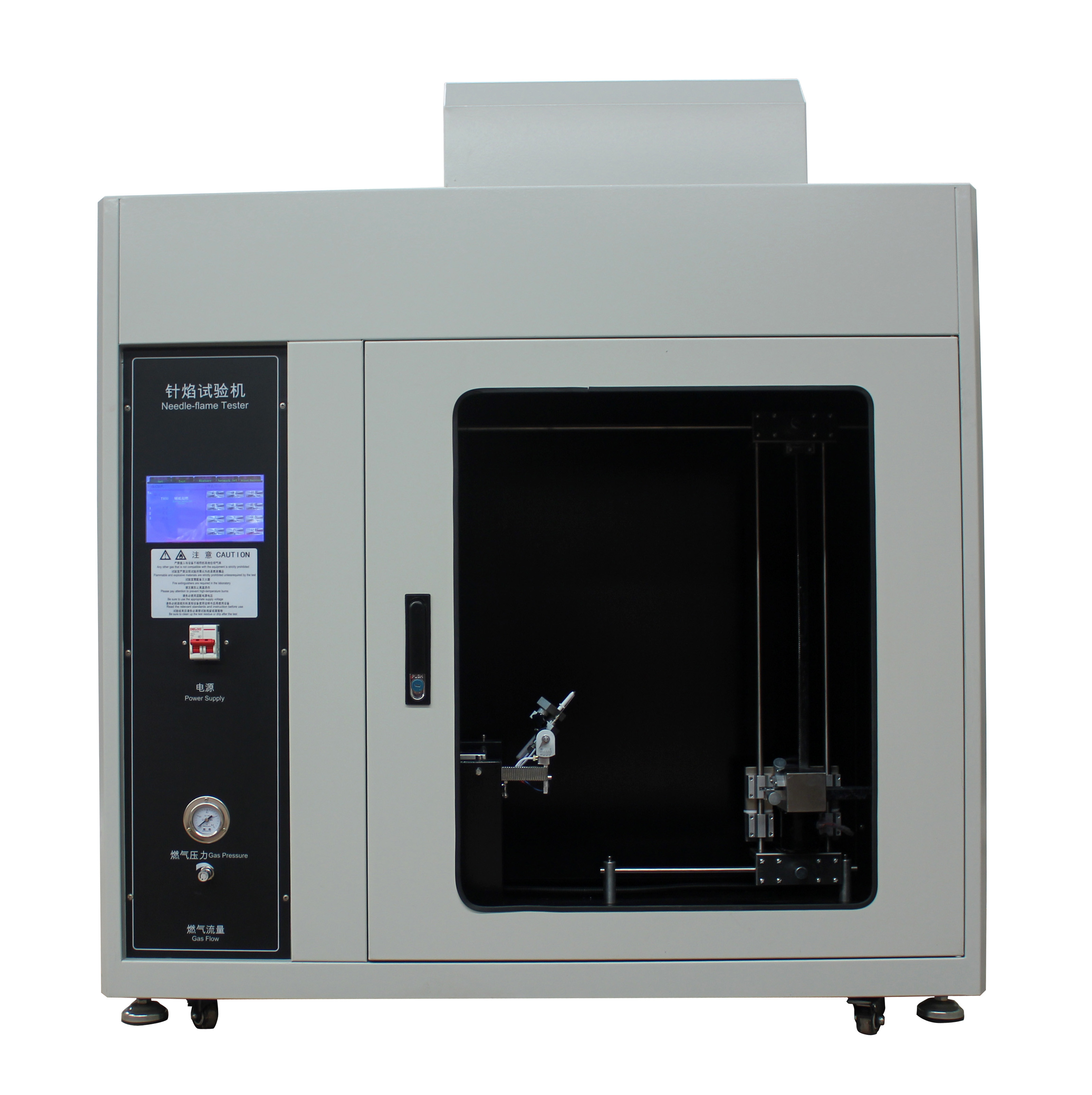

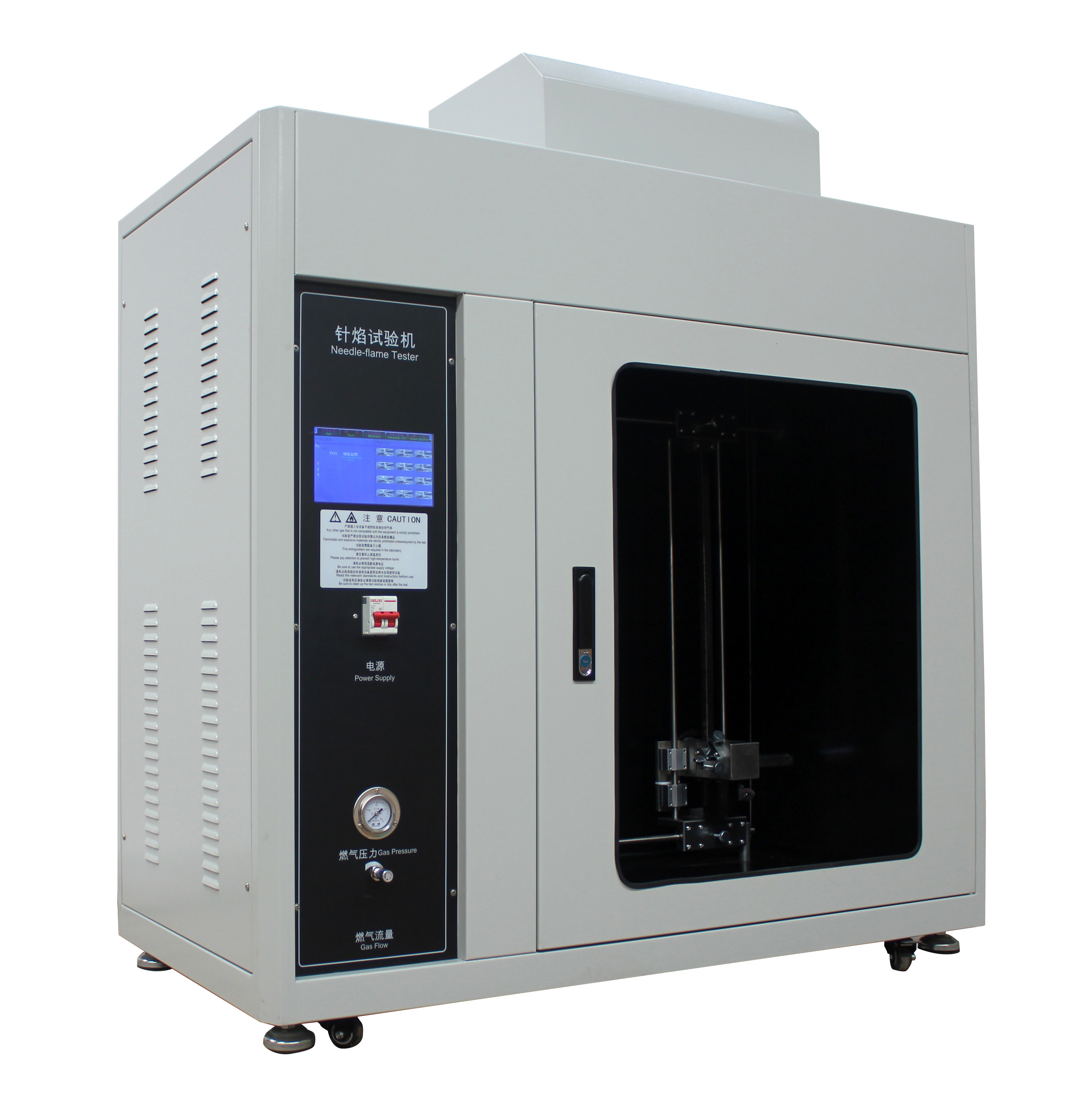

IEC60695 Flammability Testing Chamber For Electronic Product

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-SE03
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
Standards: IEC60695 -11-5、GB/T5169.5-2008、GB4706.1-2005 Nner Hole Diameter: Nner Hole Diameter Φ 0.5mm ± 0.1mm, Diameter ≤Φ 0.9mm，Length ≥ 35mm
Burner Angle: 0- 45°(any Adjustment) Power: 800VA ,220V, 48-60Hz
Chamber: ≥0.5m3 Item No.: SL-SE03
Highlight:

Electronic Product Needle Flame Test Apparatus

,

IEC60695 Flammability Testing Chamber

,

Electronic Product Needle Flame Test Chamber
Product Description

IEC60695 Flammability Testing Chamber/ Needle Flame Test Apparatus/ Combustion Tester

Electronic Product Flame Test Apparatus , IEC 60695 Needle Flame Test Chamber



Introductions

Needle Flame Test Chamber is used to test the resistance of fire caused by an interior fault such as leakage current in cable & wire and the like. It meets the requirements of Chinese GB4706.1, GB5169.5, and IEC60695-2-2 and IEC61347-1 standards.


Application
Electrical & electronic product
Components and accessories of household appliances


Features

a. All stainless steel and brass constructions.
b. Burner can be ignited automatically.
c. Temperature and test time display by digital meters.
d. A big window in the door makes your viewing more convenient.



Technical parameter

 Needle burner

 inner hole diameter Φ 0.5mm ± 0.1mm, Diameter,≤Φ 0.9mm,

length ≥ 35mm, stainless steel
 Burner angle  0~45° (adjust flame height)
 Thermocouple

 Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand

temperature-40°C~ 1100°C
 Burning time  0-999.9 s ± 0.1 s adjustable (usually selected for 30s)
 Hold Burning time  0-999.9 s ± 0.1 s, automatic recording, manual time-out
 Flame Height  12mm ± 1mm (with height measurement instruments)
 Flame Gas  butane gas/Butane gas, min. 95% purity (can use bottled lighter gases)
 Temperature Test Range  0~1000°C
 Flame Temperature Requirements  from 100 °C ± 2 °C liters to 700 °C ± 3 °C time in 23.5 seconds ± 1 seconds
 Standard Copper Block  4mm±0.01mm, weight.0.58g±0.01g before drilling. Cu-ETP
 Test process  automatic control, independent convulsions
 Chamber  ≥0.5m3
 Control  Using single chip microcomputer + touch screen control
 Consult standard  GB/T5169.10-2006 , IEC60695-11-5:2000,UL746A
 Power Supply  800VA ,220V, 48-60Hz
 Display panel language  English(customize available)

What is a needle flame?

The needle-flame test is used for the assessment of fire hazard caused by small flames, which may result by ignition of a failing component of electric equipment. Summary of test method: The test specimen is arranged in a vertical position. ... The specimen is subjected to a 12 mm flame (Propane, at least 95% pure).
