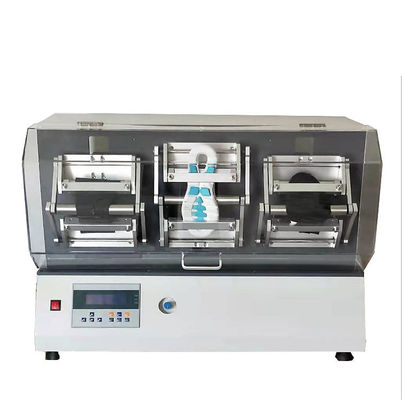

AC220V 5A SATRA TM161 EN20344 Sole Flexing Tester
| MOQ: | 1 unit |
| Price: | negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 3 |
SATRA TM161 Sole Flexing Tester
,EN20344 Sole Flexing Tester
,AC220V 5A Footwear Testing Equipment
Footwear Testing Equipment SATRA TM161 Sole Flexing Testing Machine
Instrument introduction
Install the sole test piece on the EN Flexing testing machine, so that the incision falls just above the center of the rotating shaft of the EN Flexing testing machine, and the EN Flexing testing machine drives the test piece to stretch (90±2)º on the shaft to bend, After a certain number of tests, the length of the incision of the test piece is measured, and the torsion resistance of the test sole is evaluated by the growth rate of the incision.
Reference standard
Comply with: GB/T20991, GB21148, SATRA TM161, EN20344, ISO-17707, EN344 standard.
Technical Specifications
1. Three outsole can be measured at the same time
2. Bending angle: (90±2)º
3. Speed: (5 to 150) r/min adjustable
4. Diameter of zigzag shaft: 30mm
5. Volume; (83x44x62) cm
6. Weight: about 115kg
7. Power: frequency conversion 400w
8. Power supply: AC220V, 5A
