Home > products > Footwear Testing Equipment > AC220V 5A SATRA TM161 EN20344 Sole Flexing Tester

AC220V 5A SATRA TM161 EN20344 Sole Flexing Tester

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 3

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                SATRA TM161 Sole Flexing Tester, EN20344 Sole Flexing Tester, AC220V 5A Footwear Testing Equipment


SKYLINE:	Sole Flexing Testing Machine	Bending Angle:	(90±2)º
Diameter Of Zigzag Shaft:	30mm	Volume:	(83x44x62) Cm
Weight:	About 115kg	Power Supply:	AC220V, 5A

SKYLINE:	Sole Flexing Testing Machine
Bending Angle:	(90±2)º
Diameter Of Zigzag Shaft:	30mm
Volume:	(83x44x62) Cm
Weight:	About 115kg
Power Supply:	AC220V, 5A

Product Description

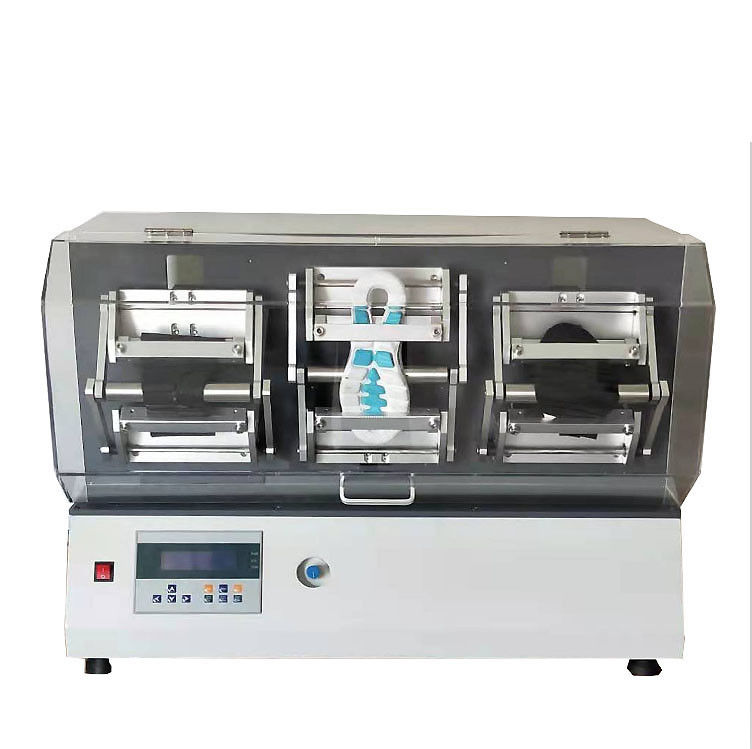

Footwear Testing Equipment SATRA TM161 Sole Flexing Testing Machine

Instrument introduction

Install the sole test piece on the EN Flexing testing machine, so that the incision falls just above the center of the rotating shaft of the EN Flexing testing machine, and the EN Flexing testing machine drives the test piece to stretch (90±2)º on the shaft to bend, After a certain number of tests, the length of the incision of the test piece is measured, and the torsion resistance of the test sole is evaluated by the growth rate of the incision.

Reference standard

Comply with: GB/T20991, GB21148, SATRA TM161, EN20344, ISO-17707, EN344 standard.

Technical Specifications

1. Three outsole can be measured at the same time

2. Bending angle: (90±2)º

3. Speed: (5 to 150) r/min adjustable

4. Diameter of zigzag shaft: 30mm

5. Volume; (83x44x62) cm

6. Weight: about 115kg

7. Power: frequency conversion 400w

8. Power supply: AC220V, 5A
