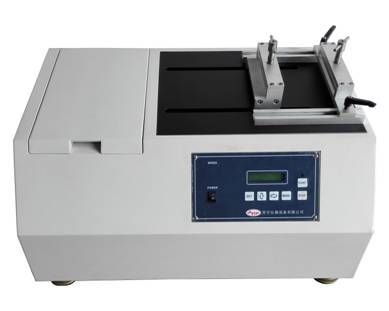

Durable Footwear Testing Equipment SATRA TM 103 Elastic Tape Fatigue Testing Machine
| MOQ: | 1 unit |
| Price: | Negoiated |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | MoneyGram, Western Union, MoneyGram, T/T |
| Supply Capacity: | 10 pcs/ month |
abrasion resistance tester
,rub resistance tester
Durable Footwear Testing Equipment SATRA TM 103 Elastic Tape Fatigue Testing Machine
Use
The instrument is designed for measure the extensibility and repeatability of elastic tape, cloth and other elastic materials under the maximum stretch.
Purpose
The instrument is designed for measuring the extensibility and repeatability of elastic tape, cloth and other elastic materials under the maximum stretch.
Principle
Using ecceantric wheel to conduct repeating movement that stretches the elastic material to the maximum extension. Periodically, check and inspect the condition of material. Stop the test when the specimen is suffered severe abrasion more than the expectation, or until the counter reaches a set value.
Key specification
| Speed | 65+/- 5 rpm |
| Stroke of movable grip | 0~200 mm |
| Grip width | 140mm |
| Timer | LCD Display 0~999,999 |
| Dimension (approx.)W*D*H | 65 x 44 x 41cm |
| Standards | SATRA TM103 |
SATRA TM 103 Elastic Tape Fatigue Testing Machine....
What is Satra testing?
SATRA is an independent research and testing organisation established in the UK in 1919. ... SATRA has its own chemicals analysis laboratory for testing restricted substances in accordance with UK and European REACH, and US chemicals regulations for which it is CPSC-accredited.
