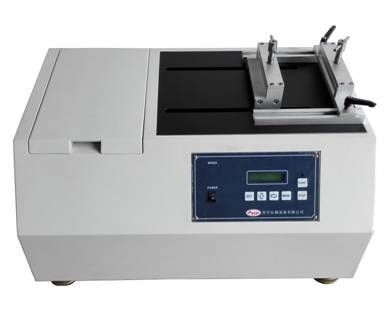

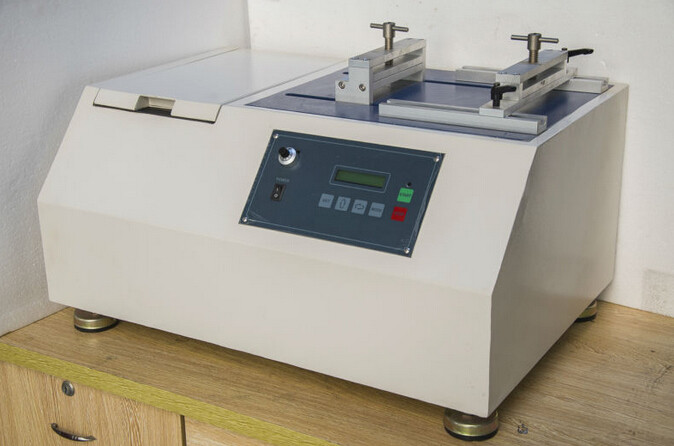

Durable Footwear Testing Equipment SATRA TM 103 Elastic Tape Fatigue Testing Machine

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-LC61
Minimum Order Quantity 1 unit
Price Negoiated
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms , Western Union, , T/T
Supply Ability 10 pcs/ month
Product Details
Item Name: Elastic Tape Fatigue Testing Machine Speed: 65+/- 5 Rpm
Stroke Of Movable Grip: 0~200 Mm Grip Width: 140mm
Dimension: 65 X 44 X 41cm Standard: SATRA TM103
Highlight:

abrasion resistance tester

,

rub resistance tester
Product Description

Durable Footwear Testing Equipment SATRA TM 103 Elastic Tape Fatigue Testing Machine



Use

The instrument is designed for measure the extensibility and repeatability of elastic tape, cloth and other elastic materials under the maximum stretch.



Purpose
The instrument is designed for measuring the extensibility and repeatability of elastic tape, cloth and other elastic materials under the maximum stretch.

Principle
Using ecceantric wheel to conduct repeating movement that stretches the elastic material to the maximum extension. Periodically, check and inspect the condition of material. Stop the test when the specimen is suffered severe abrasion more than the expectation, or until the counter reaches a set value.



Key specification

 Speed  65+/- 5 rpm
 Stroke of movable grip  0~200 mm
 Grip width  140mm
 Timer  LCD Display 0~999,999
 Dimension (approx.)W*D*H  65 x 44 x 41cm
 Standards  SATRA TM103



SATRA TM 103 Elastic Tape Fatigue Testing Machine....



Durable Footwear Testing Equipment SATRA TM 103 Elastic Tape Fatigue Testing Machine



What is Satra testing?
SATRA is an independent research and testing organisation established in the UK in 1919. ... SATRA has its own chemicals analysis laboratory for testing restricted substances in accordance with UK and European REACH, and US chemicals regulations for which it is CPSC-accredited.
