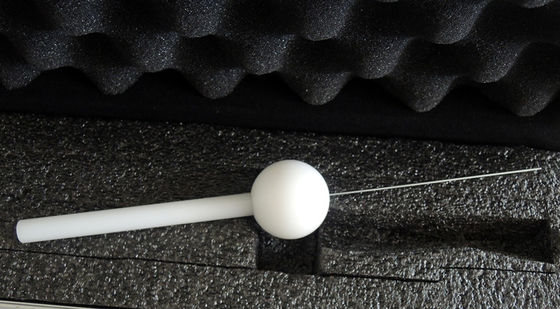

Electronic Testing Equipment IEC61032 Standard 1mm x 100mm Test Prode
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 5 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
sharp edge tester
,electronic testing machine
1mm x 100mm Test Prode
Overview
The test tool C probe is made according to GB4706.1, IEC61032 test tool C, GB/T16842 test tool C, IEC60529IP3X, GB4208IP3X, IEC60065, IEC60884, Figure 35, UL and other standards. It is used to test the test piece to prevent human body from touching dangerous parts. Also used to prevent protection checks from hand tools.
Parameters
| Serial number | Technical requirements |
| ① | 1Φ1 +0.05 |
| ② | 100±0.2 |
| ③ | S φ 35±0.2 |
| ④ | Φ 10 |
| ⑤ | approx1 00 |
Instructions
Apply a force of 3 ± 0.3N to the lamp or the casing of the household appliance to see if it can enter.
If the test finger itself has thrust (model ZLT-I03T), when it is inserted into the test position, push the handle to the position indicated by the scale, that is, achieve a thrust of 3N±0.3N, depending on the direction of application. Thrusts of "up", "horizontal", and "down" can be achieved. If the test finger does not have a thrust force itself, the thrust test can be achieved by using a push-pull force gauge connected to the tail M6 thread of the test finger.
It is worth noting that different types of test products, test probes will be used differently, so please read the relevant standards before use, and test according to the requirements of the standard.
Precautions
The metal part of the test probe is hard steel. Pay attention to rust prevention and careful use. It is easy to be damaged or rusted after collision and the size is accurate. Therefore, after each test, please apply anti-rust oil and take care of it.
